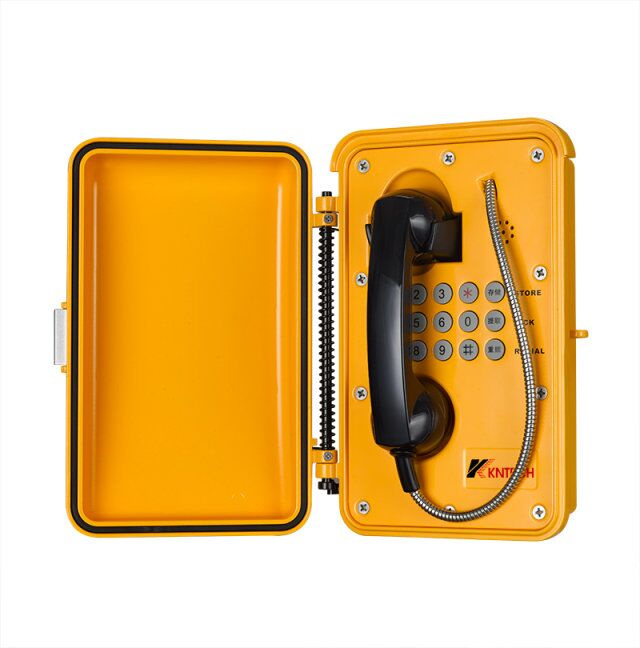

IP Telephone with full keypad support IP66 Weatherproof Telephone
Ms. Miki Mo
M: +86 135 3042 8923
Specifications
Robust aluminium alloy Industrial telephone KNSP-01 weatherproof phone Manufacturer
IP PoE/Anglog version
Vandal resistant
Made of industrial environments that need an intercom telephone which can with stand rough usage & treatment.
Specifications
The Weatherproof phone will be designed to work on Railway, metro, tunnel,etc. Housed in robust aluminium die case with spring loaded door, it will offer protection against the outdoor environment,vandals resistance and rot resistance.
The unit will meet all the latest European/UK standards for EMC and US FCC, telephony,
waterproofing IP66, and lightening protection together with offering the level of performance and reliability demanded in such an environment.
DTMF(Dual Tone Multi Frequency)
Standard and SMART Analogue and VoIP-SIP options available
Matching with most PABX,PBX and PAX systems.
| Technical parameter |
| Ambient temperature | -30~+60°C |
| Defend grade | IP66 |
| Relative humidity | 10%--95% |
| Atmospheric pressure | 86~106KPa |
| Circumstance noise | less than 60dB(A) |
| Sound level of ringing | >70dB(A) |
| Standard frequency | 697. 770. 852. 941Hz |
| Call transmission index | (5KM)SLR<12,RLR<-1,STMR>10, output impedance is 600 Ohm. |
Main Features
1. Robust aluminium alloy die-cast body
2. Full keypad with memory, 10 button programmable speed-dial telephone, Illuminated button optional
3. Door cover: orient automatically and good self - closing, convenient for use.
4. Weather resistant to IP67 standard, service temperature range from:-30' to +75'C
5. Magnetic reed hook-switch
6. Telephone line powered. No external power or battery back up required.
7. Lightening protection to ITU-T recommendation K.21
8. Handset: made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable optional,
9. Hearing Aid compatible receiver, Noise canceling microphone.
10. Handset integrity wiring to enable the telephone system to check if the telephone unit is still operational.
11. Vandal resistant and tamper-resistant hardware,
12. Easy installation/ replacement
