IP54 Waterproof Wall Mounting Enclosures Distribution Meter Boxes
| Price: |
US $ 11-19.5/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HiXT-BX01 |
| Mounting Type: |
Wall-Mounted, Pole-Mounted and DIN-Rail |
| Features: |
Excellent Insulation, Shockproof and Rust-Free |
| Type: |
Distribution Metering Box |
| Structure: |
Fixed Board |
| Shell Material: |
SMC |
| Shell Protection Grade: |
IP54 |
| Brand: |
Hifuture |
Product Description

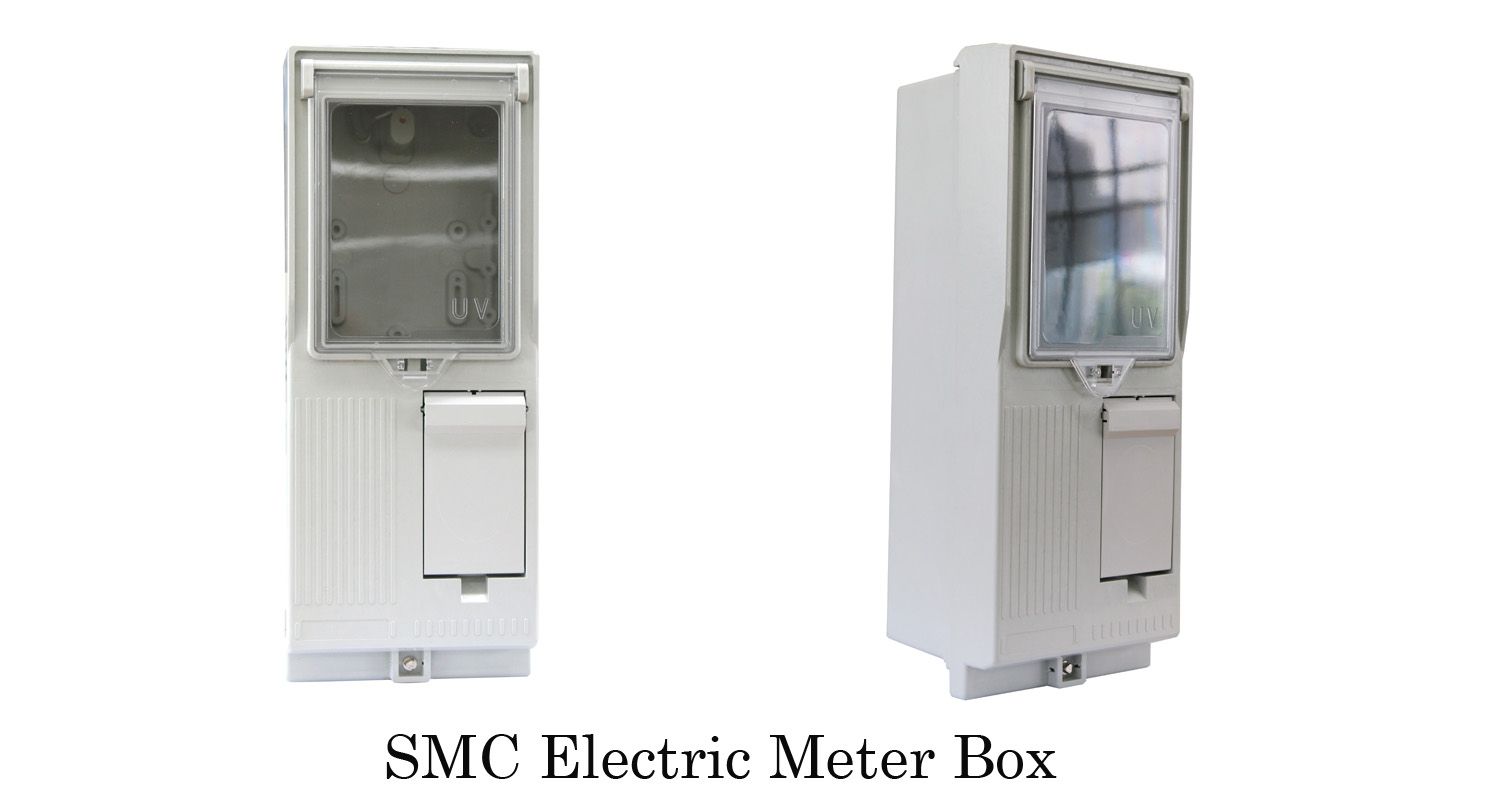

IP54 waterproof wall mounting enclosures distribution meter boxes Hifuture SMC Meter Box is an effectively protective solution with high mechanical
strength, weather-proof and enhanced anti-tamper properties.
Features:
1. Modular design; Excellent electrical insulation; Shockproof and rustproof
2. Mounting Type: Wall-mounted, Pole-mounted and DIN-rail
3. Electric Equipment: Single-phase
4. Including Fuse and Circuit-breaker/ CIU Breaker inside

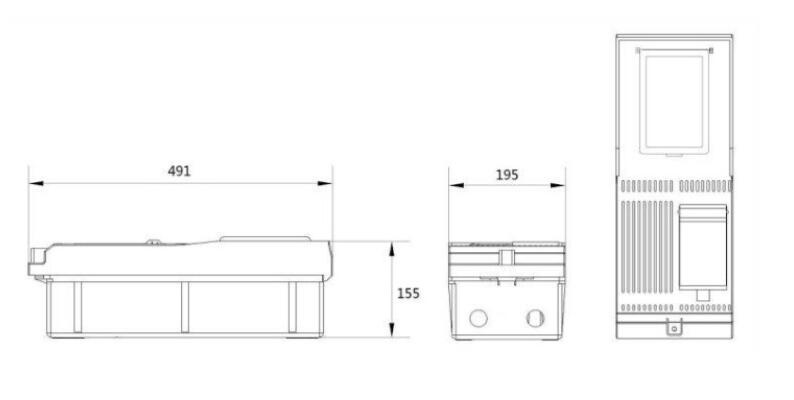

5. External Size: 195(width) * 491(height) * 155(depth)
6. Protection Level: IP54
7. Transparent window for consumption reading, separated operation window for MCB
Application:
Widely used in public power grid in the cable branch box, low voltage distribution box, pump control box,
communication cabinet, street lamp and traffic light control box, multi-function measuring box, integrated
distribution box, capacitor compensation box, terminal box, distribution box, measuring boxes and so on.

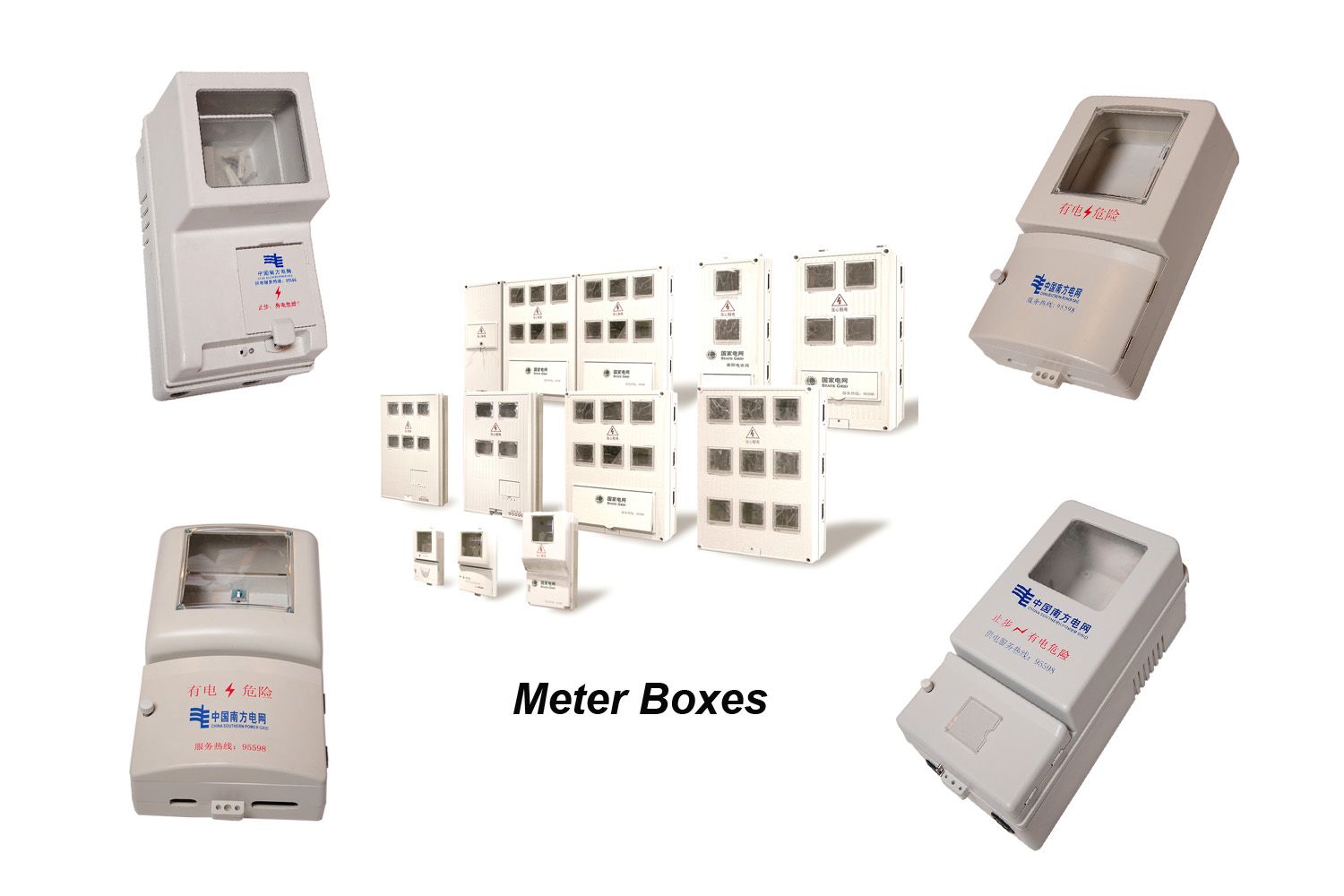

This item is very popular in North Africa and West Africa.Available Series:
One Meter Box
Two Meter Box
Three Meter Box
Four Meter Box
Six Meter Box
Nine Meter Box
Circuit Breaker Box
Customization available
SMC Material:
Sheet Molding Compound (SMC) is a ready to mould glass-fiber reinforced polyester material primarily used in compression molding. SMC is both a process and reinforced composite material. Typical applications include demanding electrical applications, corrosion resistant needs, structural components at low cost, automotive, and so on.
Material Properties:
1. Excellent insulating
2. Chemical corrosion resistance
3. Anti-aging
4. Excellent heat resistance
5. UV resistant
6. Excellent impact strenght, high rigidity
7. Flame- retardant and low smoke density
8. Light-weight : 1/3 light than metal
Technical Data:| Index | Unit | Index Data | Test Standard |
| Density | g/cm3 | 1.75-1.95 | GB/T 1033 |
| Hydroscopic Property | mg | <20 | JB 3961-1 |
| Heat Deflection Temperature | oC | 200-240 | JB 3961-A |
| Simple Beam Impulse Strength | KJ/m2 | 60-90 | GB 1043 |
| Bending Intensity | MPa | 150-180 | JB 3961-1 |
| Insulation Resistance (Normal) | Ω | >=1.0*1013 | GB 10064 |
| Insulation Resistance (Immersed for 24hs) | Ω | >=1.0*1012 | GB10064 |
| Flame Retardant | grade | FV0 | GB11020 |
| Gas Toxicity | grade | ZA1 | GA 132-1996 |
| Smoke Density | grade | 15 | GB/T 8627-1999 |

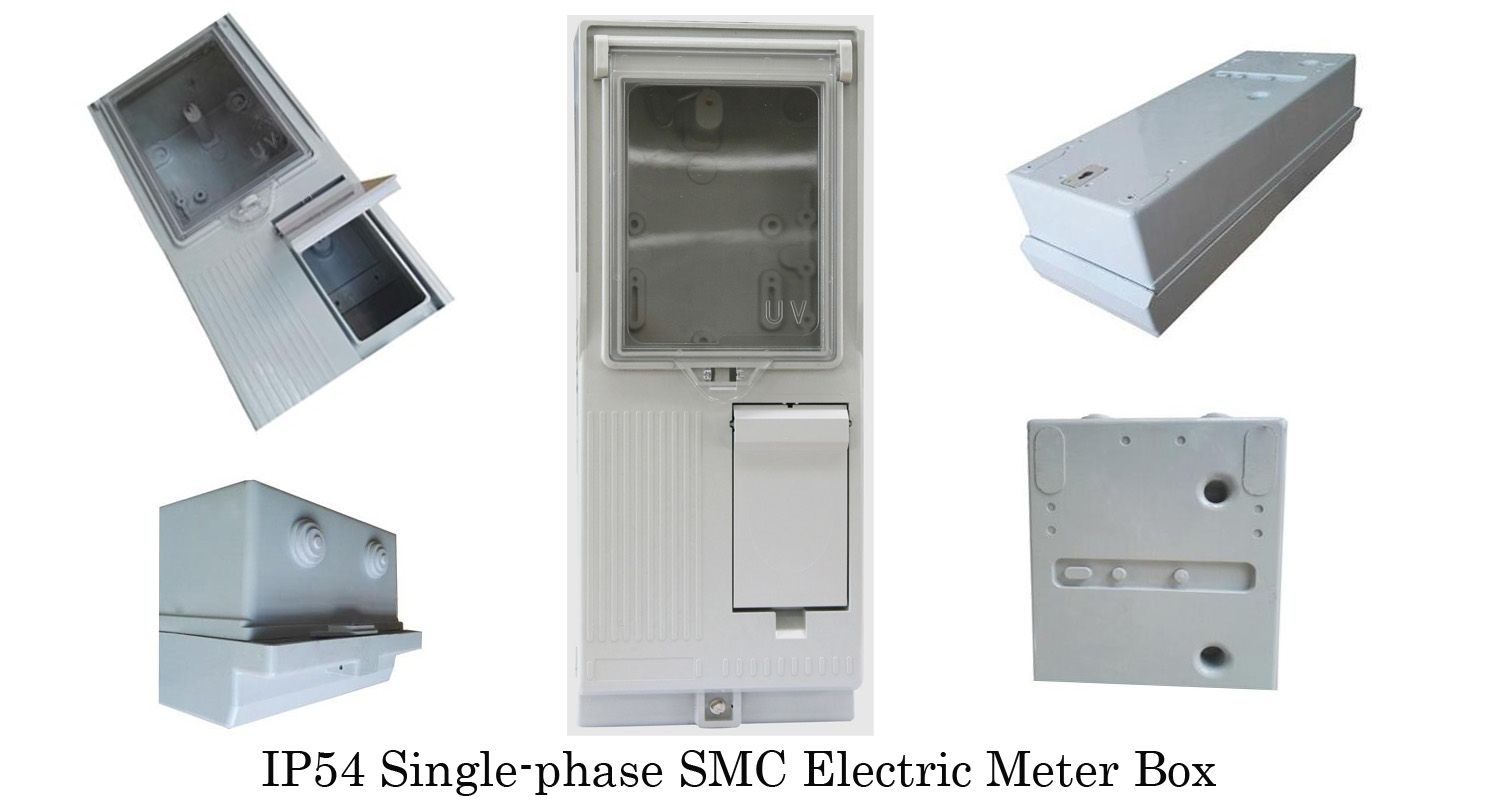

Products Show:
Shenzhen Hifuture Electric Co., Ltd. is committed to professional power distribution grid equipment and integrated solutions. Hifuture Electric comprises of three divisions: Electrical Insulating Material Division, MV & LV Equipment Division, and New Energy Division.
The Electrical Insulating Material Division, with its new macromolecule electrical insulation material technology, is specialized in silicone rubber material, APG products, and SMC material.
The division has developed a wide range of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.
Hifuture Electric is the earliest manufacturer in China of silicone rubber cable accessories. As early as in 2004, its Cable Connectors were already certified by KEMA. Today, Hifuture Electric is partner of the world's giants in the electric industry.
Its SMC products include Meter Box, Power Distribution Cabinet, modular combination type cabinets for Switchgear, Ring Main Unit, Compact Substation, Telecom cabinet, etc. Hifuture has its own mould processing center and is able to quickly design and develop new moulds for new products tailored to your requirements.
The MV & LV Equipment Division is mainly engaged in power Distribution Grid Equipment, including high-quality SF6 Gas-insulated Ring Main Unit, Low-voltage Switchgear, Power Distribution Switch/Control board, Cable Branching/Junction Cabinet, etc.
Hifuture Electric has been an approved supplier to the China State Grid and China Southern Power Grid.
Hifuture Solid Insulation Tubing Busbar is also manufactured in this division with TCE(Triple Co-Extrusion) technology. Hifuture is the pioneer in adopting TCE technology on Tubing Busbar. It has developed its own manufacturing equipment and is proud to have participated in setting the product standards.
The New Energy Division is a new business unit of Hifuture Electric. It started with Electric Vehicle Charging Equipment and is also ambitiously expanding into other new energy like PV Power. With its rich experience in Power Distribution Grid projects, Hifuture Electric provides customers with complete EPC service from MV/LV distribution up to the EV charging station. It has also developed its independent operating platform. Currently, it runs over 50 EV Charging stations on its platform system.
Hifuture Electric has devoted to overseas market since 2004. Its products and solutions have served over 500 cities and towns in China as well as some significant international events like the Beijing 2008 Olympics, Asian Games, World Expo, etc.
Since its establishment in 1999, Hifuture Electric has gained 95 national patents covering different product categories and was awarded "Shenzhen Hi-tech Enterprise" in 2001 and "National Hi-Tech Enterprise" in 2008.
