| Prod Model: |
G12 |
| Protection Level: |
General Type |
| Max. Current: |
16A 22A 26A |
| Max. Voltage: |
125/250VAC |
| Electrical Life: |
50,000 Cycles |
| Mechanical Life: |
10,000,000 Cycles |
| Terminal Type: |
Screw Teiminals Solder Terminals |
| Company Assurance System: |
ISO9001 & Ts16949 |
| Lever Type: |
Short Swing Lever |
| Circuit Code: |
Spdt Spst-Nc Spst-No |
| Size: |
Normal Size |
| Environment: |
≧250℃﹤400℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Pressing Type: |
Swing Lever |
| Protection: |
General Type |
| Application: |
Machine Tools ,Elevators , etc..... |
| Brand: |
Zing Ear |
| Certification: |
cUL ENEC CQC |
Product Description
Key Specifications/Special Features:
. Housing are Made of High Temperature Bakelite
. High Sensitive Differential Travel
. Precise Operation Repeatability
. Long Mechanical Life
. ENEC/UL/cUL/CQC Approved
Drawing & Picture & Parameters
Packaging & Delivery:
. Pack out : 1000pcs/ctn
. Gross weight : about 9.5/kgs per master carton
. Production lead time : 2-4 weeks against order issue
. Sample lead time : 2-5days
Parameters:
| Rating | 16A | ENEC/CQC
16A 125/250V or 480V 1/8HP 125VAC 1/4HP 250 VAC 0.5A 125VDC 0.25A 250VDC |
UL/cUL
16A 125/250VAC 5E4 u 40T85 |
| 22A | ENEC/CQC
22A 125/250V or 480V 1/4HP 125VAC 1/2HP 250 VAC 0.5A 125VDC 0.25A 250VDC |
UL/cUL
22A 125/250VAC 5E4 u 40T85 |
| 26A | ENEC/CQC
26A 125/250V or 480V 1/2HP 125VAC 1HP 250 VAC 0.5A 125VDC 0.25A 250VDC |
UL/cUL
26A 250VAC 5E4 u 40T85 |
| Operating Frequency | Electrical | 10-~30 cycles/minute |
| Mechanical | 240 cycles/minute |
| Contact Resitance (Initial Value) | 50mΩ Max |
Insulation Resistance
( at 500VDC) | 100MΩ Min |
| Dielectric Strength | between terminals | 1500 VAC 50/60Hz 1min |
| between terminals and housing | 2500 VAC 50/60Hz 1min |
| Storage Temperature | (-40ºC~ + 85ºC) |
| Storage Humidity | 85% RH max |
| Service Life | Electrical | 50,000~100,000cycles
(Depend on part number) |
| Mechanical | 1,000,000cycles |

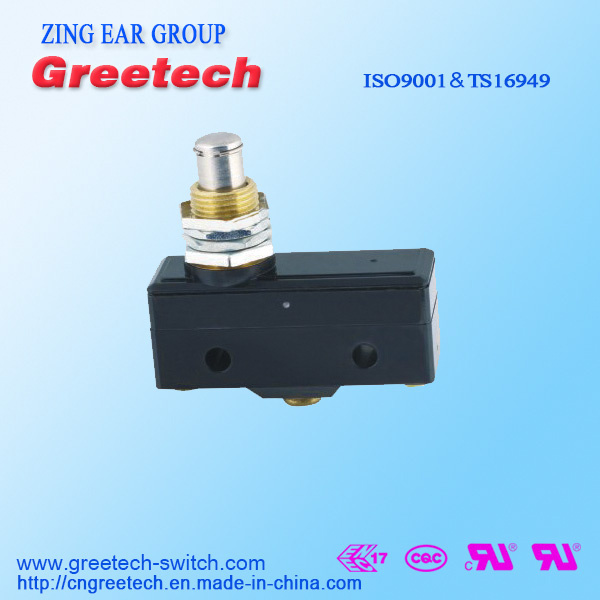

| Unit Net Weight | about 60g (Drip proof panel mounting type) |
| Trade Terms | 1.The price is based on FOB Shenzhen or Hongkong or EXW factory
2.MOQ:5000pcs
Payment:T/T payment,50% deposit before production, balance 50% before shipment |
| Certificates | ISO9001&TS16949
ENEC UL CUL &CQC
RoHS & Reach |
Company profile:
Packaging Details:
| NO. | Greetech Product | Inner Box | Shipper Carton | MPQ |
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) |
| (pcs) | (pcs) | (pcs) | (Days) |
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Application:
. Machine Tools
. Elevators
. Auto Production Line
. Civilian,Industrial Machinery Field
. Any Automation Applications in ADutomative Field
Greetech Advantages:
. ISO9001 & TS16949 qualified
. Most products are produced & tested by automatics
. Automatic machines are designed and assembled by our own team
. Awarded as National Innovative Technology Company
. Strong R&D team, authorized over 30 patents
. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Business Partners:
Trade Shows & Customers Visiting:
FAQ:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What's the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A: Yes, free samples could be provided within 2-5 days.
Q5, What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
Huizhou Greetech Electronics Co., Ltd. Which focuses on R&D and manufacturing of various micro switches, auto switches, waterproof switches, air pressure switches, mechanical keyboard switches, precise auto parts, mobile phone connectors, and various kinds of contact modules and terminal components. The annual output of switches & connectors is about 160 millions pieces.
GREETECH belongs to Zing Ear Group, and started to run independently since 2007 year. Now we have about 500 staffs working at about 10, 000 factory buildings. Our main engineers have professional R&D experiences in the lines of switches & connectors for 8 to 20 years. All of our products are safety approved by UL, cUL, ENEC & CQC. Our products are certified with ISO9001 and ISO/TS16949 quality assurance system. We have our own team to research and develop automatic assembly & testing equipments. Presently over 80% of our products are produced & tested by automatic equipments, aiming to ensure the consistency of quality.
Nowadays, Greetech set up a complete one-stop R&D and Production System including: Products & process R&D, precise tooling, molding injection, stamping and automation equipment R&D, finish goods assembly & testing.
Dedication, Passion, Integrity, Embracing Change, Team Cooperation, Customer First are our core values.
Serving our customers well, Developing our people for growth, Return on capital and Contribution to Society are always our mission.
Contace us today for more information.
