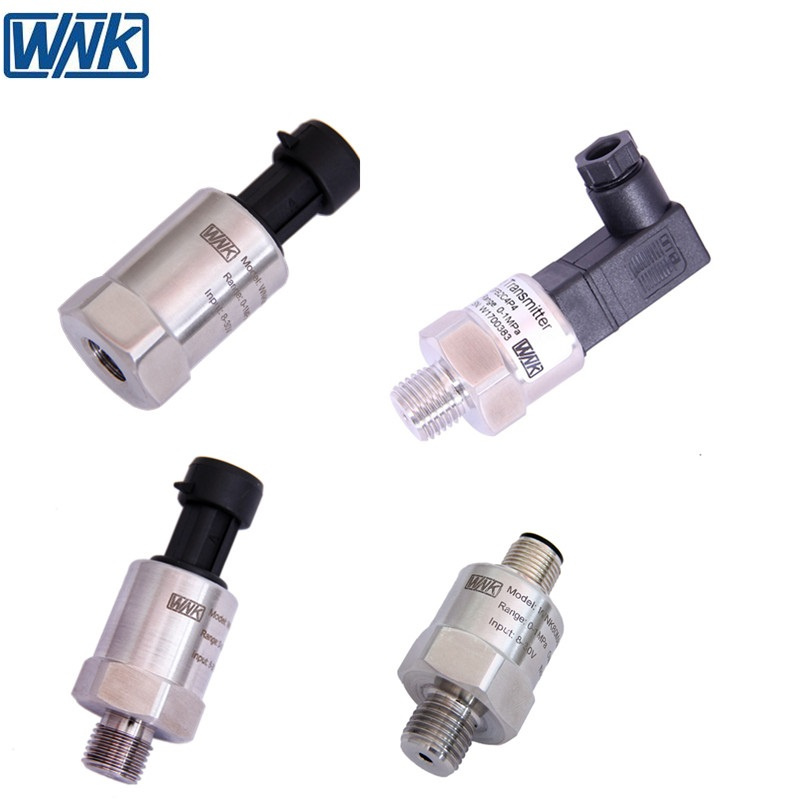

WNK80MA Gauge/Absolute/Sealing Pressure TransmitterWNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor or Ceramic Capacitivce sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stablyWNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Technical data| Applicable media | Liquid, Gas |
| Pressure range | 0-20kPa~350bar |
| Pressure measurment | Gauge Pressure, Absolute pressure, Sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V |
| Accuracy(linearity,Hysteresis and Repeatability) | 0.5%F.S.(Typical) |
| Power supply | 24VDC/12VDC/5VDC |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |

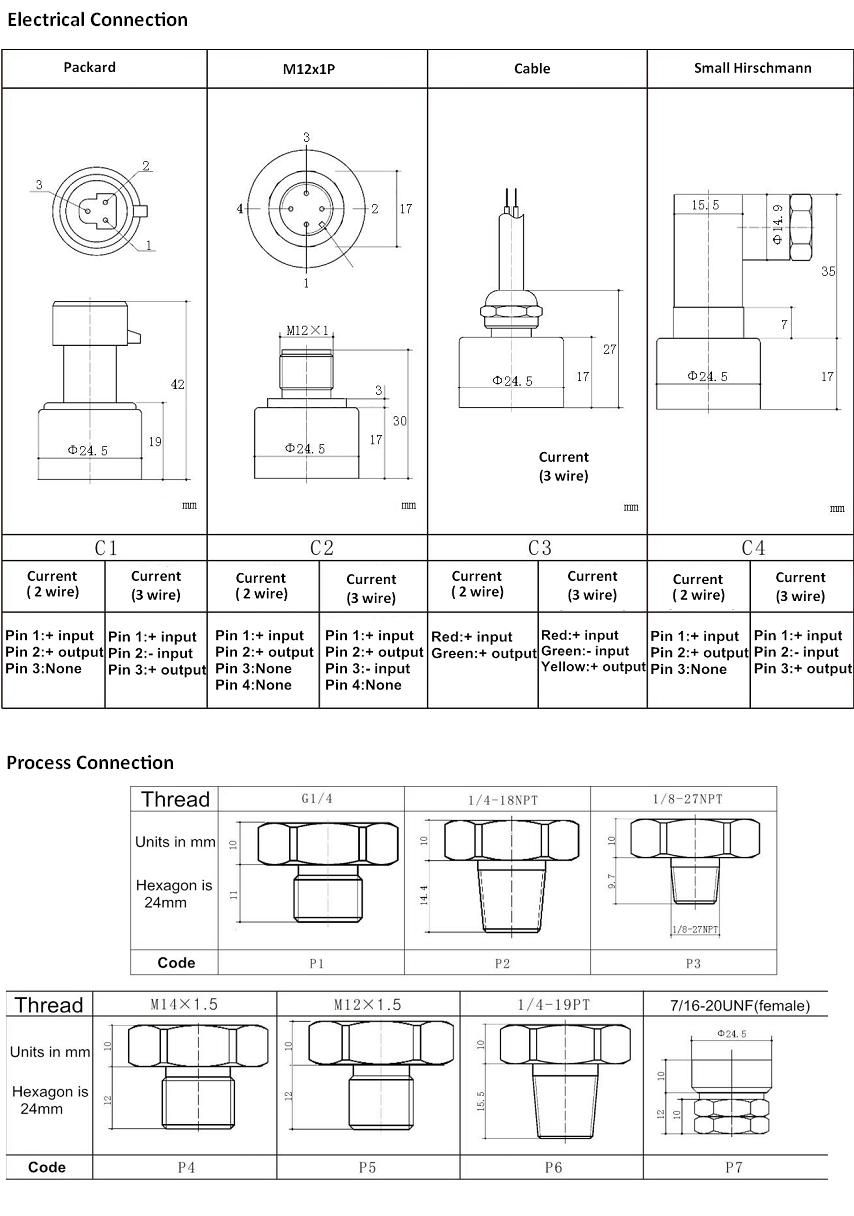

| power(electrical) connect | Park, DIN43650, M12, Cable Outlet, customization |
| Mechanical connection | G1/4, 1/8NPT,M12*1.5, customize |
| Housing material | 304 stainless steel(inner core is 316 stainless steel) |
| Protection | IP65 |
| Weight | 95g |
For more information, please contact us for product manual.Specification

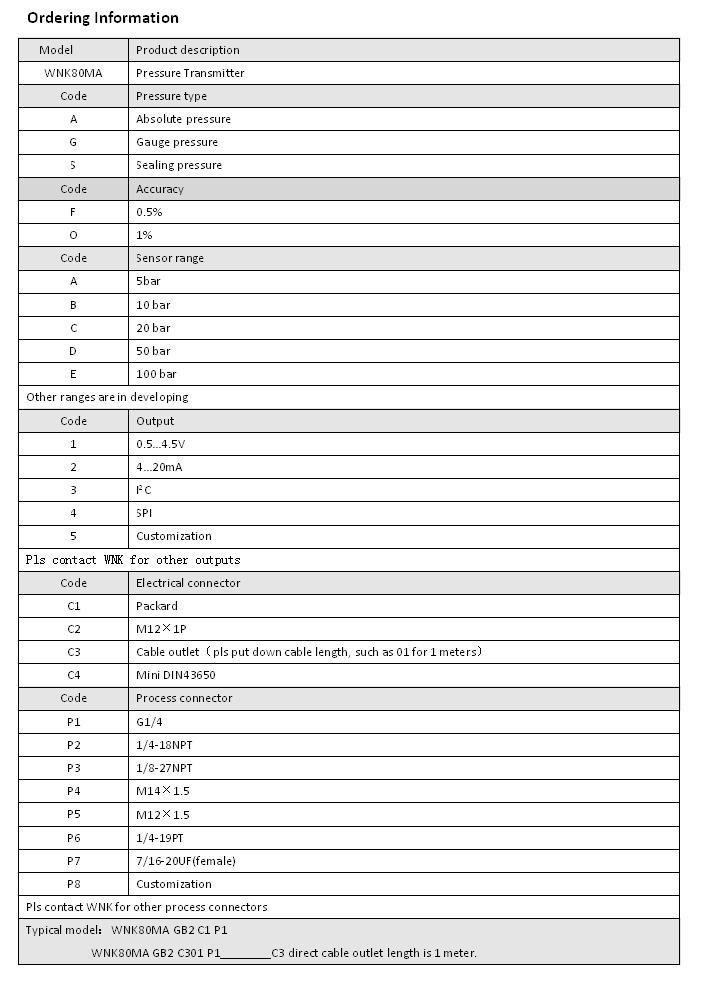

Ordering sheet
Why Choose us?
1. we are professional manufacturer in our field since 2004.
2. Our produce quality is guaranteed, since 100% of all products we do temperature compensation and aging test before shipment.
3. We provide 12 months warranty from shipment datea.
Delivery5~15 days after order confirmed
FAQQ: Are you manufacturer or trading company? A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.Q: What's your quality control system?A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.Q: What is the warranty of your products? A: 12 month from shipment date, for non-man-made damages. Q: Can we use our logo on the products? Do you provide customized products? Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcomeQ: What is yor MOQ?A: We have no MOQ limits, small quantity order is acceptable.Q: What's the transport? A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.Contact
