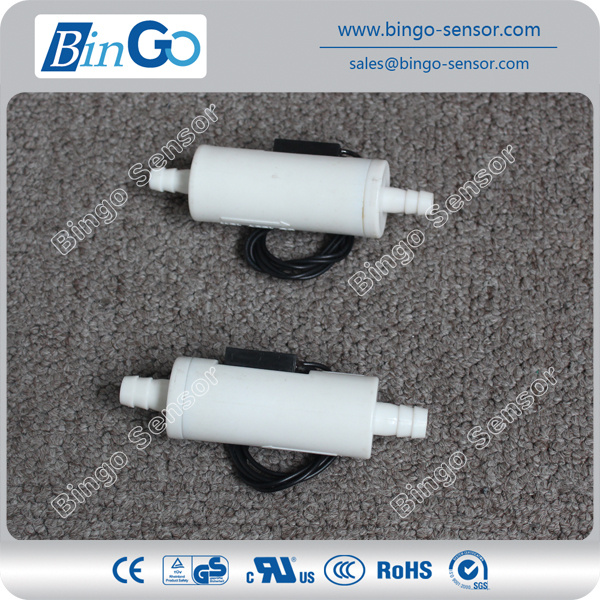

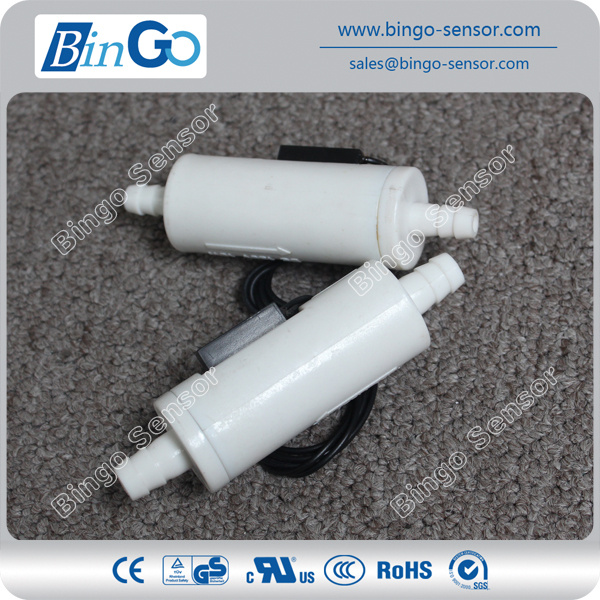

IP65 plastic adjustable reed type water flow switch FS-M-PSP01-Q08
Working principle

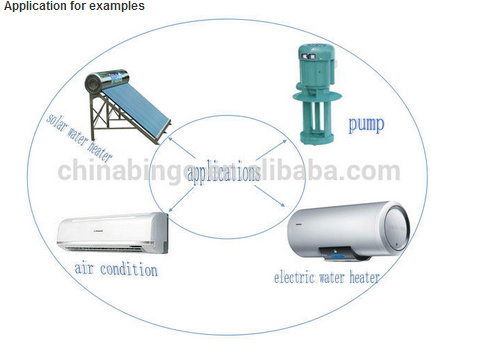

Piston type flow switch is composed of a column core, a reset spring, wrought copper or poly carbon shell and the sensor parts. The shell is POM plastic or stainless steel 316L, Core using neodymium iron boron permanent magnetic material, and sensor magnetic switch is power components. The interface of water inlet and the outlet is standard pipe thread, thread optional. Piston type flow switch is for electric water heater, solar water heaters, air conditioners and other water system of water circulation control, water control, water heating control, water pump switch control, electromagnetic valve on-off control or water power, water power control process. When reach a certain flow,it will transmit water flow into sensor parts of switch signal.
2.Technical Parameter:| Model | FS-M-PSP01-Q08 |
| Rated Voltage | 200V/250VAC |
| Max.Current | 1A |
| Material | Nylon+Glass fiber |
| Max.Using Temperature | 100C |
| Protection Degree | IP65 |
| Working Pressure(Max) | 1.5Mpa |
| Flow rate | 0.6-8L/min |
| Connection | Dia 8MM |
| Contact form | SPST NO |
| Medium | Clear water and None agressive fluid |
3. How to pay and how to delivery?PayPal, WESTERN UNION, Maestro, MoneyGram, VISA
UPS, FedEx, TNT, DHL, EMS4. Packaging: 1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.For an example:
Our service1. Delivery time is 5~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
After-sales service
1.1~2years warranty for most of our products;
2.We will arrange delivery of the goods on time:
3.Within the warranty period, we will bear all the qulity problem of our produts;
4.Beyond the warranty period, we will despatch the replacement parts to help fix the products;
5.Without any problem, we will gain the feedbacks of our products to help improve better products.

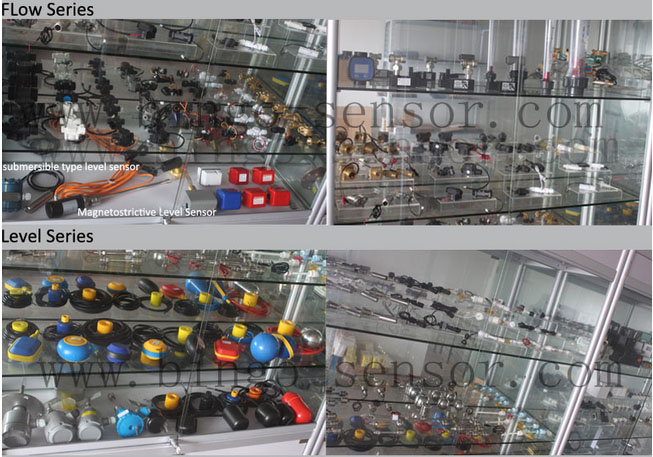

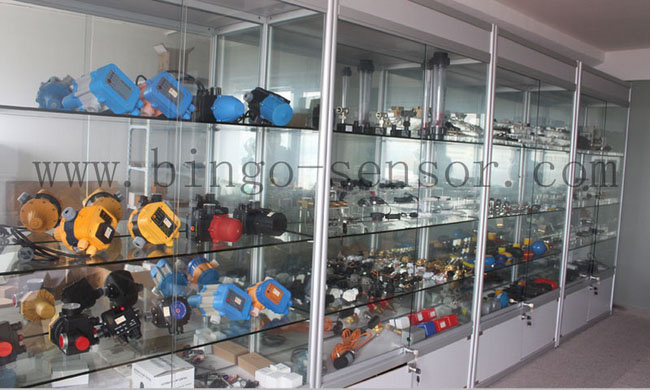

Product show room
