| Prod Model: |
GT903-C2H6O |
| N.W: |
0.35kg |
| G.W: |
0.7kg |
| Screen Size: |
2.4 Inch LCD HD Color Screen |
| Explosion Proof Sign: |
Exdll CT4 (Ia) |
| IP Rating: |
IP 66 |
| Power: |
4000mA High Capacity Polymer Rechargeable Battery |
| Storage: |
Large Data Logger(100,000 Groups) |
| Sampling: |
Pumping,Build-in Pump |
| Alarm Type: |
Sound and Light Alarm |
| Case Material: |
ABC+PC |
| Gas: |
C2h6o |
| Type: |
Semiconductor |
Product Description

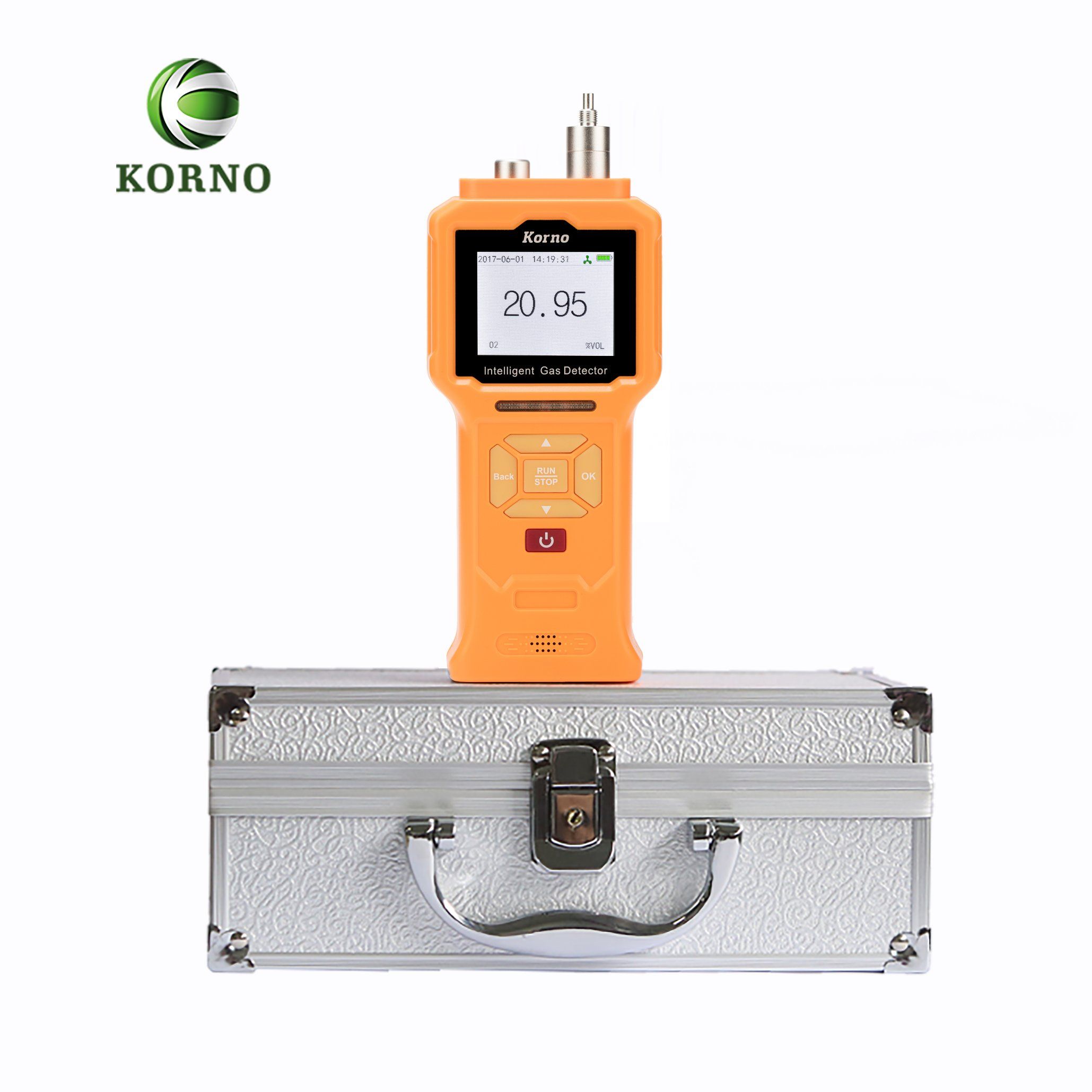

IP66 Ethanol Semiconductor Gas Detector(C2H6O)
GT903-C2H6O
>>> DescriptionThe GT-903 is the basic model of portable instruments. It can be a single gas detector or 4-gases detector for LEL,O2,H2S&CO,and temperature and relative humidity detection function is also available if you need.

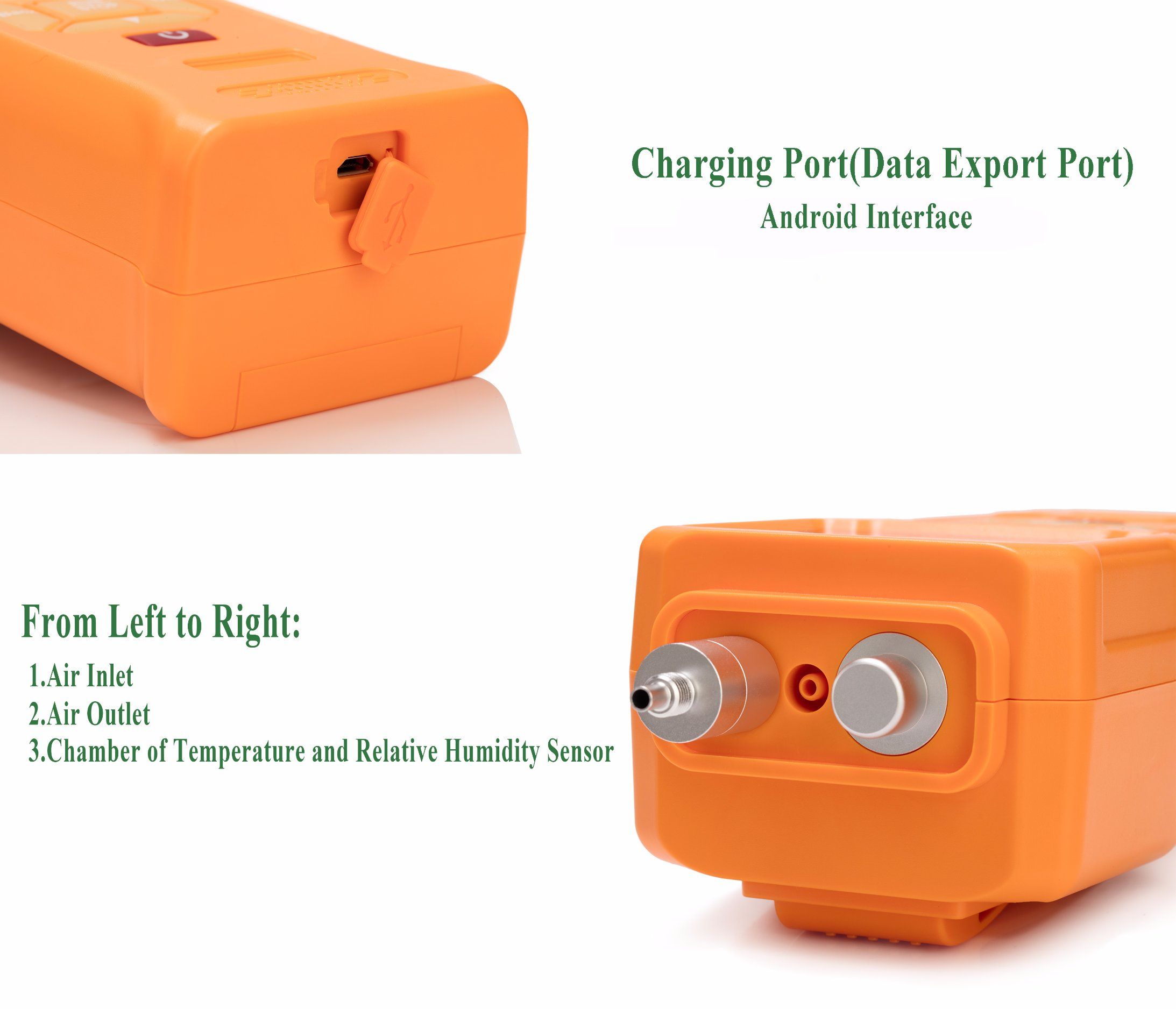

Gas concentrations and history data can be displayed in the 2.4 inches LCD HD color screen, user can read all information at a glance . It can also export history data to computer via USB port so that the users can view in a EXCEL format or graph format.>>> Features- Can be single gas detector or 4-gases detector(LEL & H2S & O2 & CO)
- Three concentration units are available:PPM,%VOL,mg/m3.
- Up to 100,000 group data can be storage
- Temperature and humidity detect function is available.
- Four operation modes are optional:Detection mode,Storage mode,Display mode,Pumping mode.
- STEL&TWA readouts
- All software automatic calibration, each kind of sensor can calibrate up to 6 target concentration
values - Chinese and English operation model are available,user-friendly.
- Can be exported to the computer to view historical data in a graph format or EXCEL format
>>> Product Specifications | Product type: | Portable,Ethanol(C2H6O) |
| Detection Range: | 0-1%VOL |
| Resolution: | 0.01%VOL |
Temperature and relative humidity:
(Optional) | Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RH |
| Detection pattern: | Pumping, the flow rate is adjustable. |
| Detection Accuracy: | ≤±3%F.S | Linearity Error: | ≤±1%F.S |
| Reaction Time: | ≤20 S(T90) | Zero drift: | ≤±1%(F.S/Year) |
| Detection Method: | Real-time detection mode, timing detection mode and cycle detection mode can be switch freely |
| Storage Method: | Automatically saving and manually saving is available,
Up to 100,000 group data ,user can view history data on the display. |
| Explosion Proof Sign: | Exdll CT4 (IA) | Case material: | ABS+PC |
| IP rating: | IP66 | Operating Temperature: | -30 ~ 60ºC(-22~144ºF) |
| Power: | 4000mA high capacity polymer rechargeable battery | Operating Humidity: | ≤90%RH,Non-condensing |
| Dimensions / Weight: | 180*88*55 mm(L×W×H)
0.5 Kg(net weight) | Operating Pressure: | -30Kpa ~ 100Kpa |
| Standard Accessories: | -Portable aluminum Case
-User manual
-Certification
-USB charger+Data cable
-Calibration cover |
| Optional Accessories: | -Vapor filter
-Hose
-Sampling handle(stainless steel ,approx 60cm) |
>>> Details:

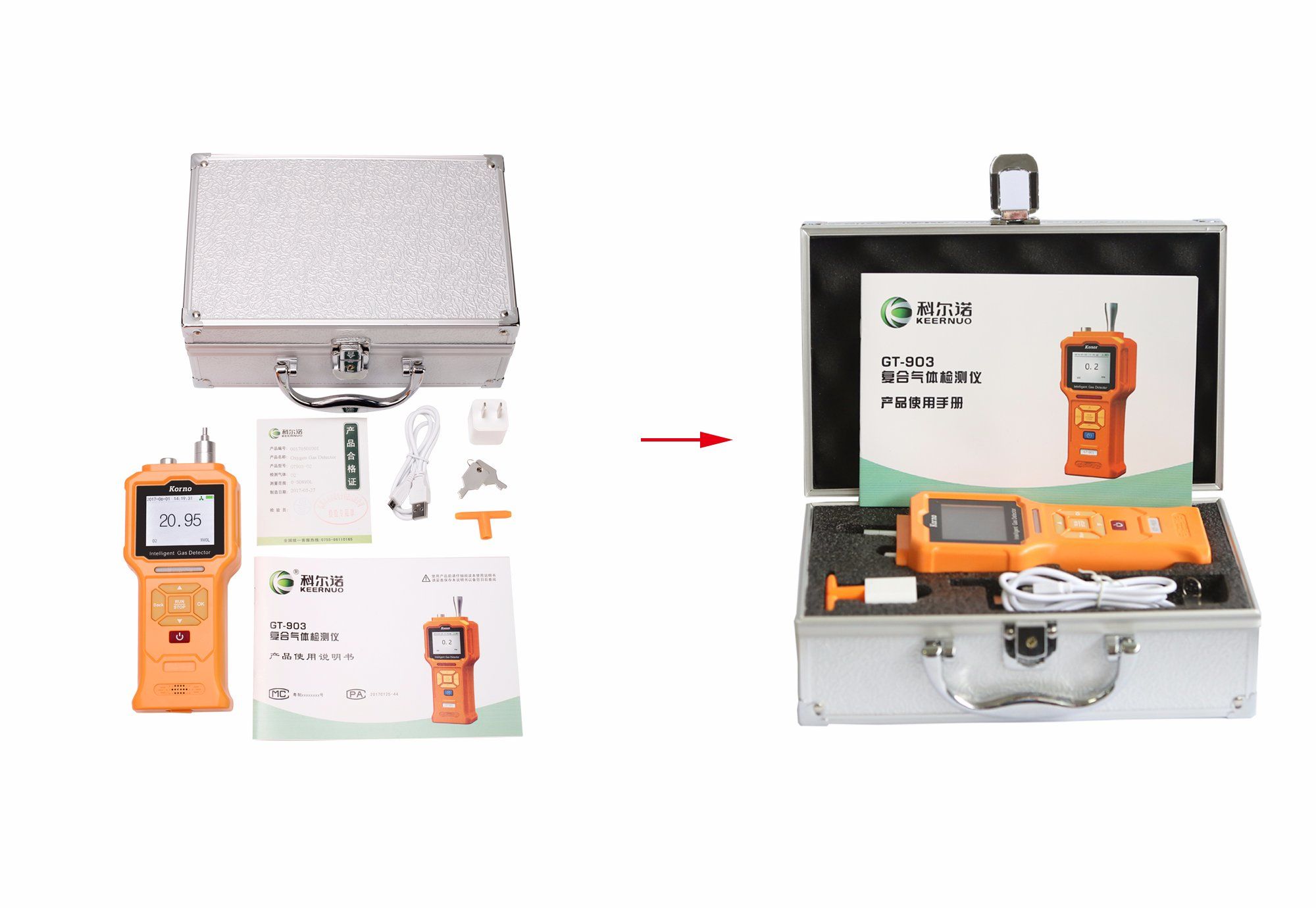

Packaging and Shipping:1:Gas detector
2:Portable aluminum Case
3:User manual
4:USB charger+Data cable(Andrews Interface)
5:Calibration cover
Customize Service: 1) Show your company name and logo at the boot interface
2) Print your company name,information,logo at the label and manual
3) Design stainless steel nameplate with your company name for free(≥20PCS)
4) We can also silk-printing your Logo,design another color of the case for you
if you have a large order.For more details,please contact us^ ^
F&Q:Q1:Can I have a sample order?A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?A2:We have written instructions for incoming material&finished products inspections and testing. All the finished products will be 100% inspection and all the non-conforming units will be clearly
marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
Contact US:TEL:+86-0755-86110165-666
FAX:+86-0755-86110165-555
Mobile phone+86-18123785827 Evina Wong
Shenzhen Korno Import& Export Co., Ltd is one of the top gas and dust particle detector manufacturer in China, with more than 10 years research and production experience. Our products mainly include Handheld Gas Detector, Portable Gas Detector, Online Gas Detector, Controller, Gas Pretreatment System ect. And we have passed ISO9001: 2015, ISO14001: 2015, OHSAS: 2007, CMC and Explosion-proof certification for our products.
We have associated factory named Shenzhen Korno Electornic Technology Co., Ltd, the factory was established in 2008 with 45 employees and occupies an area of more than 1000 square meters

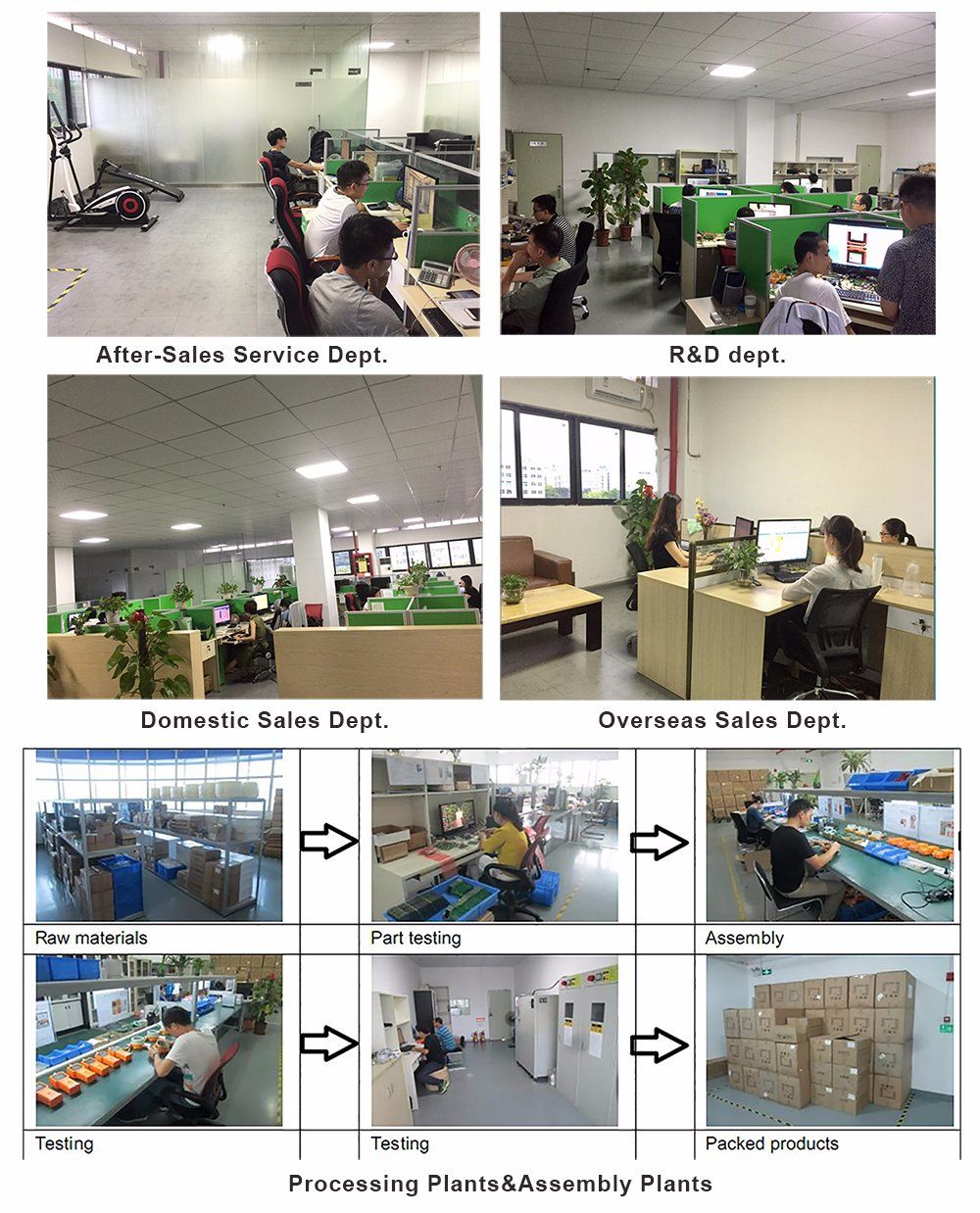

We have our own R&D departments, processing plants, assembly plants, after-sale technical support departments, domestic sales, overseas sales departments, etc.
The company has advanced production equipment and testing instruments, excellent marketing team and partners both at home and abroad, perfect management of the product market development and product after-sales service.
Our main market is Asia, Europe and America, more than 30 countries.
Our customers are: Mordoch University, HUANGKUANG University, Humboldt University Berlin, S. P. Refinery. Co., Ltd, China National Petroleum Corporation, etc.
