XIAN GOODNESS IMP. AND EXP. CO., LTD. >> IP66 Ukf Weatherproof Isolator with Ce Certificate

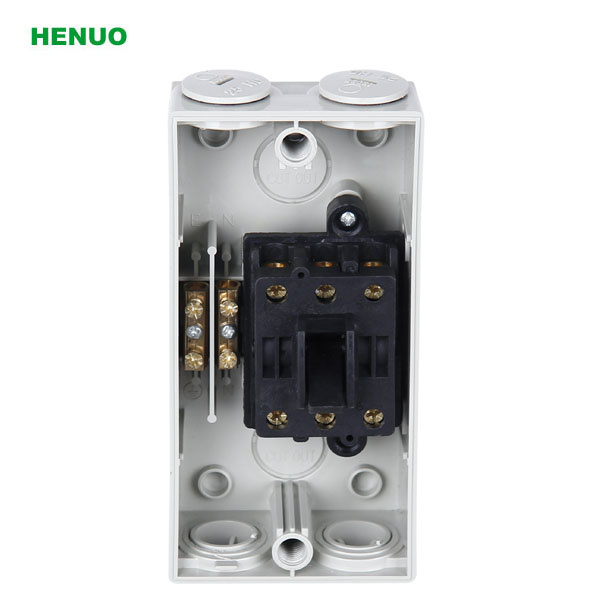

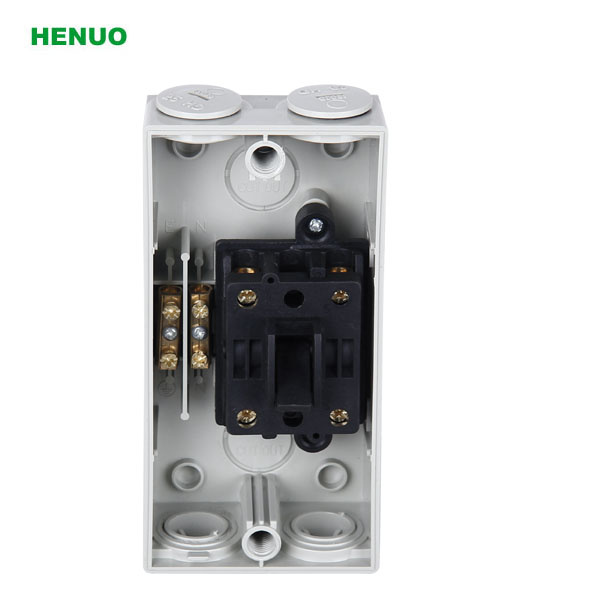

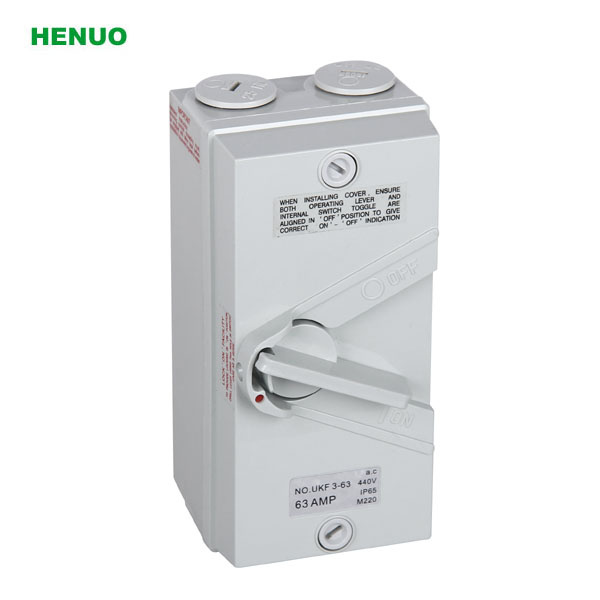

IP66 Ukf Weatherproof Isolator with Ce Certificate

IP66 Ukf Weatherproof Isolator with Ce Certificate
Price: US $ 2.95/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T




Act as weatherproof isolating switch in all types of circuits as defined in the IEE regulation.
Protection degree up to IP66.

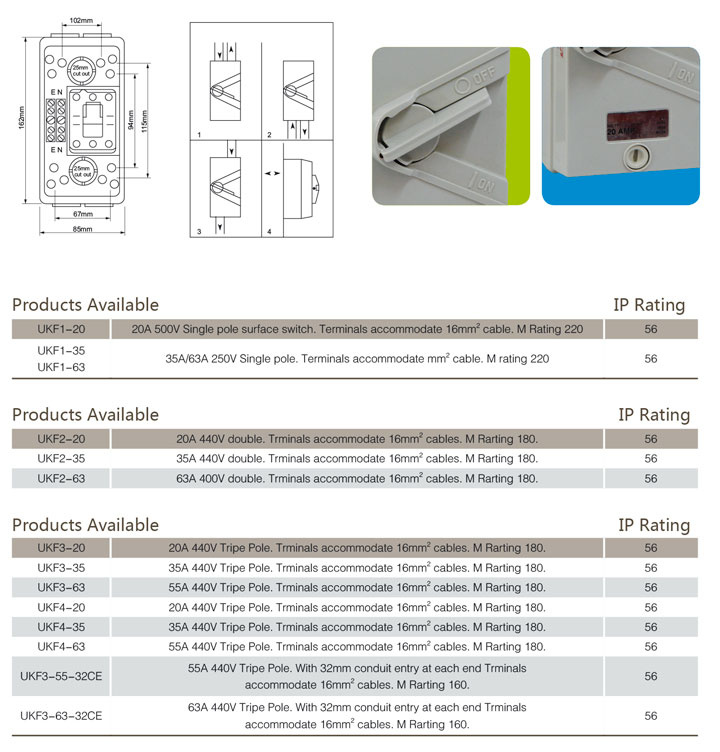

Technical Parameter:
Conform to IEC60947-3: 1999.
Rated Current: 20A, 32A, 45A, 63A
Rated Voltage: 240/415V
No. Of Pole: 2P, 3P, 4P
Switches pad lochable at "OFF" position.

Terminal Capacity:
16mm2 Rigid stranded cable
Conduit entry:
2 x 25mm cable entry top and bottom.
2 x 25mm conduit adaptors provided.
4 x 20mm, 2 x 25mm knockouts for rear cable entry.





Prod Model: UKF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current: 20A,32A,45A,63A
Rated Voltage: 240/415V
No Of Pole: 1p,2p,3p,4p
Terminal Capacity: 16mm2 Rigid Stranded Cable
Conduit Entry: 2 X 25mm and 4 X 20mm
Certificate: CE,CB
Type: Low-voltage
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.

From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:

1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.

2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.

3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.

4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on

5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on

Internationalization standard quality guarantee system:

The product quality of Tengen Group has been strictly controlled in each working procedure,

Many kinds of internationalization standard quality guaranteed system can be highly effective

Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently

Make sure of our product quality.

"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American

FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management

System authentication, CCC authentication, European Union CE safe Authentication, American UL

Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first

Side laboratory -- low voltage electric appliance test center which is the first connected with

International in China.

We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
