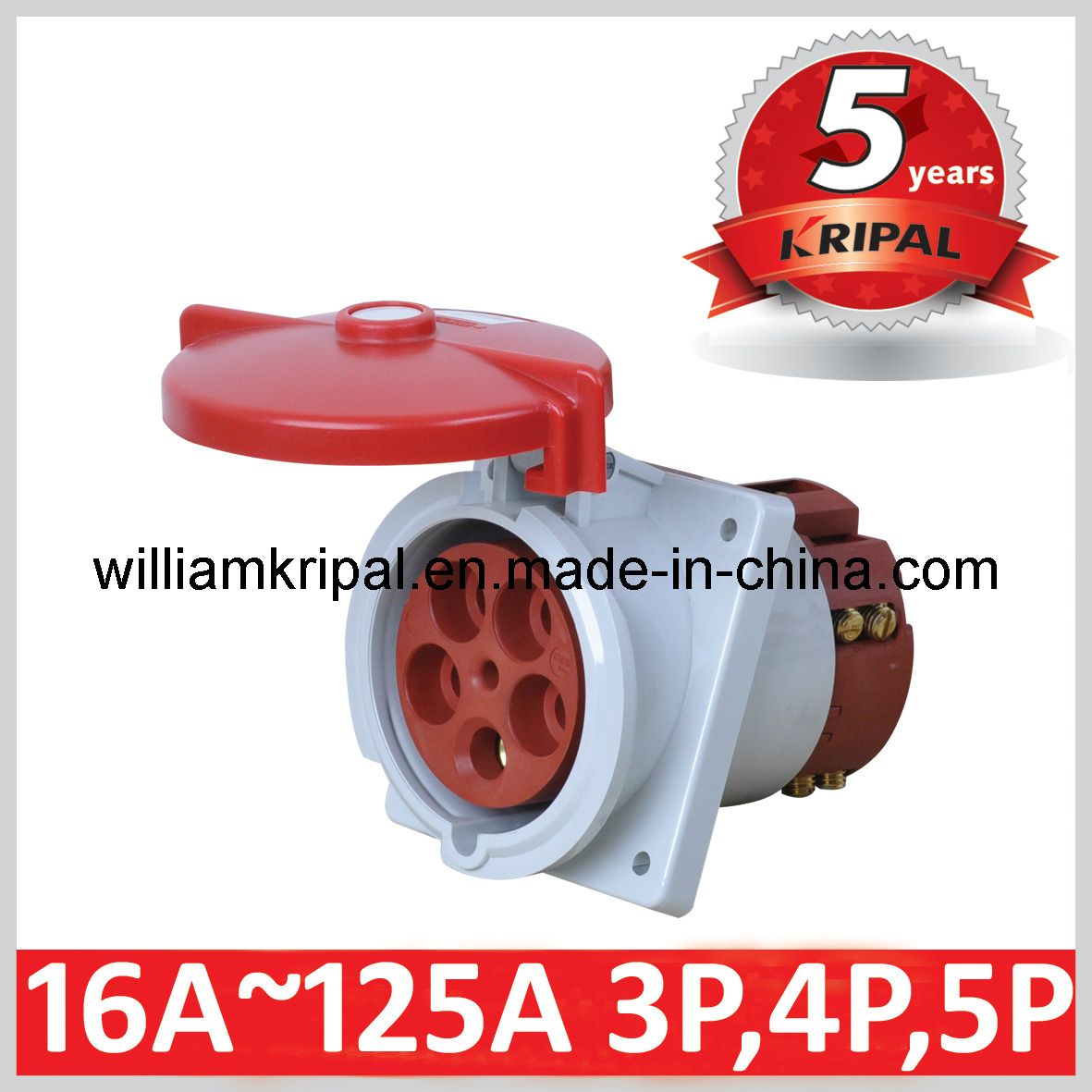

IP67 125A 3p+N+E Panel Mounting Electrical Socket

Name: IP67 125A 3p+N+E Panel Mounting Electrical Socket
Brand: all-electronics-online.com
SKU: 738036265
Availability: InStock
Rating: 5 (49 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

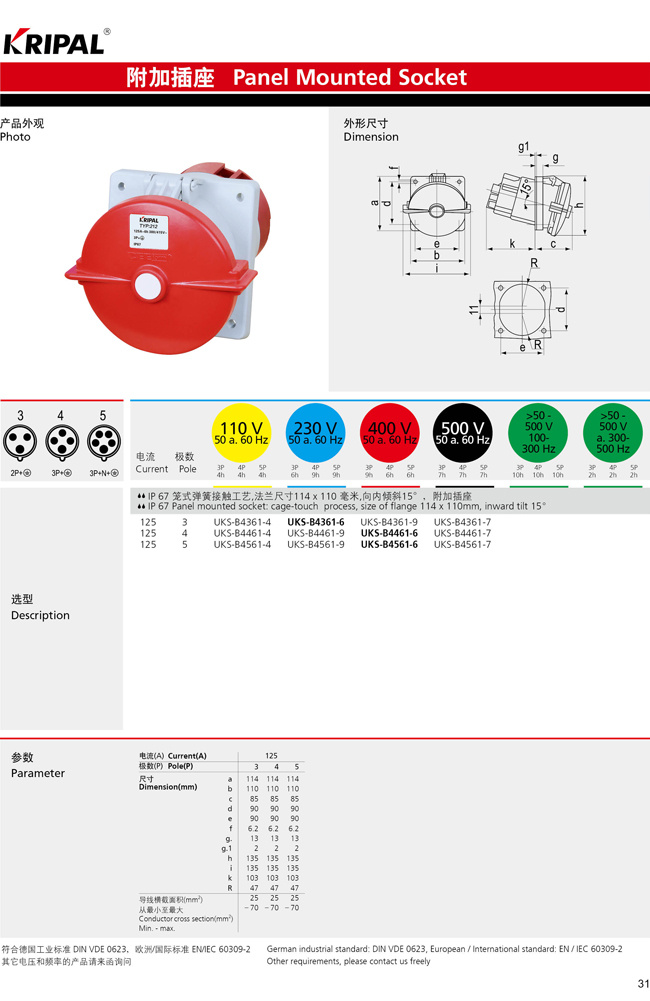

IP67 panel mounting electrical socket

Cage spring technology, size of flange 114*110mm, inward tilted 15 degree, panel mounted socket

1. Rated current: 125A

2. No. Of poles: 3P+N+E

3. Voltage range: 380V-415V;

4. Power type: Three Phase

5. Protection degree: IP67;

6. Conductor cross-sectional area (mm2): 25-70

7. Material: NYLON PA6, PC, copper

8. Color: RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).

9. Advantages: Waterproof, dust-proof, impact resistance, anti-corrosion

10. Standards: EN/IEC60309-2, DIN VDE 0623

11. Warranty: Five years

12. Samples: Provided freely

13. Lead time: 20 days

14. Payment terms: T/T, L/C

Prod Model:	216
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Without Switch
Installation:	Panel Mounted
Style:	Socket-Outlet for Appliances
Warranty:	Any Faulty Items Will Be Replaced Freely
Grounding:	Standard Grounding
IP Rating:	IP67

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
