| Prod Model: |
ZH5608 |
| Rated Current: |
32A |
| Grounding: |
Standard Grounding |
| Color: |
Red |
| Material: |
Plastic |
| Protection Degree: |
IP67 |
| Poles: |
5p |
| Copper Core: |
Tinned Copper |
| Feature: |
Safe / Waterproof / Durable |
| Delivery Time: |
Within 25 Days After Rec |
| Delivery Methods: |
by Sea / by Air / by |
| Standard: |
Swiss Standard |
| Certification: |
RoHS,Ce,CB,ISO9001 |
| Shape: |
EP |
| Nominal Voltage: |
400V |
| Brand: |
Johnn |
Product Description

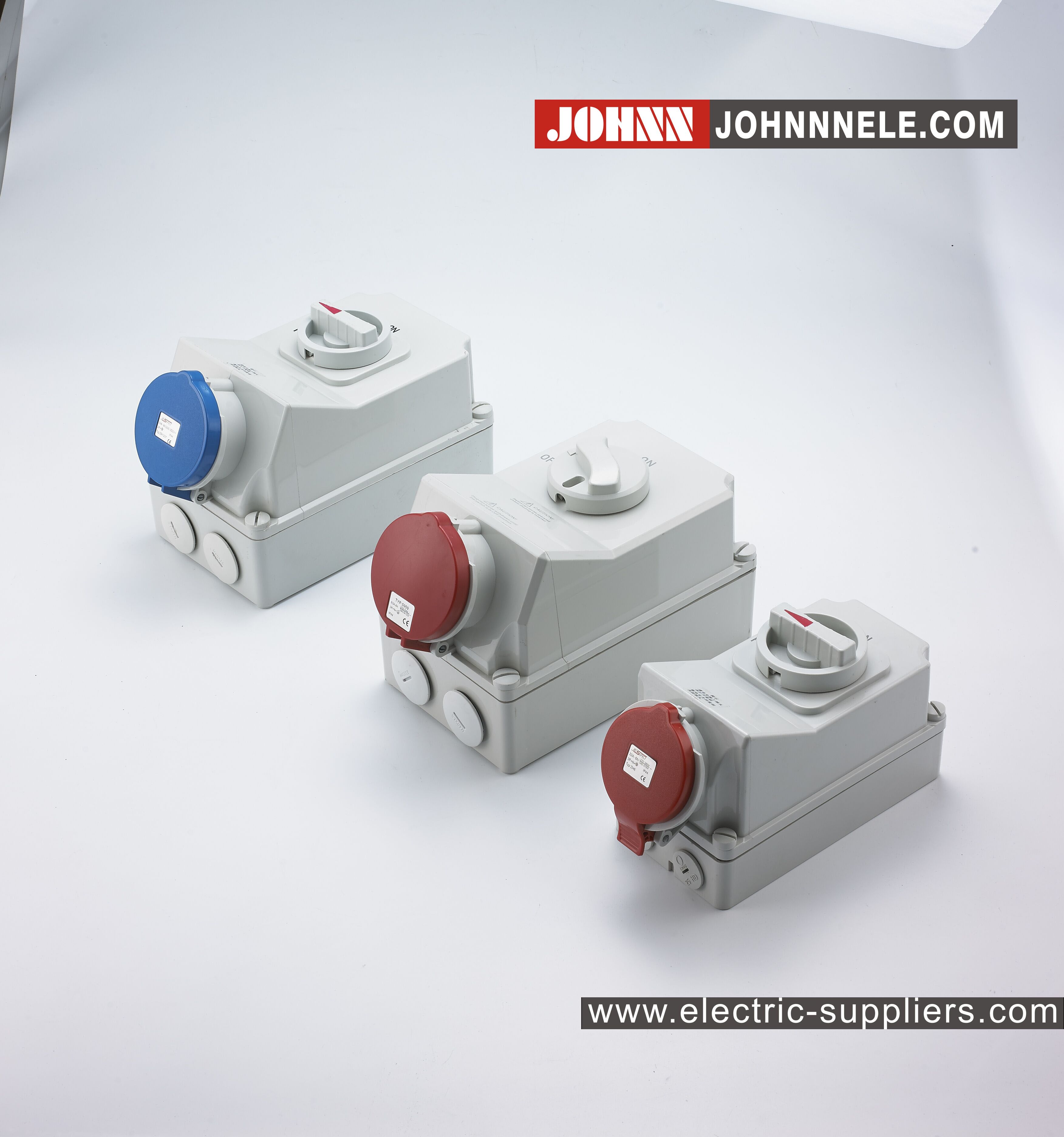

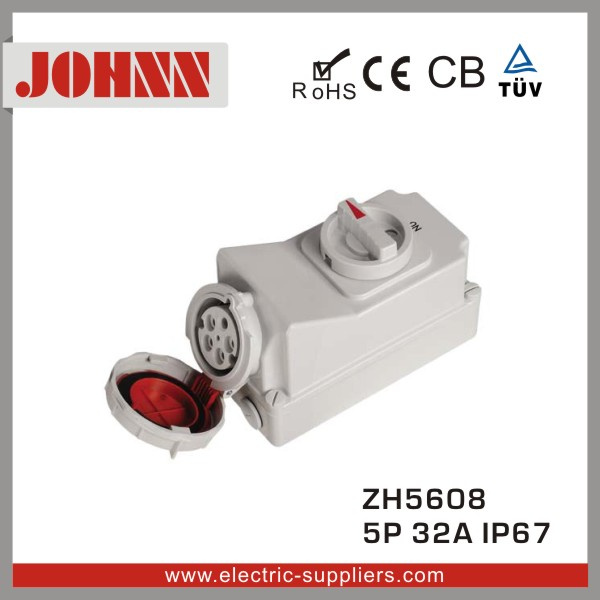

------ Picture of Electrical Industrial Socket ------

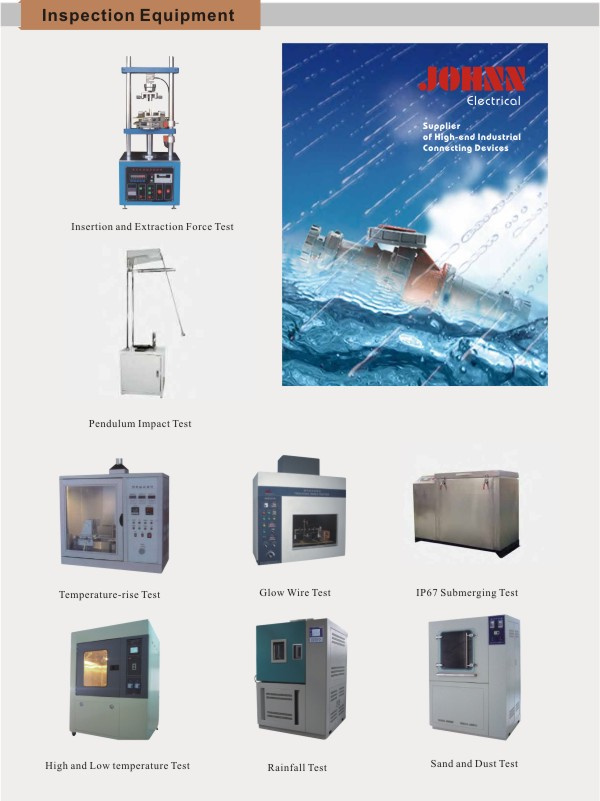

----Inspection Equipment----
----Company Information----As far the company established,we put our whole heart and soul into designing and producing new products meeting the global users,demands."passion,Enthusiasm,Innovation and Devotion"is our corporate,"Spare no effort for pursuit of perfection"is our business philosophy.
Quality is our only faith.During this 12 years,we exported our products to all over the world.Much experience on exporting would help you to finish all kinds of working you required,competitive prices in your market.
---- Detail of Electrical Industrial Socket ---- 1. Model Number: ZH5608
2. Color: Red
3. Material: Plastic
4. Poles: 5P
5. Protection Degree: IP67
6. Rated Current: 32A
7. Rated Voltage:400V
8. Copper Core: Tinned Copper
9. Grounding: Standard Grounding
10. Conductor cross sectional area: 4-6mm²
11. Feature: Safe / Waterproof / Durable
12. Certification: Rohs / CE / CB
------ Parameters of Industrial Connector ------
| Current | Poles | 110V
50a.60Hz | 230V
50a.60Hz | 400V
50a.60Hz | 400-440V | 500V
50a.60Hz | >50-500V
100-300Hz | >50-500V
a.300-500Hz | Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h | 3P 4P 5P 6h 9h 9h | 3P 4P 5P 9h 6h 6h | 4P
3h | 3P 4P 5P 7h 7h 7h | 3P 4P 5P 10h 10h 10h | 3P 4P 5P 2h 2h 2h | PCS/BOX | G/PC |
| 32A | 3 | ZH5924 | ZH5793 | | | | | | 1 | 1150 |
| 4 | | ZH5604 | ZH5605 | ZH5792 | ZH5606 | | | 1 | 1180 |
| 5 | | ZH5607 | ZH5608 | | | | | 1 | 1230 |
| Current | Poles | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | M | m* |
| 32A | 3 | 225 | 118 | 144 | 208 | 101 | 6.3 | 8 | 268 | 2*25 | 25/32 |
| 4 | 225 | 118 | 146 | 208 | 101 | 6.3 | 8 | 268 | 2*26 | 25/32 |
| 5 | 225 | 118 | 147 | 208 | 101 | 6.3 | 8 | 274 | 2*27 | 25/32 |
| Conductor cross-sectional area (mm²) Min To Max 4-6 |
Line with the German industrial standard DIN VDE 0623, the European / International standard EN / IEC 60309-2.
------ Packaging ------
1. Model Number: ZH5608
2. PCS/BOX: 1PCS
3. PCS/CTN: 18PCS
4. Package Size: 58*38*49.5 CM
5. Weight: 21/19KGS
------ Shipping&Payment ------
1. Delivery Time: Within 25 days after receipt deposit.
2. Delivery Methods: By Sea / By Air / By Express ( DHL, FEDEX, TNT,UPS and etc ).
3. Payment: L/C / T/T / BL / Western Union / MoneyGram.
FAQ
Q-1. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q-2. Are you original Factory?
A: Yes, we have our own factory with many storage.
Q-3. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.
Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
Welcome to Jianghong Electrical
