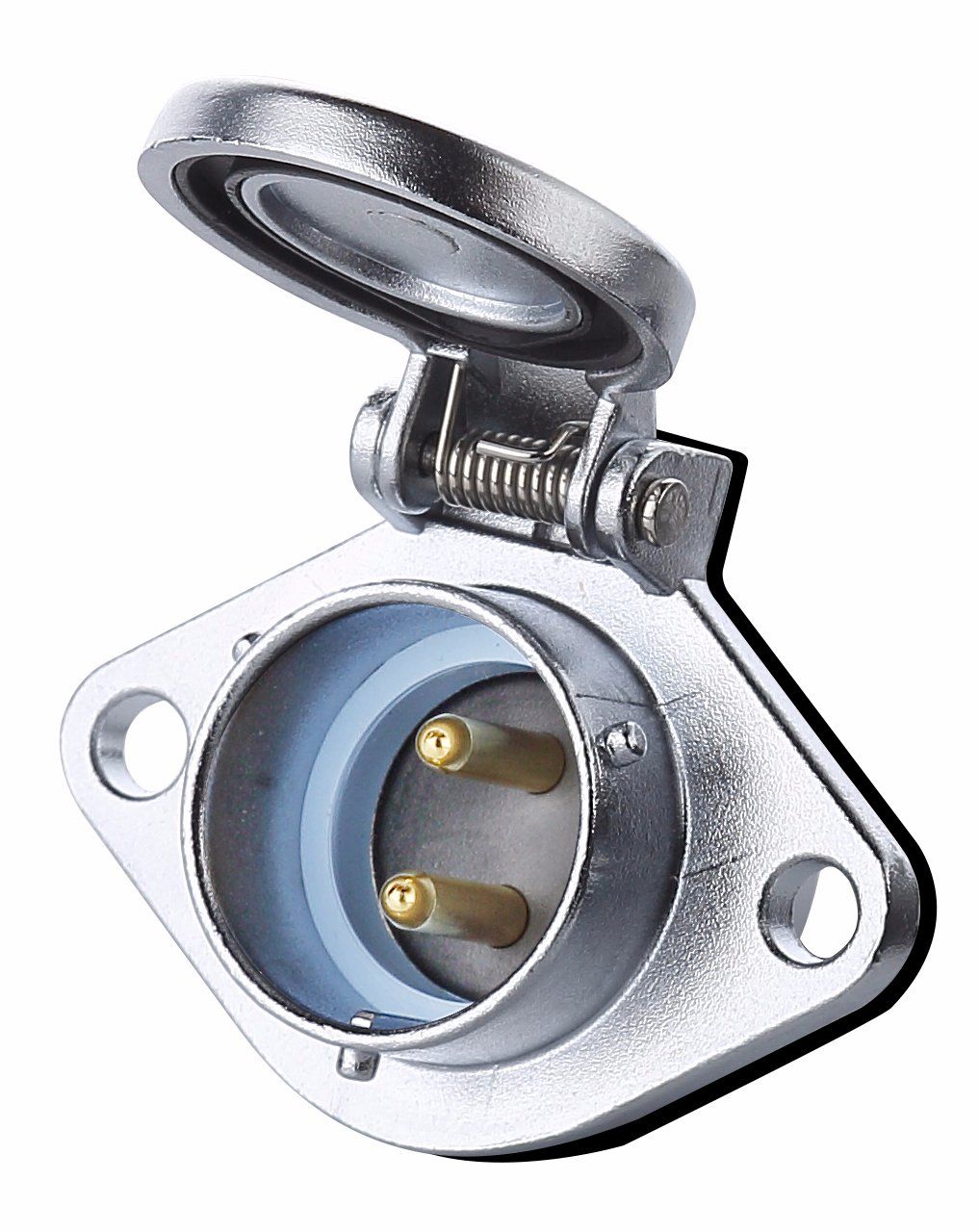

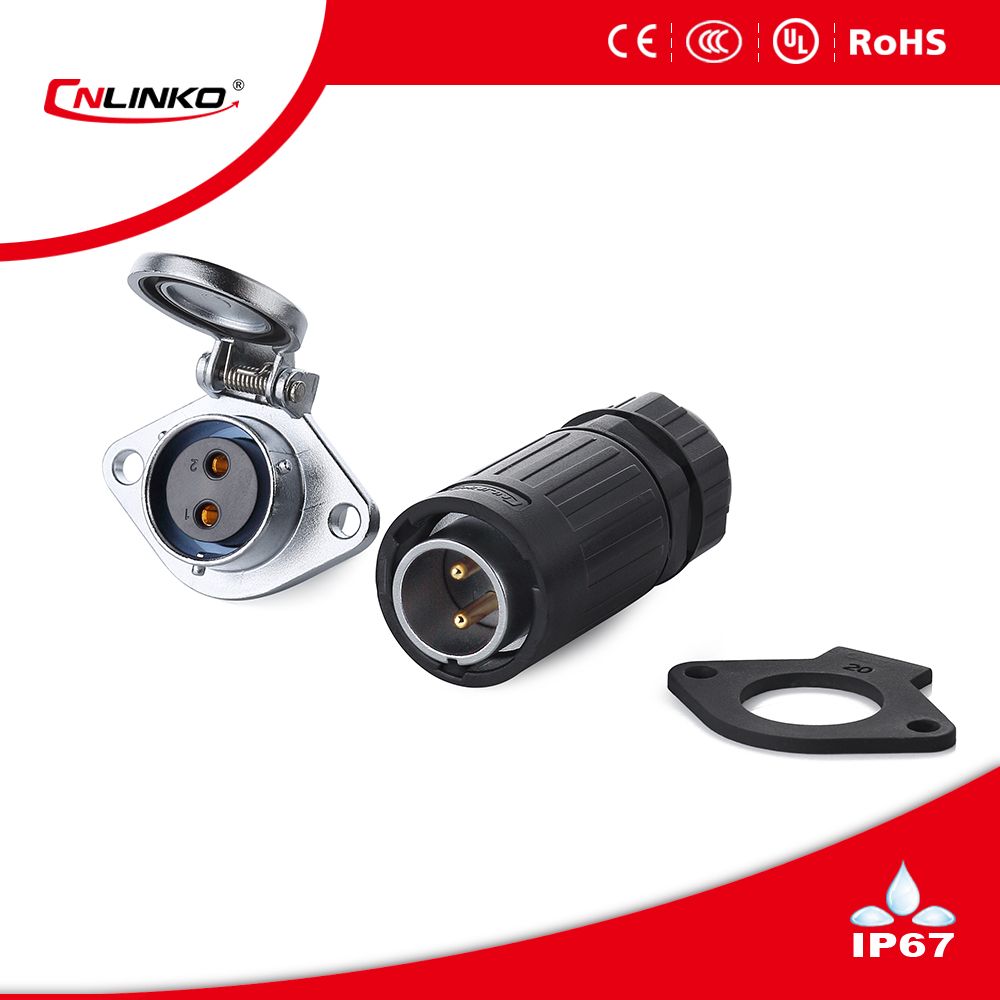

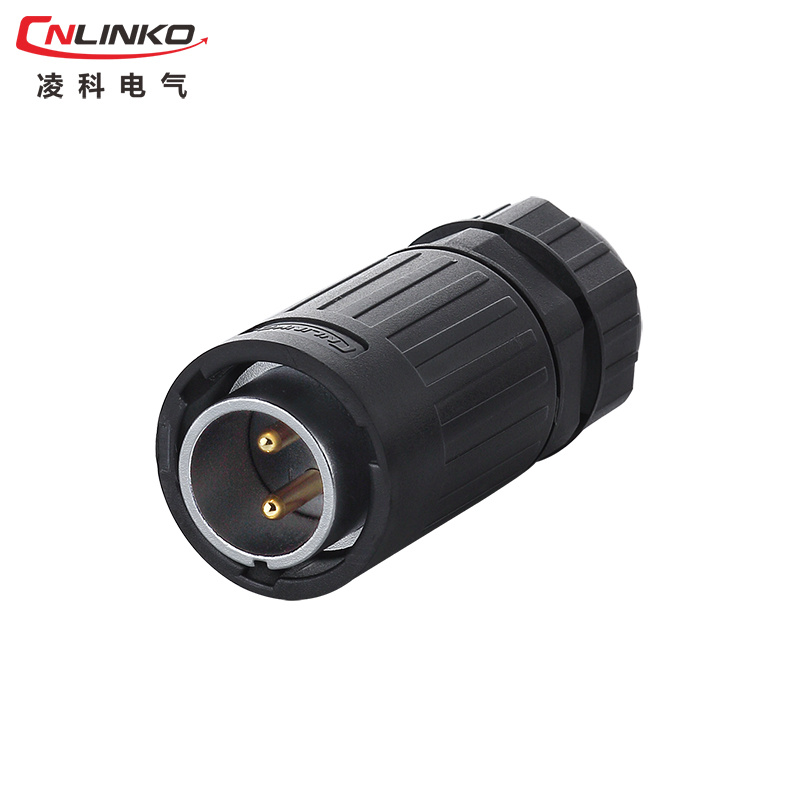

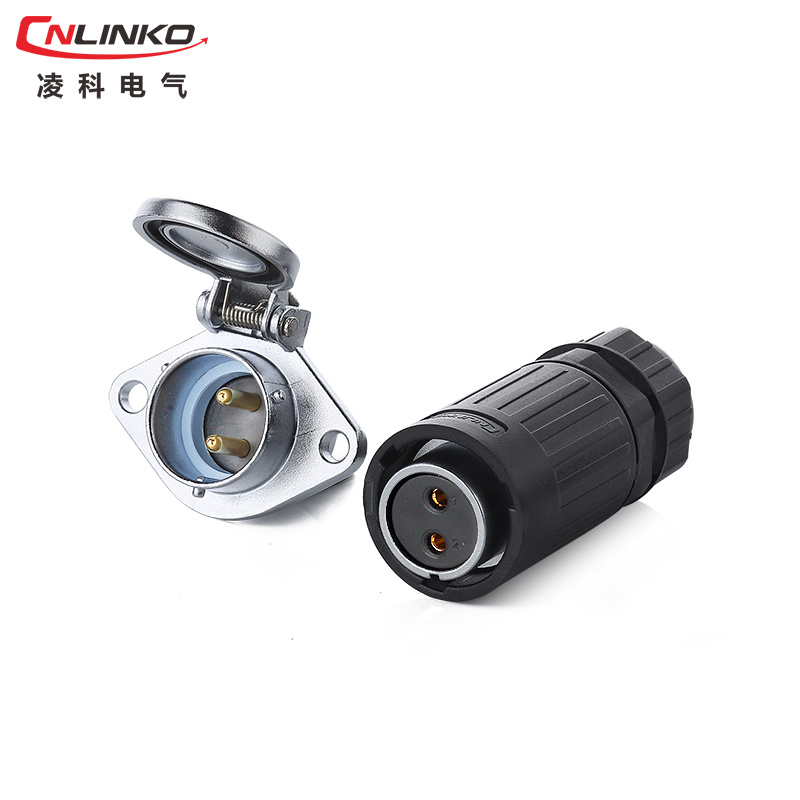

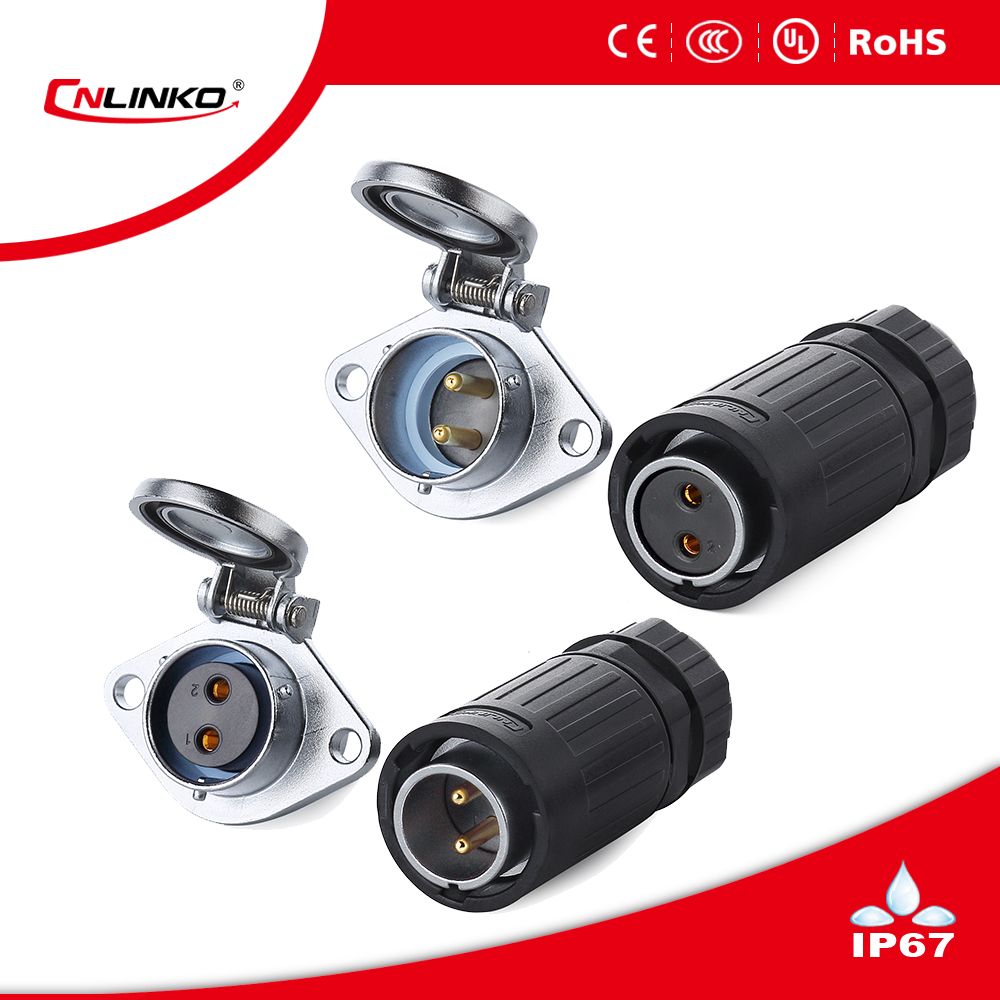

Jack and Plug IP67 Quick Insulated Piercing Connector

Name: Jack and Plug IP67 Quick Insulated Piercing Connector
Brand: all-electronics-online.com
SKU: 779696565
Availability: InStock
Rating: 4.4 (94 reviews)

Price:	US $ 3.1/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Jack and plug ip67 quick insulated piercing connector

1.Multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
3.Gold-plated contact, high performance of corrosion resistance and
4.Electrical conductivity effectively deal with temperature rise.
5.PBT shell performance stable, compression, anti-explosion and anti-deformation
6.Rated current:20A rms
7.Protection level:IP65/IP68

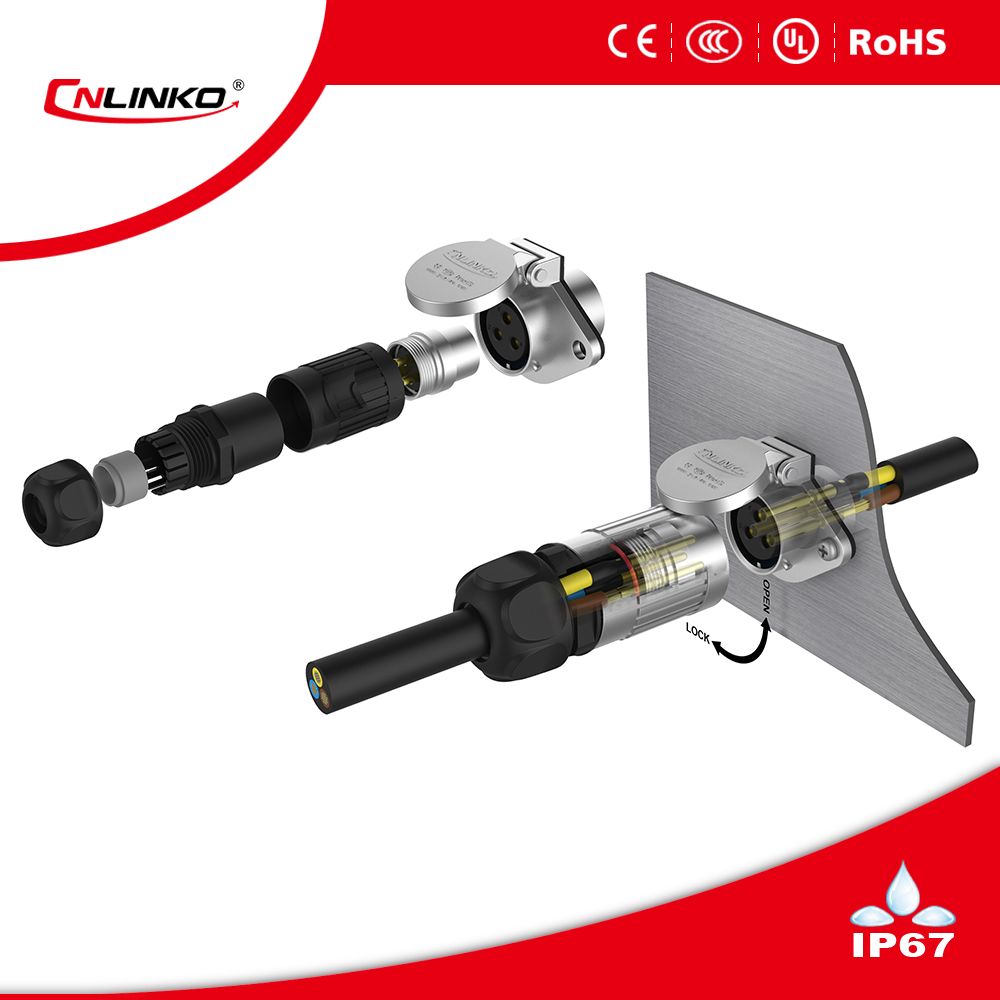

8.1/4 bayonet connector

Application:
1.LED screen industry
2.Audio-visual equipment
3.Medical equipment
4.Industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.

Specifications:

Connecting mode	1/4 Bayonet
Protection level	IP65/67
Cable specification	2.5mm ² ~ 4mm ² /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter ×Qty	Φ2.7x2
Current rating(A)	20A
Operating voltage(AC.V.Rms)	500V
Withstand voltage(AC.V)1min	2500V
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Prevent the combustion level	UL94-V0
Temperature rise	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C
Color	Black
Protective housing	PBT Material
Install method	Plug/unplug
Material:
Shell&Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Assembly wire	Solder
Copper needles	Copper alloy(gold-plated)
Waterproof	Silica gel

Packaging & Shipping

Normally, our price is based on our box packing.Customized packing is welcome , MOQ of printing customized box is 1000 pcs/modelDelivery Detail:1-10 working days after received deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service .We have professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month .National level laboratory , and have flexible production line, to make quick action to urgent customized needs.We will supply the best service to you .Anything ,please feel free to contact us at:

Cellphone:0086-18312490311
Telephone:0086-0755-86960323
Website:Www.Cnlinko.Com

Prod Model:	YA-20-C02PE-03-001 YA-20-J02SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	14-12AWG
Diameter Range:	8mm-12mm
Contact Diameter*Number:	2.7*2
Operating Voltage:	500V
Protection Level:	IP65/IP67
Durability:	More Than 500 Times
Connecting Mode:	Plug/Unplug
Assembly Wire:	Solder
Copper Needles:	Copper Alloy(Gold-Plated 4u)
Flammability Rating:	UL94-V0
