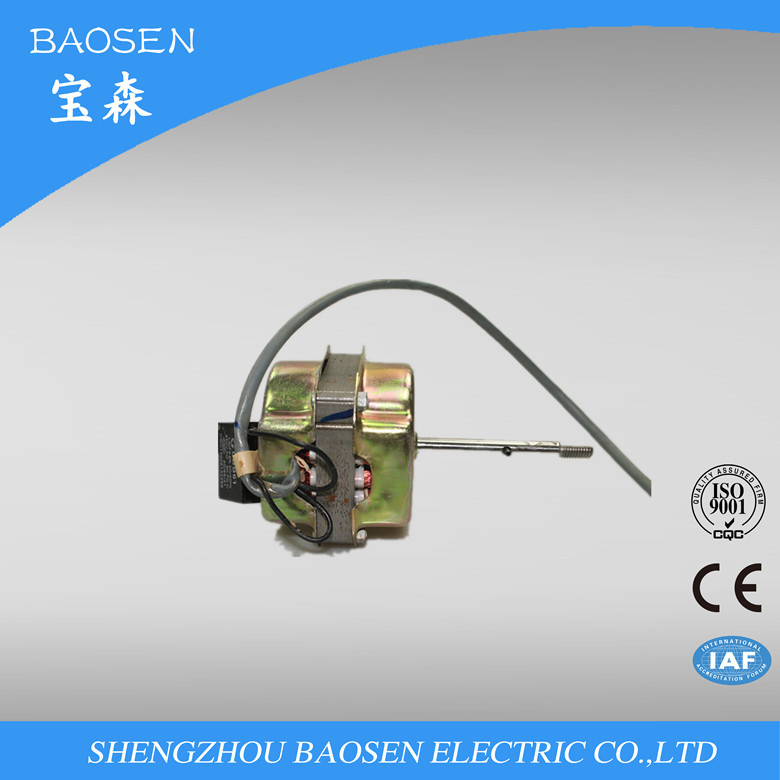

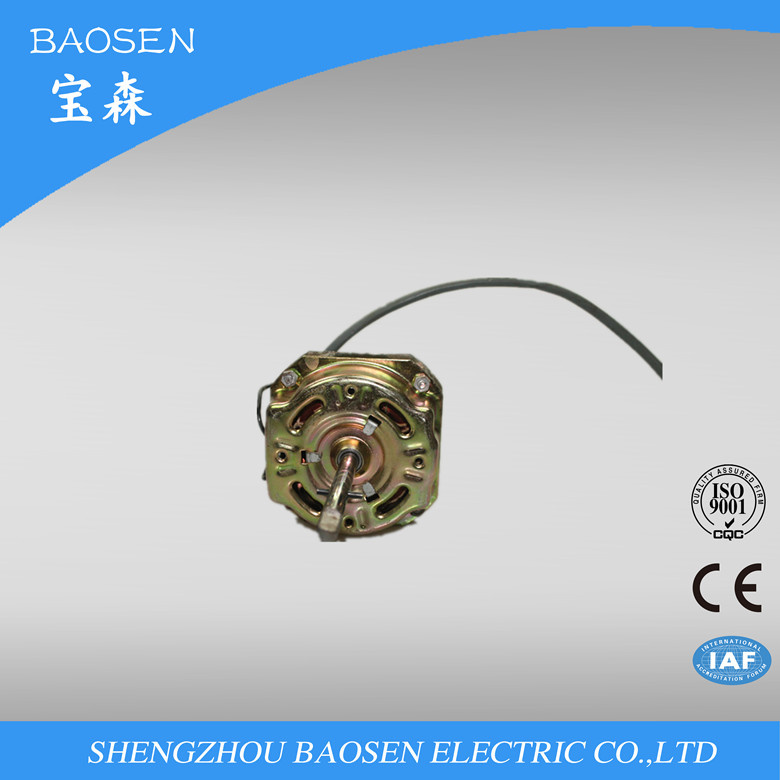

Jali Fan Motor

Number Of Stator:	Single-Phase
Function:	Driving
Brand:	Lanfang

Product Description


Specifications
1.Shaft dia or length can be any as customers needs.
2-Stator height can be any from 10mm to 50mm.
3-Mounting holes size and distance can be any as customers needs
4-Brackets can be either metal or aluminum. Its height can be changed.
5-Motor rotation direction can be CW or CCW.
6-The motors can be customized according to the different voltages
Technical Parameter

Type	Model	Rated Voltage(V)	Rated Frequency(Hz)	Output Power(w)	Rated speed(r/min)	Electric capacity	Insulation grade
Electric fan motor	YHY-55	220	50	18	1180	1.5	E
	YHY-55	220	50	18	1180	1.2	E
400mm	YHY-55	220	50	18	1150	1.5	E
350mm	YHY-50	220	50	14	1150	1.2	E
300mm	YHY-45	220	50	12	1200	1.0	E
250mm	YHY-4	220	50	10	1300	1.0	E

 Warranty:
1. Total warranty/Guarantee: 12 months
2. Warranty of battery: 12 months
Payment Terms:
1. T/T, Cash, L/C, Paypal 30% deposit, 70% balance before shipment
3. Lead time: 15 days after received deposited for 1000sets LED flashlights
4. Delivery way: EMS, UPS, DHL, FedEx, Sea transportation
Shipping:
For Sample:
1. EMS, UPS, DHL, Fede
2. EXPRESS: Around 5-7 working days to arrive
Bulk Order:
1. QTY of 20GP: 10, 000PCS Torch. Powerful flashlight, super bright flashlight, long range flashlight, long work life flashlight, tatical flashlight, CREE LED flashlight,
2. Via Sea
3. Delivery time: We will finish production in 15 days for MOQ 1000PCS

• What's the MOQ?
  • 500pcs.

• What's the delivery time?
  • Around 15-20days.(Depend on your QTY)after receiving the deposit.

• Can I print my own logo?
  • Yes,we can. we can make the sample as your sample or design drawing.

• Can I take a sample for quality check?
  • Sure.

• What is your target /main market?
  • To be honest, our goods enjoy a great popularity in the global market,

such as Asia, Middle East, South America, Africa, East and West Europe and a few Northern American areas.

• what does your factory do regarding quality control?
  • Specializing in AC motor for 21 years We have passed the ISO9001-2008 Certificate and CCC certificates. We give a 100% full inspection from the incoming materials to the final finished products. We strictly control the quality of the motor according to the ISO9001-2008.
