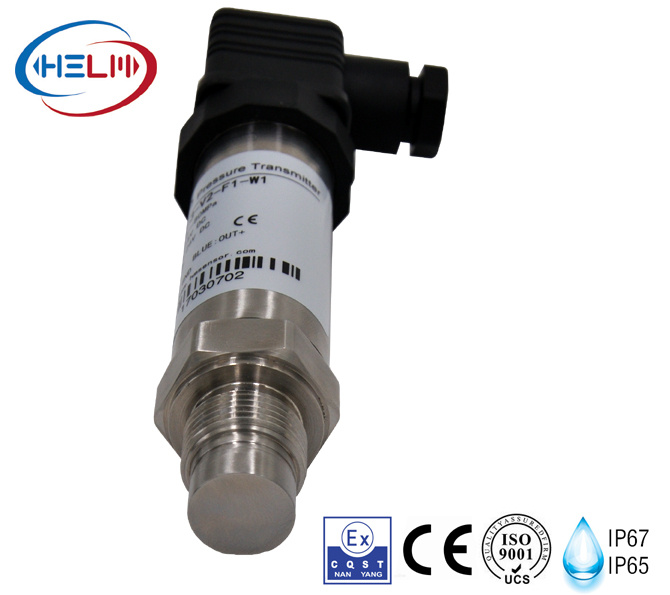

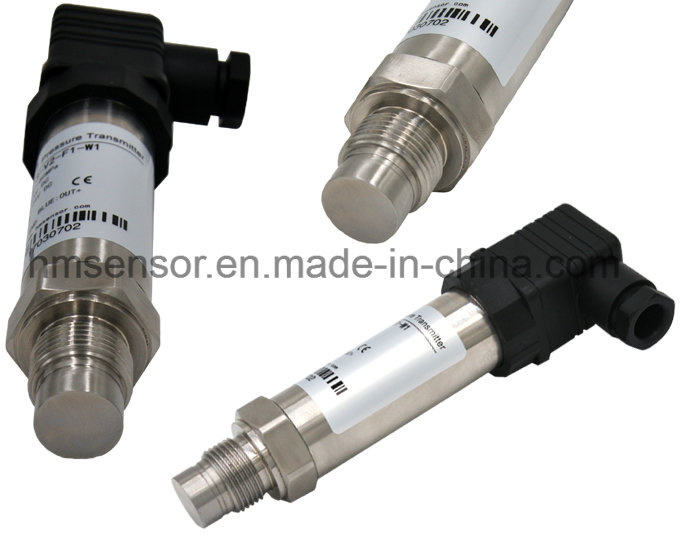

Product overview JCHM70 hygienic flat-diaphragm pressure transducer adopts imported high-accuracy and high-stability pressure sensor module to covert the absolute pressure or the gauge pressure of the measured medium into 4 ~ 20mA, 1 ~ 5V / 0 ~ 5V standard electrical signal through high-reliability amplification circuit and precise temperature compensation. High-quality sensor and encapsulation technology of full seal welding as well as improved assembling process have ensured excellent quality and best performance of this series of product.
Features and ApplicationProduct Features Product Application• High stability and high sensitivity • Hygienic pressure pipelines
• Lightning and RFI immunity • Food and beverage processing
• Diversified signal output form and adjustable zero point and full scale; • Medical and pharmaceutical
• Reverse polarity protection and transient over-current and over-voltage protection • Sewage treatment
• Fully made of stainless steel • Viscous medium pressure measurement
• Clean flat type isolating diaphragm
Specification| Measured Medium | Liquid, gas or vapor compatible with 316 stainless steel |
| Measuring range | -100KPa~0~ 20KPa…35MPa |
| Overload capacity | 1.5 times FS pressure |
| Pressure type | Gauge pressure or absolute pressure |
| Overall accuracy | Typical: ±0.25%FS | Maximum: ±0.5%FS) |
| Long-term stability | Typical: ±0.1%FS/ year | Maximum: ±0.2%FS/ year |
| Zero point temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.03%FS/ºC |
| Sensitivity temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.03%FS/ºC |
| Medium temperature | -20~85ºC |
| Compensation temperature | -10 ~ 50ºC |
| Ambient temperature | -20~80ºC |
| Range of power supply | 12~36VDC (24VDC generally) |
| Signal output | 4~20mA / 1~5 V DC /0~5 V DC / 0.5~4.5V DC |
| Load resistance | ≤(U-12)/0.02Ω |
| Thermal lagging | ±0.1% (typical) |
| Process connection | M30x1.5 external thread or clamp |
| Enclosure protection degree | Plug type (IP65); cable type (IP67) |
| Safe explosion-proof degree | Ex iaII CT6 |
| Response time | ≤2 ms |
| Insulation resistance | 100MΩ,500VDC |
| Weight | Approx. 0.5kg |
Ordering Informaiton| JCHM70 | Hygienic Flat - diaphragm Pressure Transducer |
| | Pressure type | Gauge pressure ( G, may not be indicated); absolute pressure (A) |
| | Range | Measuring Range |
| | ( 0~ X KPa or MPa) |
| | | Code | Overall accuracy (linearity + repeatability + lagging) |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | Code | Signal Output |
| | A1 | 4~20mA |
| | V1 | 1~5V DC |
| | V2 | 0~5V DC |
| | V3 | 0.5~4.5V DC |
| | Code | Additional functions |
| | F1 | M30x1.5 external thread |
| | F2 | Clamp type |
| | F0 | Special |
| | W1 | Cable type (IP67, 2m) |
| | W2 | Socket type (IP65, DIN43650) |
| | E | ntrinsically safe explosion-proof type Ex iaIICT6 |
| JCHM70(0~100KPa)-1 -A1 -F1-W1 Hygienic Flat- diaphragm Pressure Transducer |
Tips of Selection1. The measured medium shall be compatible with the material contacting with the product.
2. The code E, an additional function code for selection, namely, intrinsically safe explosion-proof Ex iaIICT6, must
be power supplied via safety barrier.
3. Please contact us for other special requirements and clearly indicate them in the order.
4. During the field installation of flat diaphragm, the correct sealing method shall be adopted to prevent the
installation stress influencing product stability.
