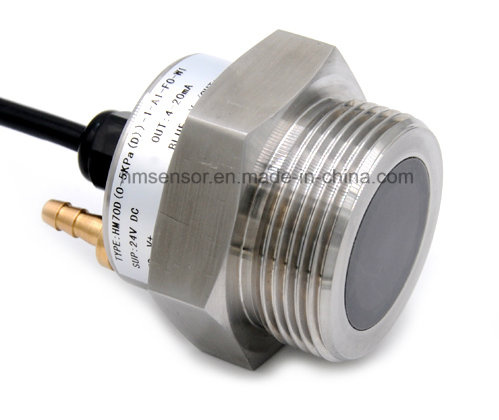

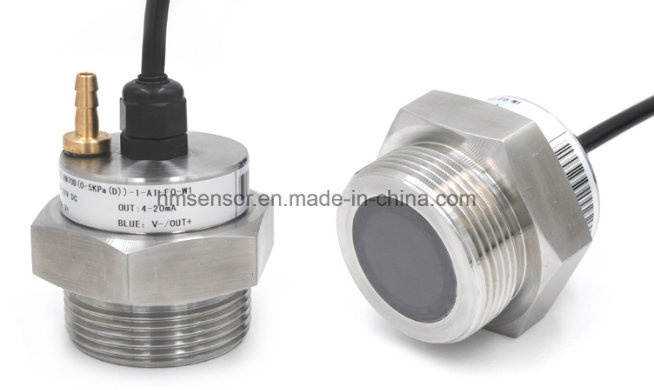

Product Overview HM70 hygienic flat-diaphragm pressure transducer adopts imported high-accuracy and high-stability pressure sensor module to covert the absolute pressure or the gauge pressure of the measured medium into 4 ~ 20mA, 1 ~ 5V / 0 ~ 5V standard electrical signal through high-reliability amplification circuit and precise temperature compensation. High-quality sensor and encapsulation technology of full seal welding as well as improved assembling process have ensured excellent quality and best performance of this series of product.
Performance Parameters | Measured Medium | Liquid, gas or vapor compatible with 316 stainless steel |
| Measuring range | -100KPa~0~ 20KPa…35MPa |
| Overload capacity | 1.5 times FS pressure |
| Pressure type | Gauge pressure or absolute pressure |
| Overall accuracy | Typical: ±0.25%FS | Maximum: ±0.5%FS) |
| Long-term stability | Typical: ±0.1%FS/ year | Maximum: ±0.2%FS/ year |
| Zero point temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.03%FS/ºC |
| Sensitivity temperature drift | Typical: ±0.02%FS/ºC | Maximum: ±0.03%FS/ºC |
| Medium temperature | -20~85ºC |
| Compensation temperature | -10 ~ 50ºC |
| Ambient temperature | -20~80ºC |
| Range of power supply | 12~36VDC (24VDC generally) |
| Signal output | 4~20mA / 1~5 V DC /0~5 V DC / 0.5~4.5V DC |
| Load resistance | ≤(U-12)/0.02Ω |
| Thermal lagging | ±0.1% (typical) |
| Process connection | M30x1.5 external thread or clamp |
| Enclosure protection degree | Plug type (IP65); cable type (IP67) |
| Safe explosion-proof degree | Ex iaII CT6 |
| Response time | ≤2 ms |
| Insulation resistance | 100MΩ,500VDC |
| Weight | Approx. 0.5kg |
Product Features Product Application*High stability and high sensitivity *Hygienic pressure pipelines*Lightning and RFI immunity *Food and beverage processing
*Fully made of stainless steel *Medical and pharmaceutical*Clean flat type isolating diaphragm *Sewage treatment*Diversified signal output form and adjustable zero *Viscous medium pressure measurement
*Point and full scale*Reverse polarity protection and transient over-current
and over-voltage protectionOrdering information| JCHM70 | Hygienic Flat - diaphragm Pressure Transducer |
| | Pressure type | Gauge pressure ( G, may not be indicated); absolute pressure (A) |
| | Range | Measuring Range |
| | ( 0~ X KPa or MPa) |
| | | Code | Overall accuracy (linearity + repeatability + lagging) |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | Code | Signal Output |
| | A1 | 4~20mA |
| | V1 | 1~5V DC |
| | V2 | 0~5V DC |
| | V3 | 0.5~4.5V DC |
| | Code | Additional functions |
| | F1 | M30x1.5 external thread |
| | F2 | Clamp type |
| | F0 | Special |
| | W1 | Cable type (IP67, 2m) |
| | W2 | Socket type (IP65, DIN43650) |
| | E | ntrinsically safe explosion-proof type Ex iaIICT6 |
| JCHM70(0~100KPa)-1 -A1 -F1-W1 Hygienic Flat- diaphragm Pressure Transducer |
| Prod Model: |
JCHM70 |
| Measuring Medium: |
Gas Liquid |
| Accuracy Grade: |
0.25 |
