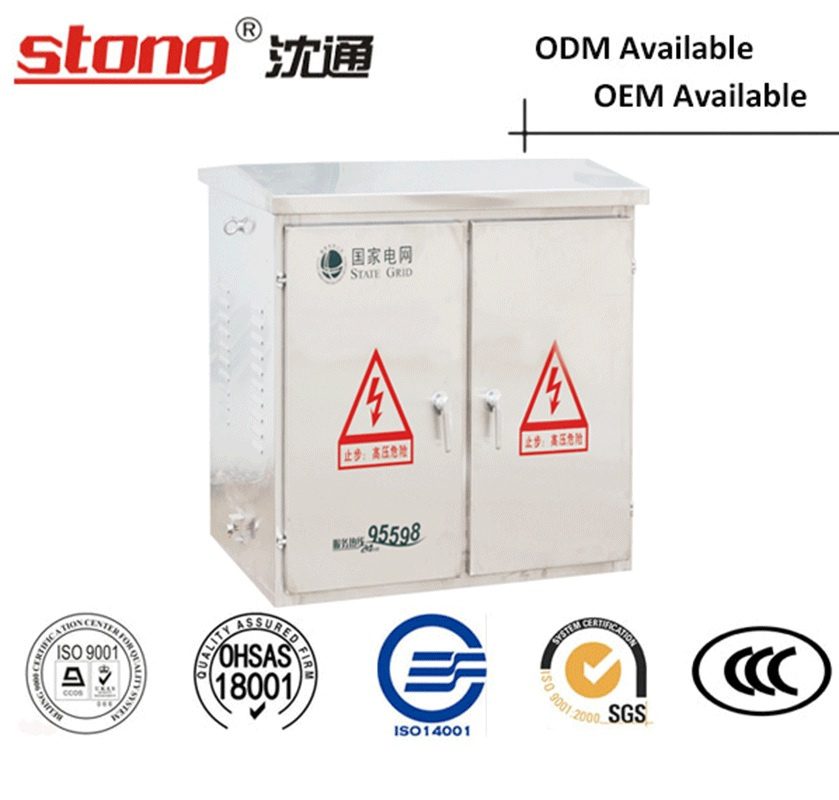

Jpseries Integrated Power Distribution Box (Compensation / Control / Terminal / Lighting)
| Price: |
US $ 2800-3500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union,Paypal |
Advantages:1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

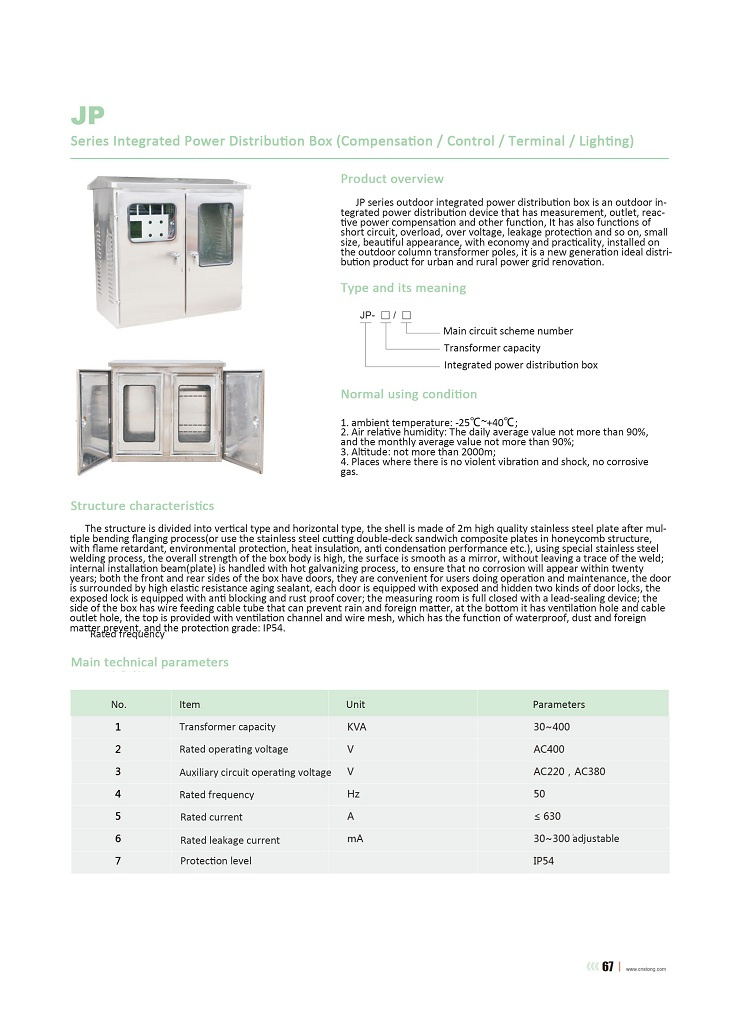

SummaryJP series outdoor integrated power distribution box is an outdoor integrated power distribution device that has measurement, outlet, reactive power compensation and other function, It has also functions of short circuit, overload, over voltage, leakage protection and so on, small size, beautiful appearance, with economy and practicality, installed on the outdoor column transformer poles, it is a new generation ideal distribution product for urban and rural power grid renovation.
Type and its meaningJP - / JP - Integrated power distribution box
- Transformer capacity
- Main circuit scheme number
Using environmental conditions
ambient temperature: -25ºC~+40ºC;
Air relative humidity: The daily average value not more than 90%, and the monthly average value not more than 90%;
Altitude: not more than 2000m;
Places where there is no violent vibration and shock, no corrosive gas.

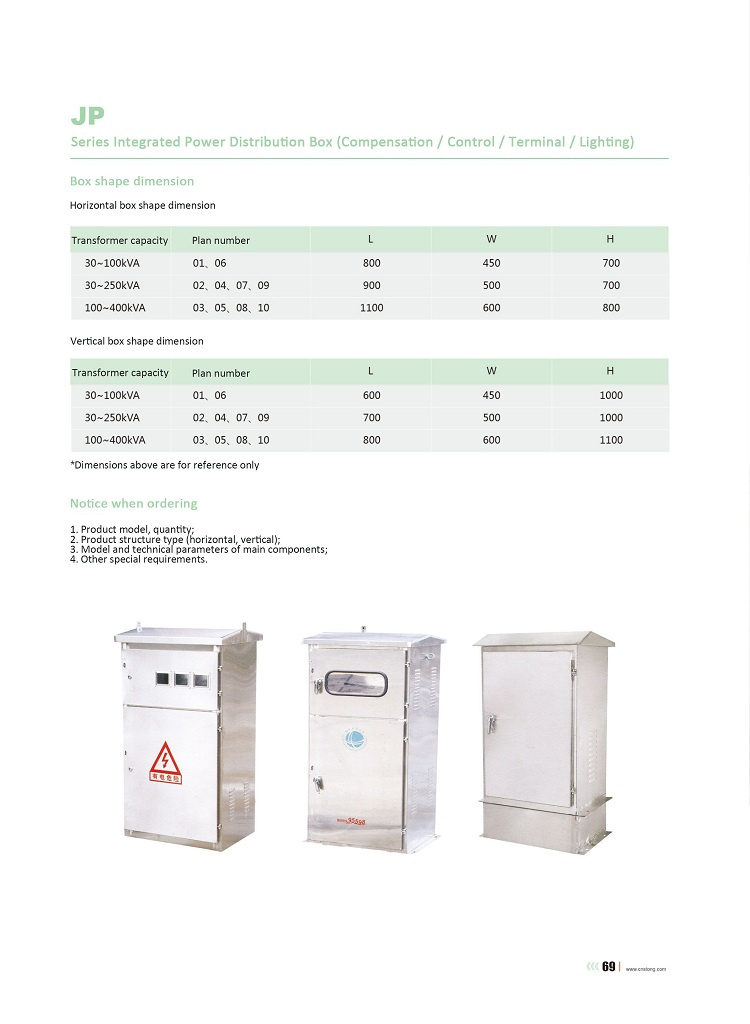

Structure characteristics
The structure is divided into vertical type and horizontal type, the shell is made of 2m high quality stainless steel plate after multiple bending flanging process(or use the stainless steel cutting double-deck sandwich composite plates in honeycomb structure, with flame retardant, environmental protection, heat insulation, anti condensation performance etc.), using special stainless steel welding process, the overall strength of the box body is high, the surface is smooth as a mirror, without leaving a trace of the weld; internal installation beam(plate) is handled with hot galvanizing process, to ensure that no corrosion will appear within twenty years; both the front and rear sides of the box have doors, they are convenient for users doing operation and maintenance, the door is surrounded by high elastic resistance aging sealant, each door is equipped with exposed and hidden two kinds of door locks, the exposed lock is equipped with anti blocking and rust proof cover; the measuring room is full closed with a lead-sealing device; the side of the box has wire feeding cable tube that can prevent rain and foreign matter, at the bottom it has ventilation hole and cable outlet hole, the top is provided with ventilation channel and wire mesh, which has the function of waterproof, dust and foreign matter prevent, and the protection grade: IP54.
Main technical parameters | No. | Name | Unit | Parameter |
| 1 | Transformer capacity | KVA | 30~400 |
| 2 | Rated operating voltage | V | AC400 |
| 3 | Auxiliary circuit operating voltage | V | AC220,AC380 |
| 4 | Rated frequency | Hz | 50 |
| 5 | Rated current | A | ≤630 |
| 6 | Rated leakage current | mA | 30~300 adjustable |
| 7 | Protection level | | IP54 |

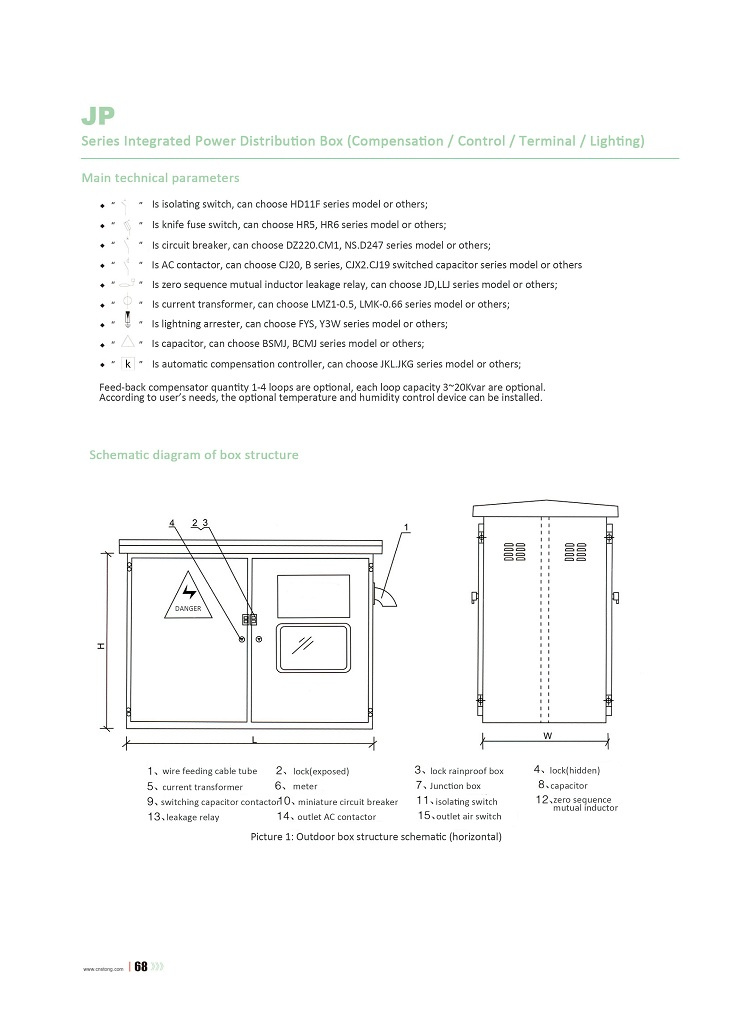

Is isolating switch, can choose HD11F series model or others;
Is knife fuse switch, can choose HR5, HR6 series model or others;
Is circuit breaker, can choose DZ220.CM1, NS.D247 series model or others;
Is AC contactor, can choose CJ20, B series, CJX2.CJ19 switched capacitor series model or others
Is zero sequence mutual inductor leakage relay, can choose JD,LLJ series model or others;
Is current transformer, can choose LMZ1-0.5, LMK-0.66 series model or others;
Is lightning arrester, can choose FYS, Y3W series model or others;
Is capacitor, can choose BSMJ, BCMJ series model or others;
Is automatic compensation controller, can choose JKL.JKG series model or others;
Feed-back compensator quantity 1-4 loops are optional, each loop capacity 3~20Kvar are optional,
According to user's needs, the optional temperature and humidity control device can be installed.
PLEASE FOLLOW MY LINKEDIN | Guanchu Tao / Joimmy Chow |
| Prod Model: |
JP |
| Rated Frequency: |
50Hz |
| Customized: |
Available |
| Attribute: |
Electric Cabinet |
| Function: |
Power Transmission |
| Main Accessory: |
Vacuum Circuit Breaker Vcb |
| Position: |
Outdoor |
| Effect: |
Transformer |
| Type: |
Prefabricated |
| Structure: |
Box |
| Brand: |
Shentong |
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
