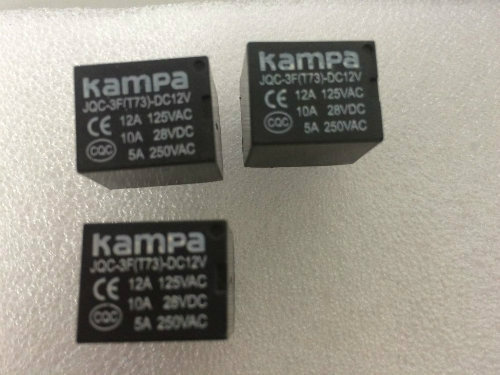

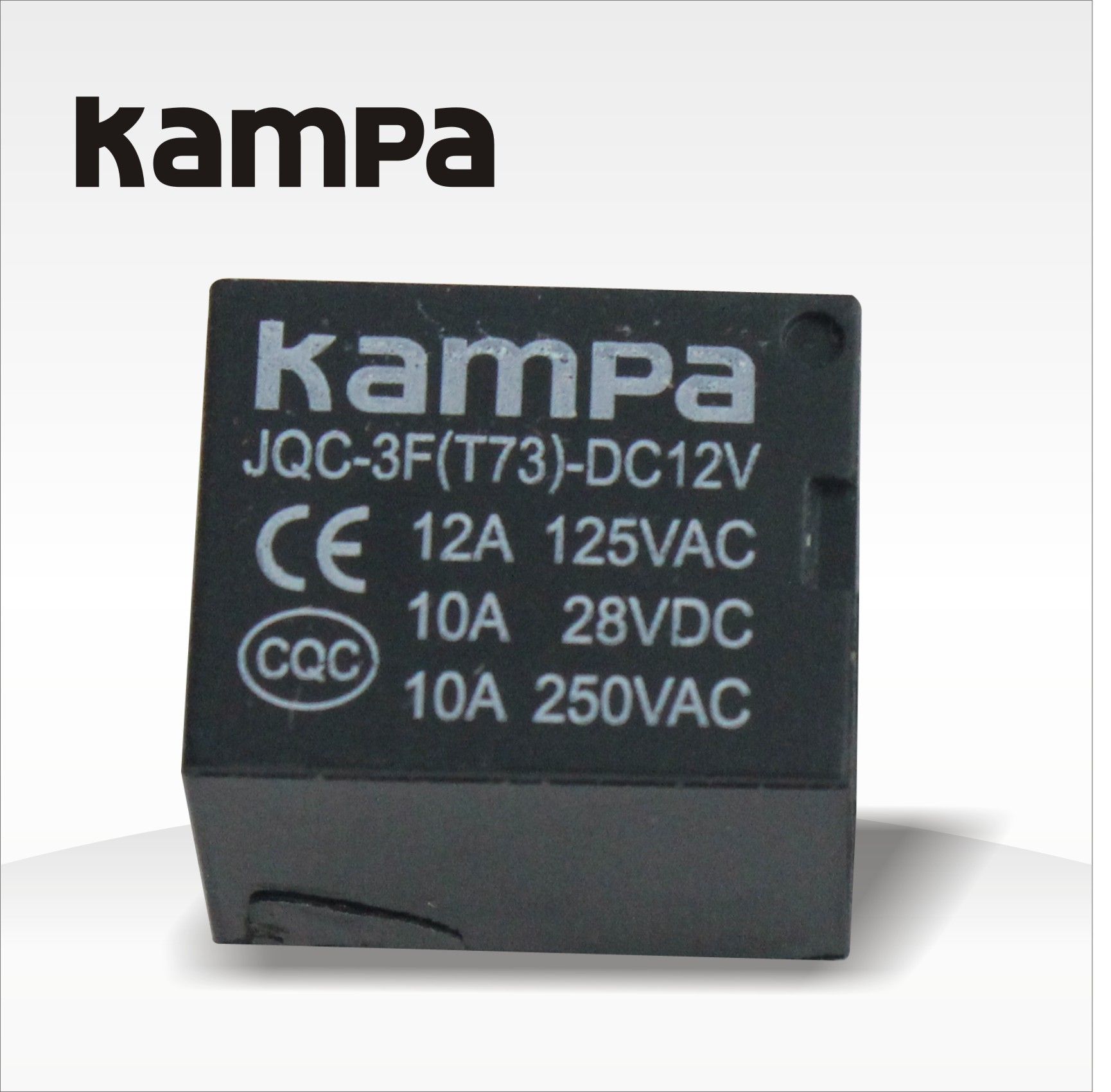

Jqc-3f T73 5 Pins 10A 24V DC Mini Electromagnetic Coil PCB Relay

Name: Jqc-3f T73 5 Pins 10A 24V DC Mini Electromagnetic Coil PCB Relay
Brand: all-electronics-online.com
SKU: 817910165
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	US $ 0.38/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	jqc-3f t73

Product Description

Dimension		19.5mmx15.5mmx16mm
Contact	Contact form	1Z,1H,1D
	Rated load	5A	7A	10A
	Max switching voltage	240VAC/28VDC
	Contact resistance	≤100mΩ
	Material	Sliver alloy
	Electrical life	≥100000
	Mechancial life	≥1000000
Max allowed voltage(23ºC)		≤75%X rated voltage
Release voltage (23ºC)		≥10%x rated voltage
Max allowed voltage(23ºC)		110%x rated voltage
Nominal voltage	DC	DC:3V~48V
Coil power		0.36W,0.45W
Operate time		≤10ms
Release time		≤5ms
Dielictristength	Between contacts	1100VAC/1min
	Between contacts and coil	1800VAC/1min
Insulation resistance		≥100MΩ(500VDC)
Ambient temperature		-55ºC~+70ºC
Ambient humidity		35%~80%RH
Atmosphere pressure		86~106Kpa
Resistance stamping		10G
Viration resistance		10~55HZ
Install model PCB		PCB
Weight		10G
Package	Inner Box quantity	100PCS/BOX
	Carton quantity	2000PCS/CTN
	Meas	2000PCS:420mmx235mmx210mm 1000PCS:295mmx205mmx300mm
	Weight	19.2kg/ctn,22.8kg/ctn

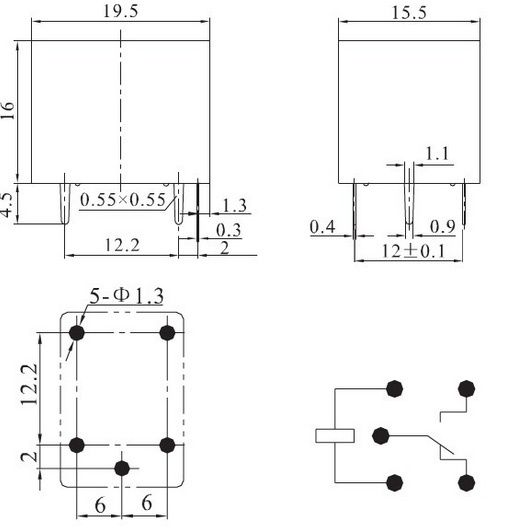

3.Dimension

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
