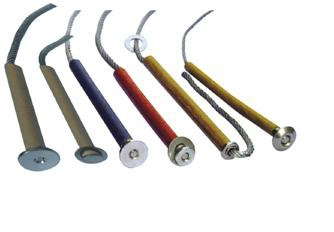

"K" and "T" type fuse link, according to IEC-282 standard. They are suitable for drop out fuse cut out with rated voltage
HIGH VOLTAGE EXPULSION TYPE FUSE LINKS
TABLE OF CONTENTS
ITEM TITLE PAGE
PART 1 GENERAL
1.01 SCOPE E13 1
1.02 STANDARDS E13 1
1.03 SERVICE CONDITIONS E13 2
1.04 SYSTEM CONDITIONS E13 2
1.05 TESTING E13 2
1.06 SPARES E13 3
1.07 PACKING AND SHIPMENT E13 3
1.08 SUBMITTALS E13 3
PART 2 PRODUCTS
2.01 DESIGN E13 4
A. Standardization of Fuse Links E13 4
B. Rating of Fuse Links E13 4
C. Characteristics of Fuse Links E13 4
2.02 MATERIALS E13 4
A. Current Carrying Parts of Fuse Links E13 4
B. Fuse Link Button E13 5
C. Length of Fuse Links E13 5
D. Pull on Fuse Links E13 5
E. Identification E13 5
TECHNICAL DATA SCHEDULE E13 6
PART 1 GENERAL
1.01 SCOPE
This Specification covers the design, manufacturing, testing, supply, delivery and performance requirements of HV Expulsion Type Fuse Links for use by the Electricity Company of Ghana Limited.
1.02 STANDARDS
The fuse links shall comply with the latest editions of and amendments to, the standards/specifications listed below:
IEC - International Electrotechnical Commission
IEC 60282 - High Voltage Fuses Part 2: Expulsion and similar fuses
ANSI American National Standards Institute
IEEE C37.41 - Design for High Voltage Fuses, Distribution Enclosed Single Pole Air Switches. Fuse Disconnecting Switches and Accessories.
ANSI C37.42 - American National Standard Specifications for Distribution Cutouts and Fuse Links.
NEMA National Electrical Manufacturers Association
NEMA SG2 - High Voltage Fuses
1.03 SERVICE CONDITIONS
As in Specification H0C
1.04 SYSTEM CONDITIONS
As in Specification H0C
1.05 TESTING
Type Tests
A. The Supplier shall confirm on the attached schedule that the following tests have been performed according to ANSI C37.42.
1. Melting Current Tests; Table 6
2. Temperature Rise Tests
3. Time/Current Characteristic Tests
B. Type/Design Tests may (at the Purchaser's discretion) be dispensed with if the Supplier/Contractor furnishes evidence to the Purchaser's satisfaction that the relevant tests have already been performed on identical equipment. In this case the Supplier shall provide documentary proof in the form of Certified Test Certificates that the assembled equipment and its component parts been successfully typetested by an independent testing authority in accordance with the relevant clauses of referenced Standards. Test Certificates as evidence of successful completion of type tests shall be submitted as part of the Bid.
C. Inspection
The Purchaser reserves the right to witness the manufacturing process, any type tests specifically performed on the materials to be supplied to Customer and any routine tests required in the manufacture and supply of such equipment. The Supplier shall provide free access to the Purchaser to any site where such manufacturing process, or tests, either type or routine tests are taking place. The Supplier shall bear the in plant costs of such witness. The Supplier shall provide the Purchaser of a schedule of manufacture and tests at least two weeks before the events are to occur.
1.06 SPARES
(NOT APPLICABLE)
1.07 PACKING AND SHIPMENT
As in Specification H0C
1.08 SUBMITTALS
As in Specification H0C
PART 2 PRODUCTS
2.01 DESIGN
A. Standardization of Fuse Links (Mechanical/Interchangeable).
High voltage expulsion fuses shall be suitable for use on the Expulsion fusegears described in the associated specifications H16 and H34.
B. Rating of Fuse Links
The preferred rating of fuse links shall be 3A, 5A, 8A, 16A, 25A, 40A, 63A and 100A at 11kV and 1A, 2A, 3A, 5A, 8A, 16A, 20A and 31.5A at 33kV. The rated current of the fuse link is the maximum current which it will carry continuously without deterioration and undue heating. Supplier shall state on the attached schedule the maximum temperature in oC attained by the fuse link after continuous operation at maximum rating.
C. Performance Characteristics of Fuse Links
1. The fuse links are required to give protection against short circuits. They shall be so rated and shall have such blowing characteristics as to be suitable for selective operations with the fuse links at present in use on the system namely Type K i.e. fast, fuse links to NEMA SG2 and ANSI C37.42 1981.

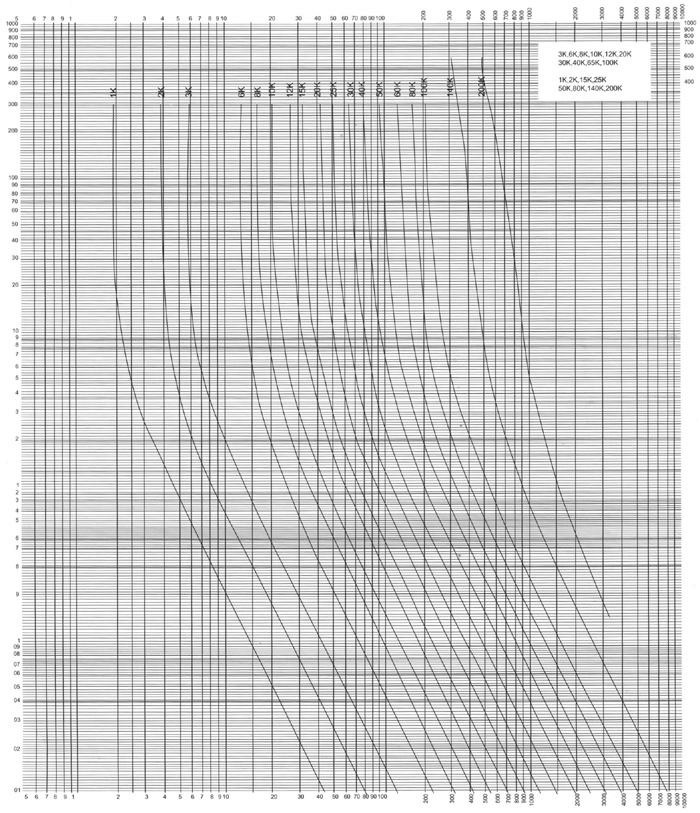

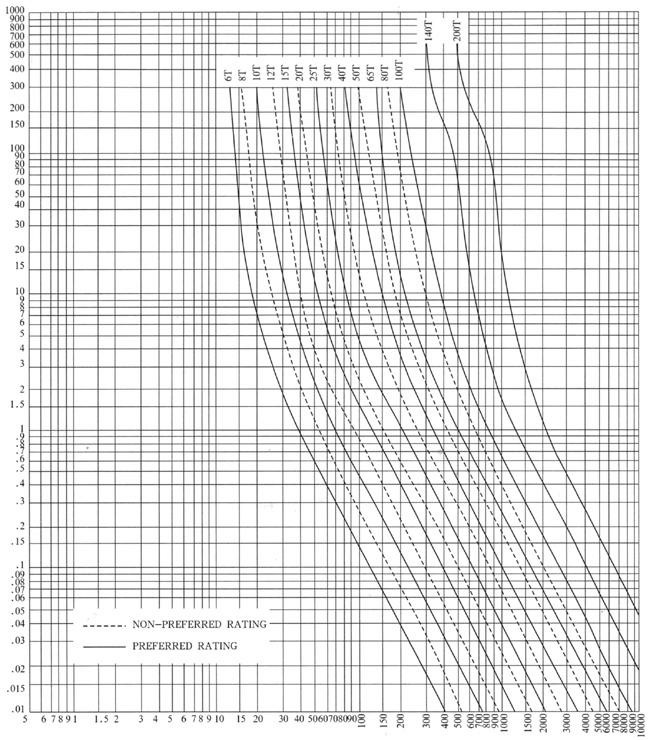

2. The Supplier shall present to the Purchaser timecurrent characteristics of all the distribution fuselinks on offer. The performance characteristics of the fuselinks shall include:
(a) Meltingtimecurrent characteristics
(b) Total clearingtimecurrent
The timecurrent characteristics shall be presented as curves.
The Supplier shall state the minimum and maximum melting currents required to melt the fuse links at the three appropriate time points used in Table 6 {meltingcurrents for TypeK (fast) fuse links) of ANSI C37.42 1981
2.02 MATERIALS
A. Current carrying Parts of Fuse Links
All current carrying parts of the fuse links shall be nonferrous material; the main requirements being resistance to atmospheric corrosion. Tin is not acceptable as a possible element.

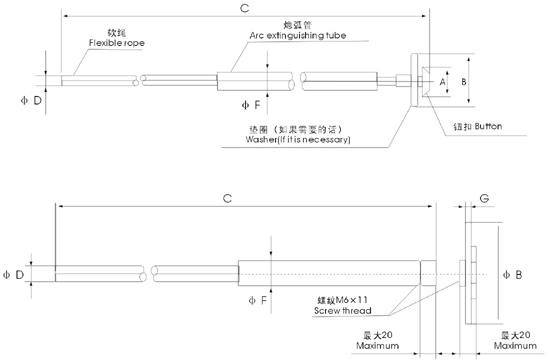

Supplier shall state composition of: 1. Fuse Element 2. Fuse Link B. Fuse Link Button The diameter of the button head cap on fuse links shall be 19.1mm. Removable type button heads are preferred for use with 11kV fusegear. C. Length of Fuse Links The minimum overall length of fuse links rated 1 to 100 amperes shall be: : 510mm for 11kV units per ANSI C.37.42 : 762mm for 33kV units per ANSI C.37.42 D. Pull on Fuse Links (Tensile Withstand Strength) The expulsion fusegear shall operate satisfactorily while exerting a pull of 44.5N on the fuse link per ANSI C.37.42, 3.2.3.4 1981. E. Identification Each fuse link must have stamped on it: 1. Manufacturers name or identifying mark 2. Continuous current rating 3. Type designation, K or T
Our company is one of factory Of OEIpower, Local in No. 15, Tongbai, Industrial Zone, Nanyang City, Hean Province, China, OEIpower to provide complete solutions for the Energy sector, mainly power generation, transmission and distribution markets. OEIpower is able to lead turn-key projects and also cooperate in specific parts of engineering projects. Regarding products, OEIpower is creating a solid sales and distribution network in order to manage the main components involved in the energy sector and markets.
It is a professional Manufacturing. Meanwhile, it is specialized in power transmission and distribution products such as Insulators, Drop-out Fuse, Fuse link, Load Interrupter Air Switchs, Surge arrester, Outdoor Off-Load Isolator Switch Disconnector switch etc. We have won many orders for World markets, Like South Korea, Spain, Malaysia, Thailand, Yemen, etc.
Our most of the products have passed the type test performed by Electric Power lin Aeeseeory Quality Inspection Center of electric Power industry, such as Xi'an High Voltage Research Insitute. And IST off-load switch type IST-12KV/400A already passed CENTRAL POWER RESEARCH INSTITUTE HIGH-VOLTAGE LABORATORY India. Our 12KV 8KA Drop Out fuse already passed the ASTA testing in the year 2015.
Promise of After-sales Service
To ensure the quality of After-sales Service, We have established the After-sales Service Department, and compiled the process of after-sales service, We require service-man should passion, cordial, patient, careful, considerate and instant for customers. Our general service: After receive telephone, the local service-man direct to the site to solve the problem, to security reasonable interest of the customer. When finishing all the work. Service men must fill the bill of customers' feedback suggestion, and ask the customers' signature. Then deliver it to the After-sales Service Department as feedback information, then to the designing and exploiting department. Special condition: Directly send someone from company to dealing, Our products' guarantee days are two years. Within those days, Quality problems of causing by customers. We'll repair freely, Causing by customers using, operating and keeping un-properly, we'll repair permanently and charge properly. Out of guarantee days, we'll repair with charge (fee of component and repairing).
Main Technical Testing Equipment
No.
Name of checkout equipment
1
86-G Type impulse peak Voltage test equipment
2
MY-4KV Type voltage dependent resistor test equipment
3
MDA-30 Type DC parameter test equipment
4
Metal-oxide surge arrester bleeder current test equipment
5
500KV power frequency withstand voltage test equipment
6
HR-3 Type loop resistance test equipment
7
GKC-6 Type High-voltage switch mechanical properties test equipment
8
5A heavy current test equipment
9
YHN-8 Type auto power frequency withstand voltage console
10
CJV-800 Type impulse with stand voltage test equipment
11
CJI-1 Type impulse with stand current test equipment
12
JF-1 Type complementary Metal-oxide surge arrester instrument for measuring partial discharge
13
XR-2 Type power frequency test equipment
14
MD-1A Type Metal-oxide surge arrester electrification test equipment
15
JZ-800 Type AC/DC high voltage test equipment
16
XC -5/220 Type control box
