K Type Thermocouple Extension Wire (KP, KN)

Name: K Type Thermocouple Extension Wire (KP, KN)
Brand: all-electronics-online.com
SKU: 839938075
Availability: InStock
Rating: 4.4 (137 reviews)

Price:	Negotiable/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

K type thermocouple extension wire(KP,KN):
1, NiCr--NiAl(Magnetic)
2, NiCr-NiSi (without magnetic)

The conductor can be solid or stranded. You could customize, like 7*0.52mm.

Except the bare thermocouple wire, if you need insulaiton and shield, please feel free to let us know.

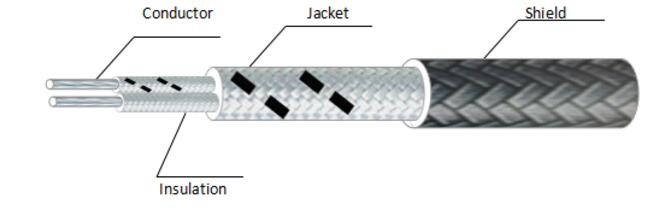

Shield Type K Thermocouple Compensation Extension Wire with teflon silicone fiberglass insulation

Description

Name: Stainelss Steel Shielded Type K Thermocouple Wire

Keywords: k Type Thermocouple Wire

Model No:K KX KC

Size:2*0.5MM2 2*0.75MM2,2*1.0MM2 /2*22AWG,2*20AWG ,2*18AWG

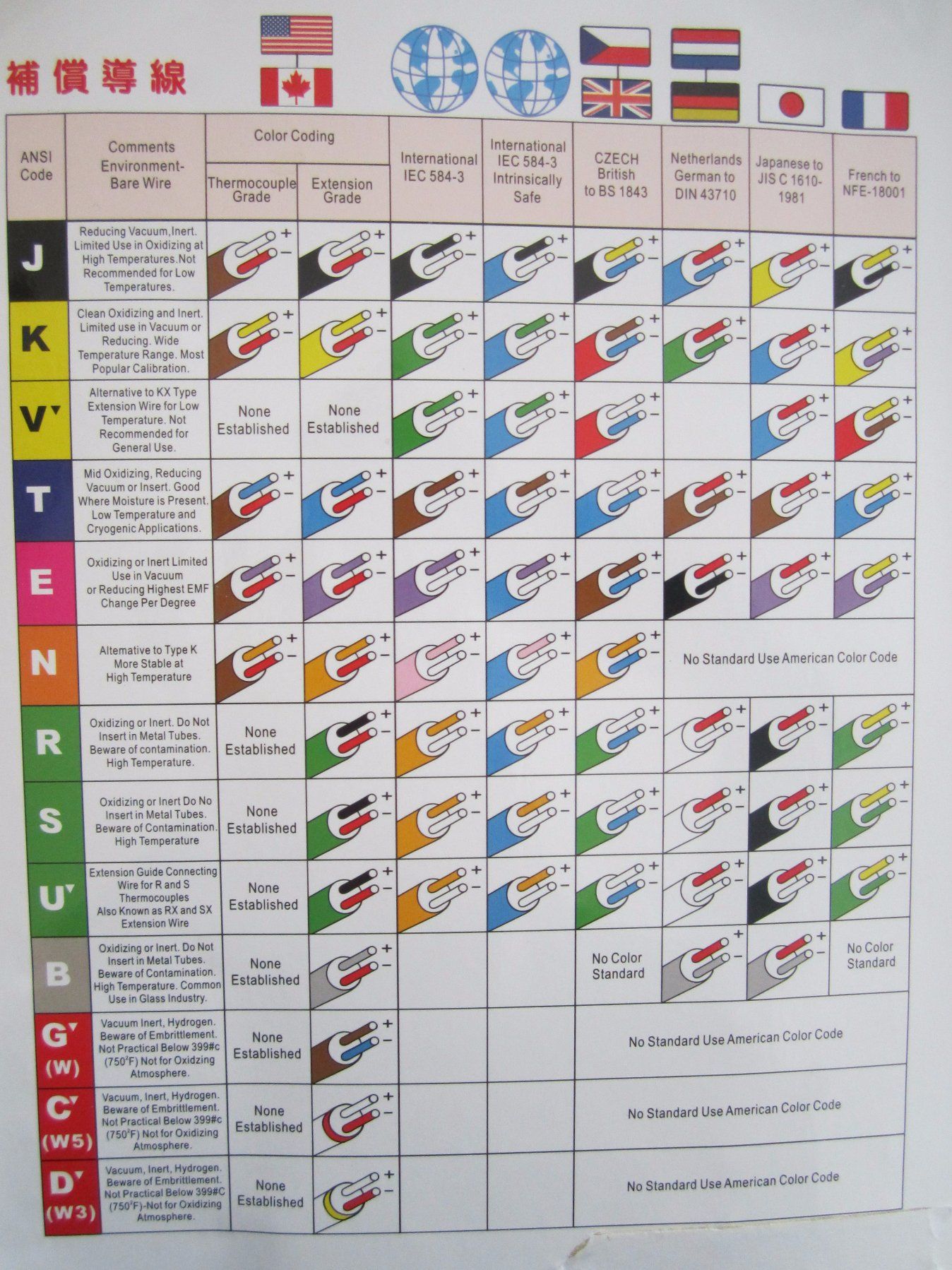

Type	Conductor	Grade	Working temperature		Tolerance
			Insulation material	deg.C
S	Cu, Ni-Cu	A	PVC Silicone: Teflon Fiberglass Kapton	-25~70C -60~200C -60~250C -60~500C -60-300C	+ 3oC
		B			+ 5oC
R	Cu, Ni-Cu	A			+ 1.5oC
		B			+ 2.5oC
K	Cu, Ni-Cu/ Ni-Cr, Ni-Si	A			+ 1.5oC
		B			+ 2.5oC
N	Cu, Ni-Cu/ Ni-Cr, Ni-Si	A			+ 1.5oC
		B			+ 2.5oC
E	Ni-Cr,Ni-Cu	A			+ 1.5oC
		B			+ 2.5oC
J	Iron,Ni-Cu	A			+ 1.5oC
		B			+ 2.5oC
T	Cu, Ni-Cu	A			+ 0.5oC
		B			+ 1oC

Prod Model:	K thermocouple
Diameter:	Customized
Conductor:	Solid or Stranded
Insulation:	XLPE, FEP, Silicone Rubber, PVC, PFA, etc.
Material:	Nicr-Nial

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

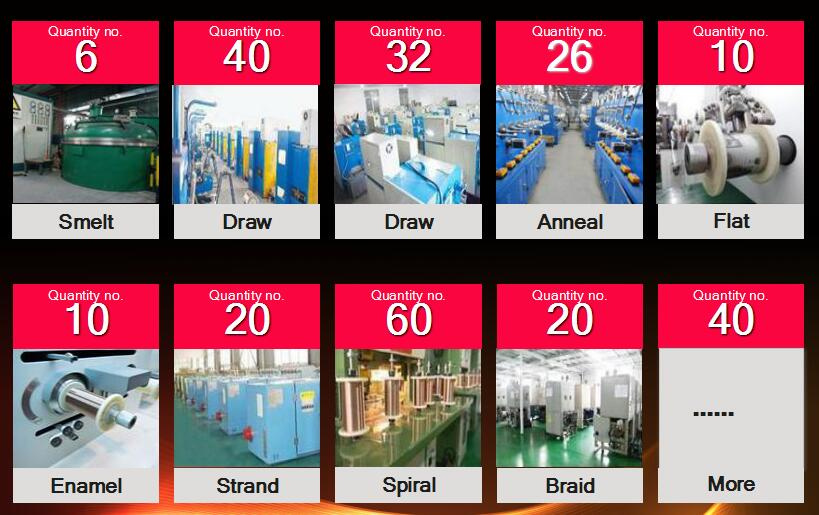

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
