Shenzhen Bonad Instrument Co., Ltd. >> K Type Thermocouple Wire 500mm for Glow Wire Tester

K Type Thermocouple Wire 500mm for Glow Wire Tester

K Type Thermocouple Wire 500mm for Glow Wire Tester
Price: US $ 15-29/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram

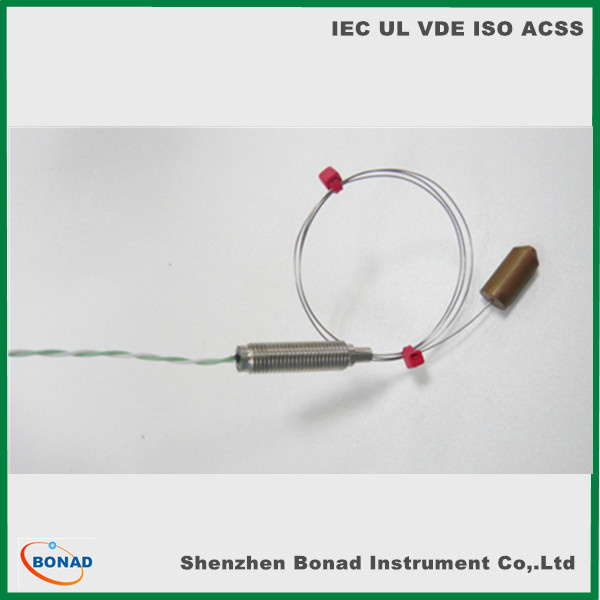

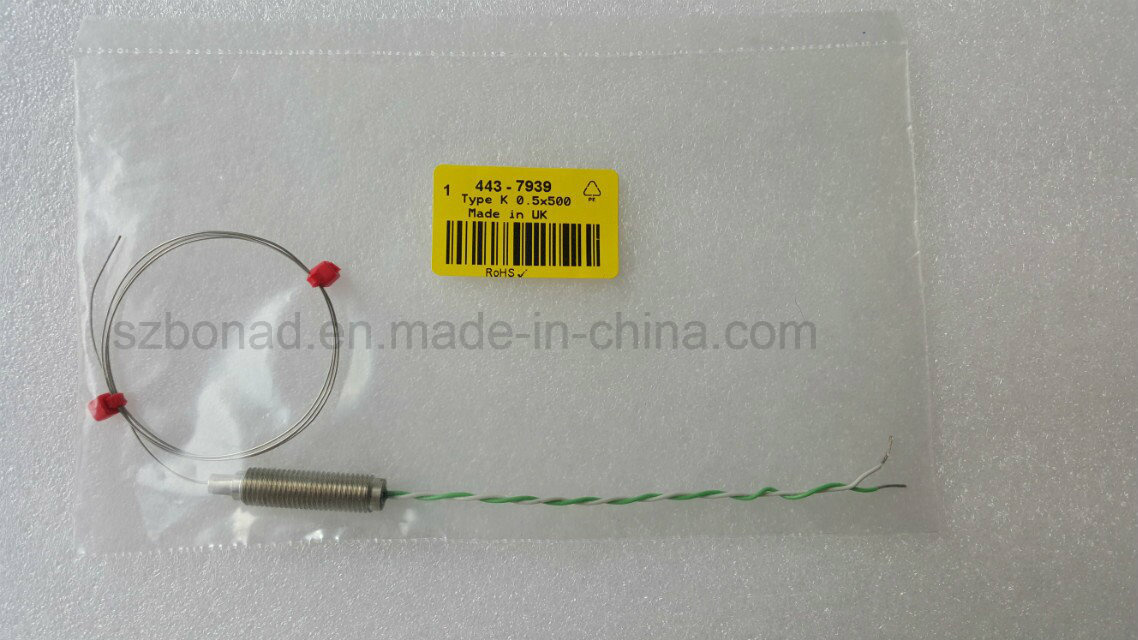

K type thermocouple wire 500mm  for glow wire tester

Specifications:
Sensor Type Thermocouple type K to IEC60584
Probe material 310 stainless steel with welded tip. Mineral insulated
conductors with insulated junction
Tip temperature Rating -40°C to 1100°C
Probe termination Pot seal, M8 x 1.0mm thread, 25mm long
Pot temperature Rating 200°C maximum
Termination lead PTFE insulated tails, 7/0.2mm, 100mm long

Application:
1.Insulation type high temperature resistant armored thermocouples (443-7939,443-7951,443-7919,443-7921)
2,Thermocouple temperature probe portion is made of bent 310 stainless steel sheath ,withexcellent antioxidant properties, suitable for corrosive   medium and high voltate application .

This K type thermocouple is used to glow wire tester,Needle flame tester, horizontal and vertical tester ,wire and cable vertical burning tester and need to provide additionally temperature cooper head for needle flame tester and horizontal and vertical tester



Materialbent 310 stainless steel sheath
thermocouple diameter0.5mm
Length500mm
temperature-40C~1100C
Fixed PositionM8(British Thread)
Reference443-7939,443-7951,443-7919,443-7921


Prod Model: thermocouple
Warranty: 1year
Delivery Time: 3-7days
Standard: IEC60950
Product Name: Thermocouple
Length: 500mm
Thermocouple Diameter: 0.5mm
Temperature: -40c~1100c
Fixed Position: M8(British Thread)
MOQ: 1PCS
Application: Mainly Use for Glow Wire Tester
HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
