Kbz Explosion-Proof Vacuum Feeder Switch for Mining

Name: Kbz Explosion-Proof Vacuum Feeder Switch for Mining
Brand: all-electronics-online.com
SKU: 707817922
Availability: InStock
Rating: 4.5 (75 reviews)

Price:	US $ 1000-10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Introduction of KBZ Explosion-Proof Vacuum Feeder Switch for Mining

Mining explosion-proof vacuum feeder switch is used in coal mines containing explosive gas and coal dust for three-phase isolated neutral power supply system withAC50Hz, voltage 1140V, and rated current to 630A (500A).It can be used as master switch or sub-switch in the first or the end slip distributions can be used as its low-fed Docking with the mobile sustains.

Parameter of KBZ Explosion-Proof Vacuum Feeder Switch for Mining

Type/ Specification	Rated Voltage (V)	Rated Current (A)	Max Analysis Capability(KA) (conΦ=0.35)		Electrical Life(times)	Mechanical Life (times)	Overall Size L×W×H	Weight (kg)
Type/ Specification	Rated Voltage (V)	Rated Current (A)	1140V	660V	Electrical Life(times)	Mechanical Life (times)	Overall Size L×W×H	Weight (kg)
KBZ-500/ 1140(660)	1140	500	9	12.5	3000	15000	950×583×982	500
KBZ-630/ 1140	660	600	12.5	15	3000	15000		500
KBZ-200/ 1140(660)	1140	200	4.5	7.5	3000	15000	791×531×836	320
KBZ-400/ 1140	660	400	7.5	9	3000	15000		320
KBZ9-200/ 1140(660)	1140	200	4.5	7.5	3000	15000	605×493×826	160
KBZ9-400/1140	660	400	7.5	9	3000	15000		160

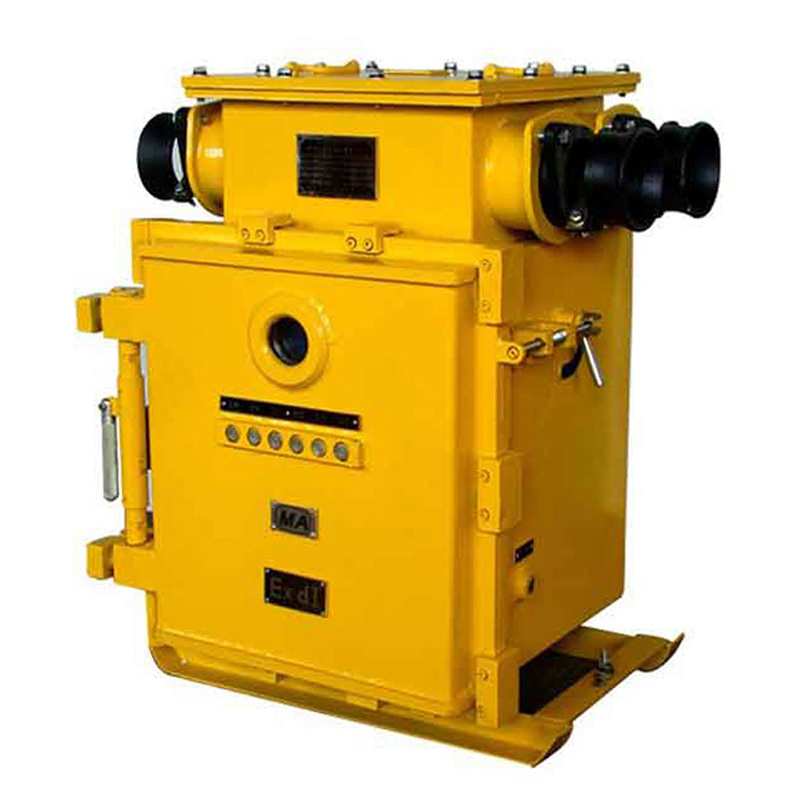

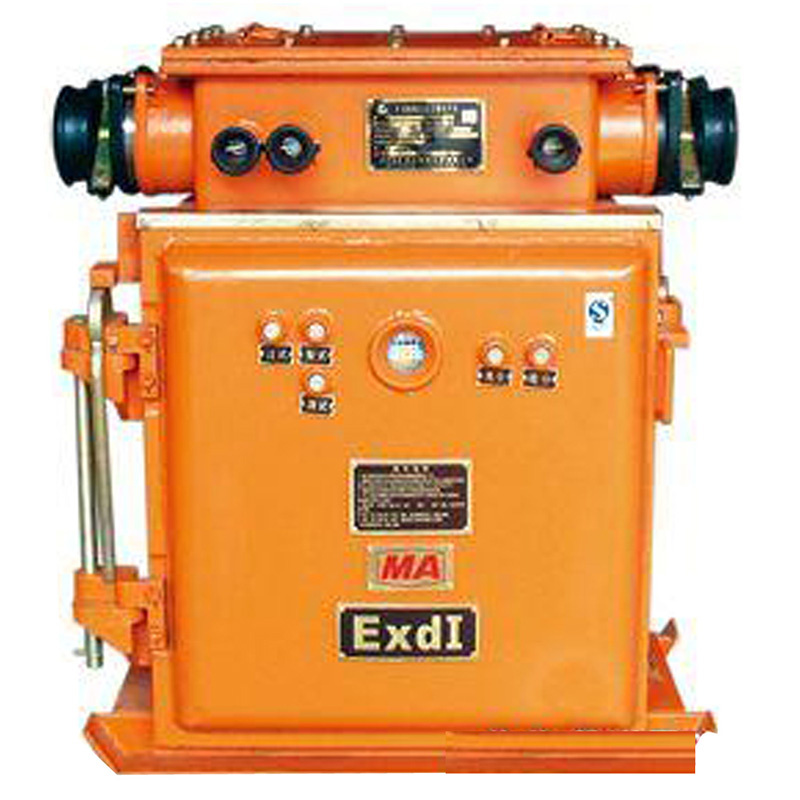

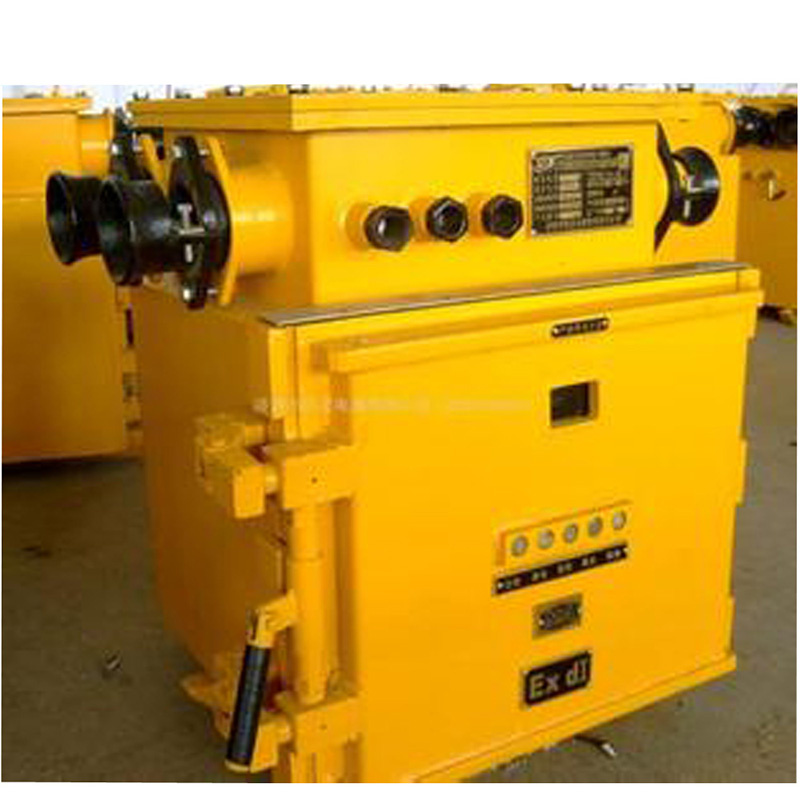

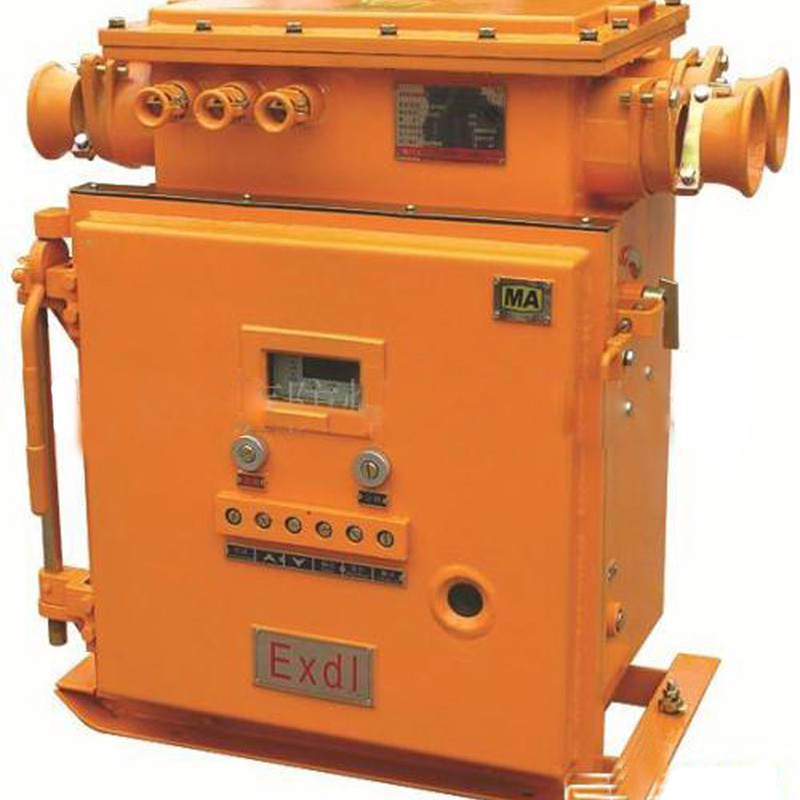

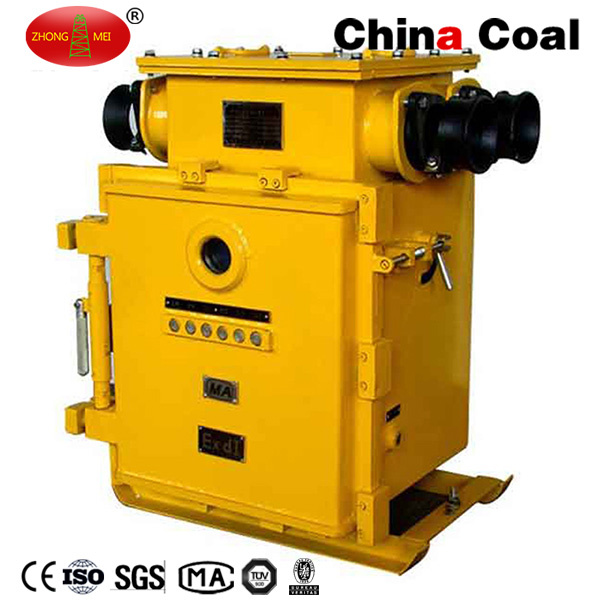

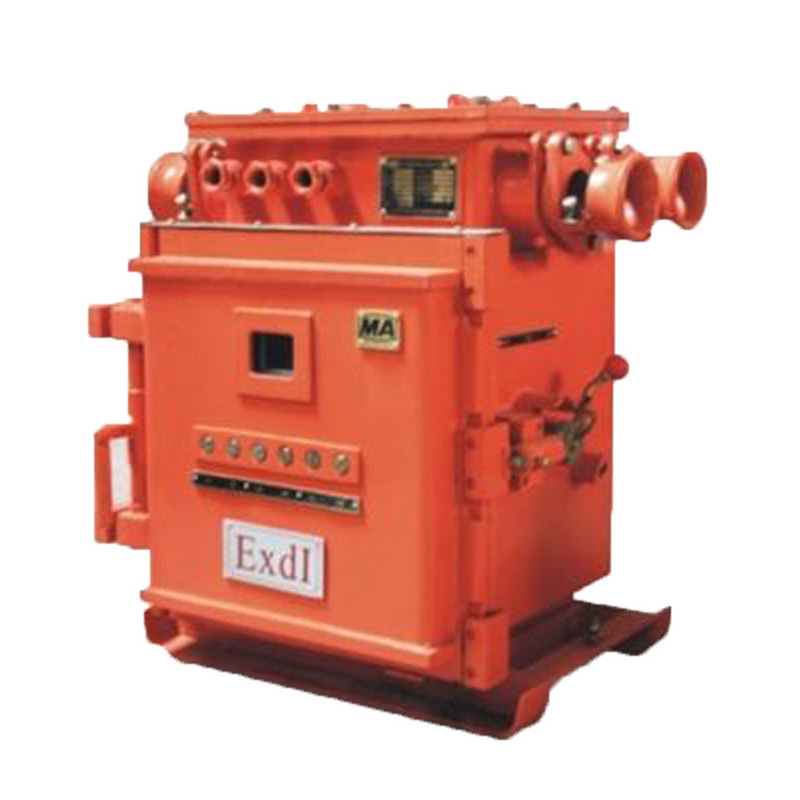

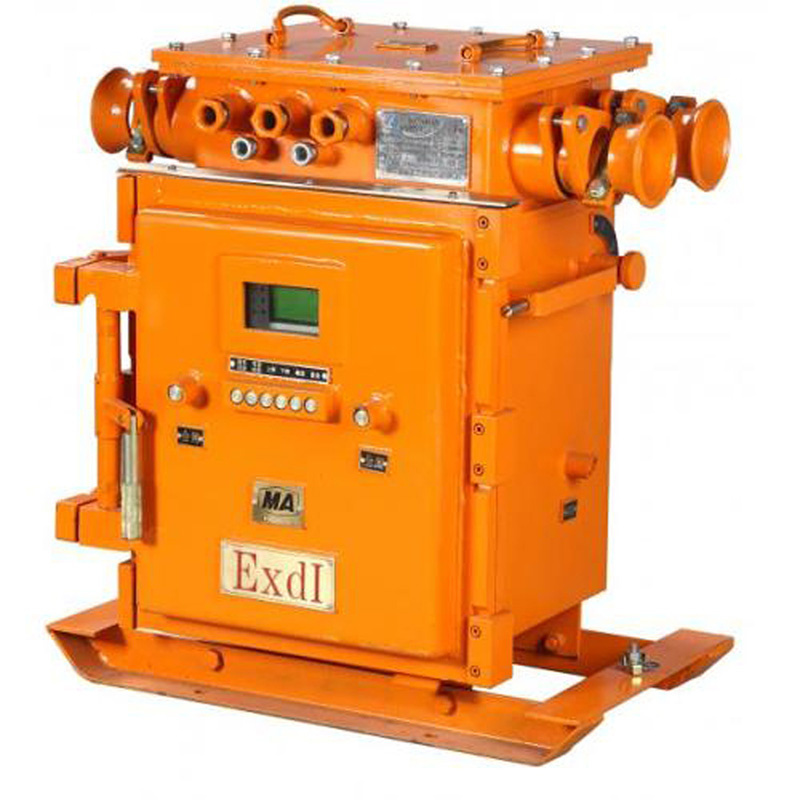

Pictures of KBZ Explosion-Proof Vacuum Feeder Switch for Mining

Brand	China Coal
Packing Details	carton box, plastic bags, wooden cases or as your requirement
Delivery Time	5-10 days after your payment
Payment Terms	TT, Western Union and Paypal
Supply Ability	1000 sets per month
Minimum Order Quantity	1 set
Price Terms	FOB
Port	Qingdao,Ningbo,Shanghai,Shenzhen

Prod Model:	KBZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Kbz-500/ 1140(660)
Rated Voltage (V):	1140
Rated Current (a):	500
Electrical Life(Times):	3000
Mechanical Life (Times):	15000
Overall Size:	950583982
Weight(Kg):	500
Date:	15 Days
Ability:	1000/Month
Condition:	New
Usage:	Check Button
Type:	Vacuum Feeder Switch
Number Of Switch:	Standard
Structure:	Vacuum Feeder Switch
Kind:	Vacuum Feeder Switch
Contact Type:	Standard
Detection Method:	Standard
Brand:	China Coal
