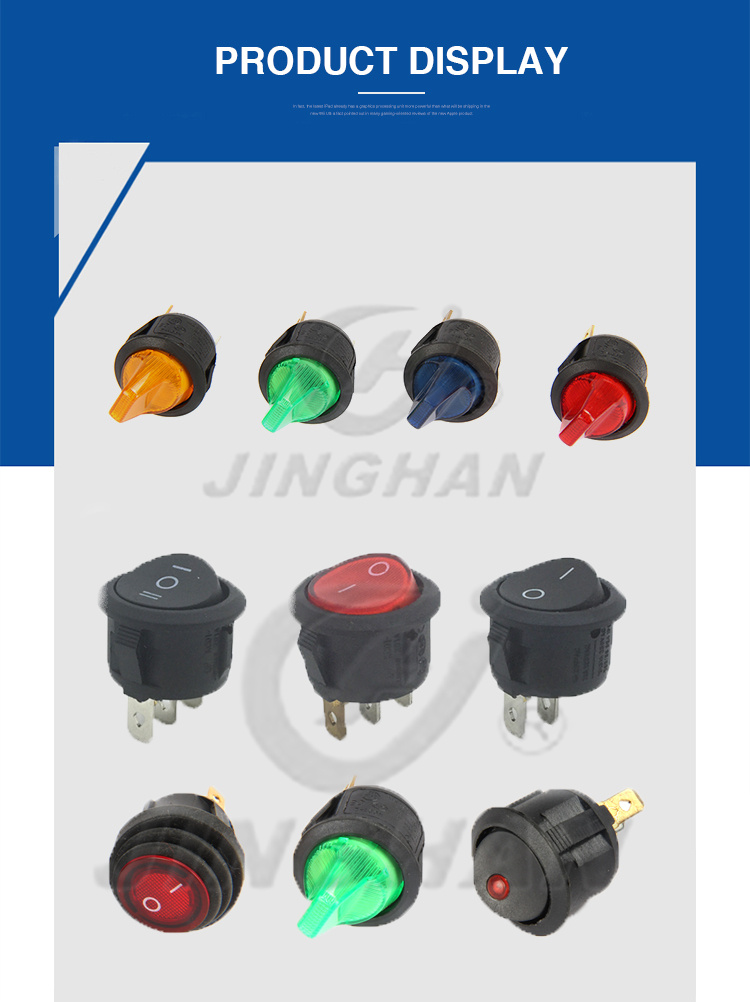

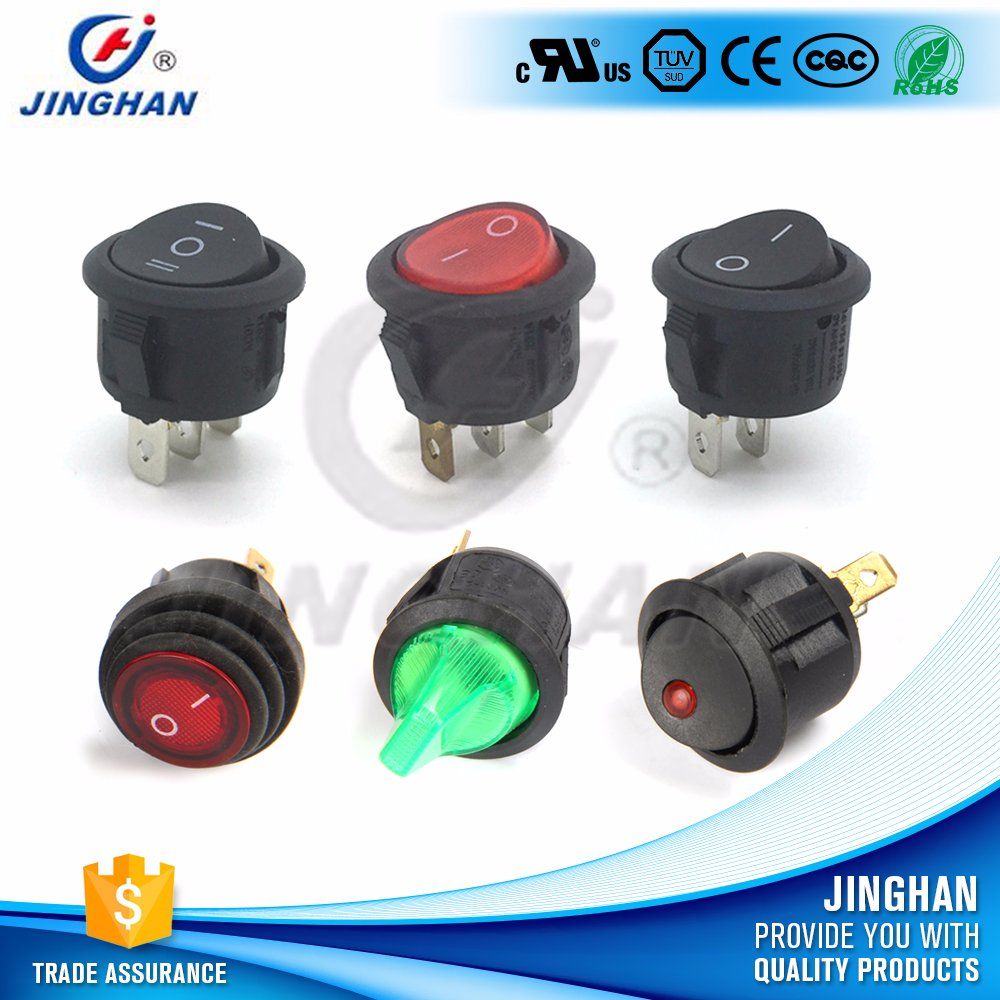

Kcd1-201 Round Shape Rocker Switch Dia: 20mm

Name: Kcd1-201 Round Shape Rocker Switch Dia: 20mm
Brand: all-electronics-online.com
SKU: 816026055
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	US $ 0.05-0.219/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Advantage

NO.1	13 years switch experience.
NO.2	High quality, competitive price, great service!
NO.3	We can provide you with many and different types of switch for your selection.
NO.4	We are professional manufacturer of switch & socket
NO.5	Welcome to visit our own factory in yueqing , zhejiang province , China.

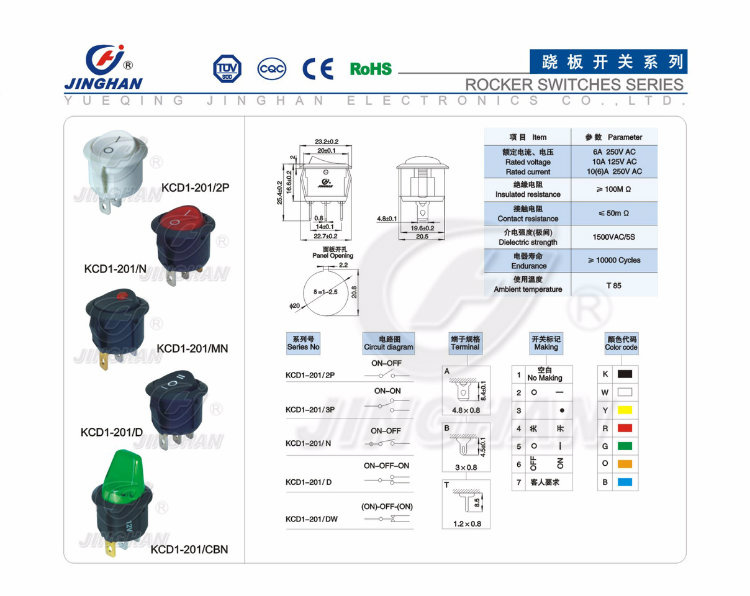

The Main Technical Parameters

Item	Mini ON OFF Rocker Switch
Mterial	PA66 /PC
Rating	10A 125VAC/6A 250VAC
Contact Resistance	≤50MΩ
Insulation Resistance	≥500VDC100mΩ
OperatingTemperature	-25C~+85C
Ambient Temperature	-10ºC~+85 ºC
Dielectric Strength	1500VAC,1 Minute
Type	ROCKER SWITCH
Elactric life	>10000 Cycles
Electrical Life	>50000 Cycles
Terminals & Mid pins	Copper with silver plated
Contacts	Copper with compound silver
Terminals & Mid pins	Copper with silver plated

Prod Model:	KCD1-201
Max. Current:	10A, 6A
Max. Voltage:	250VAC, 250V
Mechanical Life:	10000 Cycles
Contact Resistance:	≤0.01Ω
Insulation Resistance:	≥1000mΩ
Current:	6/10A
Voltage:	250VAC/125VAC
Usage:	Vehicle
Lamp:	With Lamp
Certification:	CQC,TUV,UL

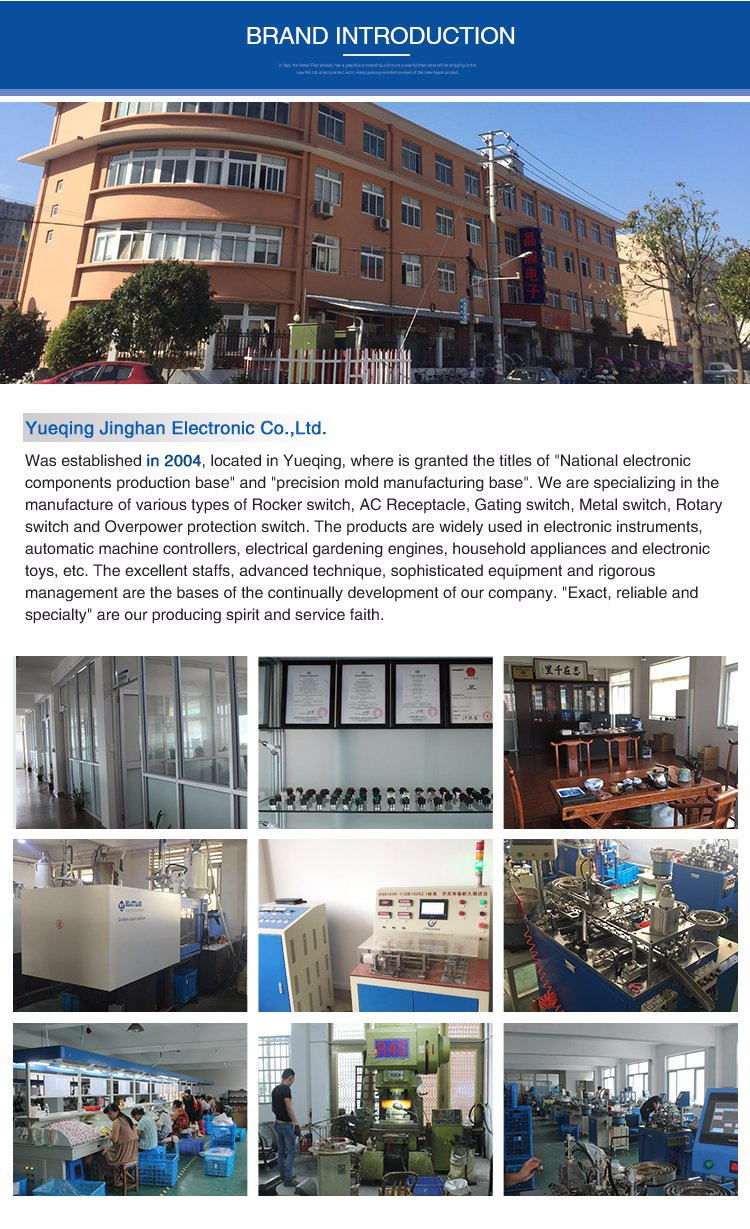

YUEQING JINGHAN ELECTRONIC Co., Ltd

Professional Manufacture of Switch & Socket

Website: http://www.jinghanele.com

Glad to hear that you are on the market for switch, we specialize in this field for 13 years, with good quality and pretty competitive price. Also we have our own professional designers to meet your requirements.

Our rocker switch good quality, plastic material environmental protection and flame retardant. Our rocker switches have pass CE, TUV, CQC, RoHS certifications.

If you want to see more items, please visit our website http://www.jinghanele.com

We have many kinds of switches. What u have seen is only the tip of the iceberg, If you want to know more, feel free to contact us!

Should any of these items be of interest to you, please let us know. We will be happy to give you a quotation upon receipt of your detailed requirements.
