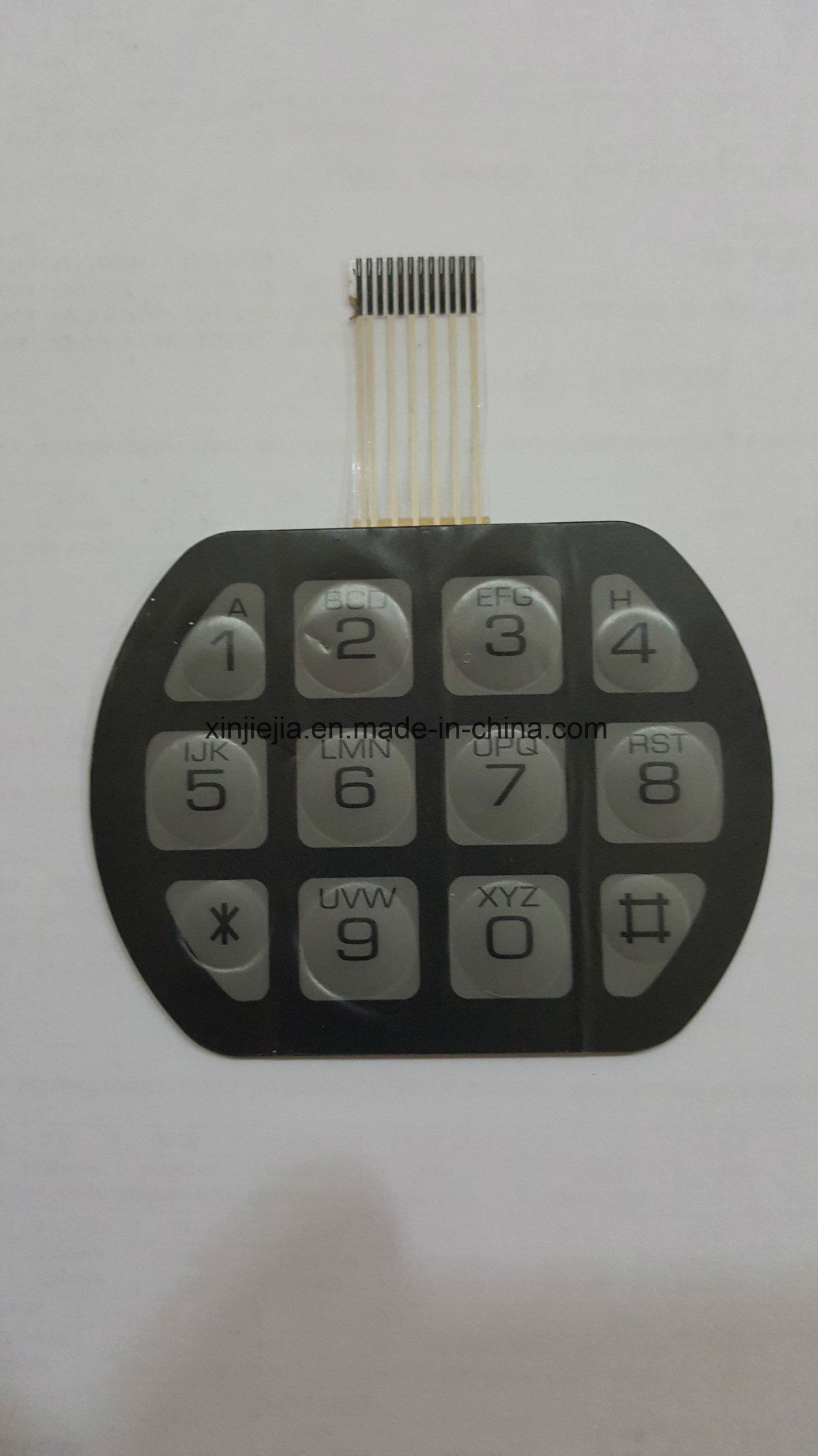

Keyboard Membrane Switch

Name: Keyboard Membrane Switch
Brand: all-electronics-online.com
SKU: 834419895
Availability: InStock
Rating: 4.4 (145 reviews)

Price:	US $ 0.54-0.57/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications

1,materials PET/PC/PVC
2,Waterproof Viscose 3 M
3.The custom of the standard

Specifications:
- Material: Autotex PET F150 and 180 or Polvester UV stabilized V200XE and /PC/PVC
- Customized designs are accepted
- Keypad button material: England acrylic
- Applications: equipment, household appliances, electronic products and more
- Overlay materials: most commonly used base materials are PET thin
- Rear adhesive: 3M9448MP, 3M467, 3M468
- Number keys: 4 keys
- Matching colors: Pantone and RAL color matching system
- Gloss, semi-gloss or matte
- Metal dome tactile
- Standard tolerance: ±0.10 inches
Electric parameter:
- Resistance: 200Ω/cm
- Contact current: 25 to 100mA
- Voltage rating: 2 to 24V
- Voltage insulation: 1,500V
- Voltage endurance: 250V (60Hz/minute)
- Insulation resistance 500V DC at 500MΩ
Physical parameters:
- Active force: 0.3 to 3N
- Lifespan: >1mil (non-tactile)
- Hand speed: ≤5ms
- Temperature: -40 to 85°C
- Humidity: 40/48 hours, 95% RH
- Working altitude: 0 to 4,500m

In order to counter radioelectric and electromagnetic (RFI/EMI/ESD) frequencies that could escape from or get into the keypads, different types of protective shields are available.

Prod Model:	JYJ-005
Type:	Flexible
Application:	Camera
Material:	Pte/PC/PVC/PP/TPU
Contact Type:	Customization
Number Of Switch:	Customization
Detection Method:	Electrical Logging
Brand:	Xinjiejia

In the face of today's high-tech era, in all enterprises like introduction of new and interesting possibilities to play the leading role, and even into the huge human and financial resources to the enterprise product design and packaging. Suitable for high-tech and future trends, as much as possible so that all products to light, thin, short, small fine design.

Cutting-edge industries such as information --- computer, designed by the original Superman heavy, hand-held mini, more communication on the phone, but also towards light, thin, short, small direction of the devlopment of its design eples, in paticular civilian elctrical In this regard, the development isto catch up.

ShenzhenXinjiejia Electron sign membrane switch factory is a professional production of membrane switch manufacturers and their production of thin film switches in full compliance with light, thin, short, small features and high-tech nature.

The Shenzhen Xinjiejia Electron sign membrane switch factory, the general level of quality service for customers, selling its products all over the world, the company has consistently adhered to the first-quality, reasonably priced by manufacturers of deep love.

Shenzhen-a good sign membrane switch factory is very concerned about the requirements of each customer satisfaction and to ensure quick delivery. Please do not hesitate today to contact us information and samples.

Xinjiejia Electron kit is a professional high-tech printing company, the company's products include Ming Ban, circuit boards, membrane switch, touch-screen electronic cold light board, PCB board, silicone, flexible lines, injection and other special printing line, and so on, you are welcome Contact us and work with us.
