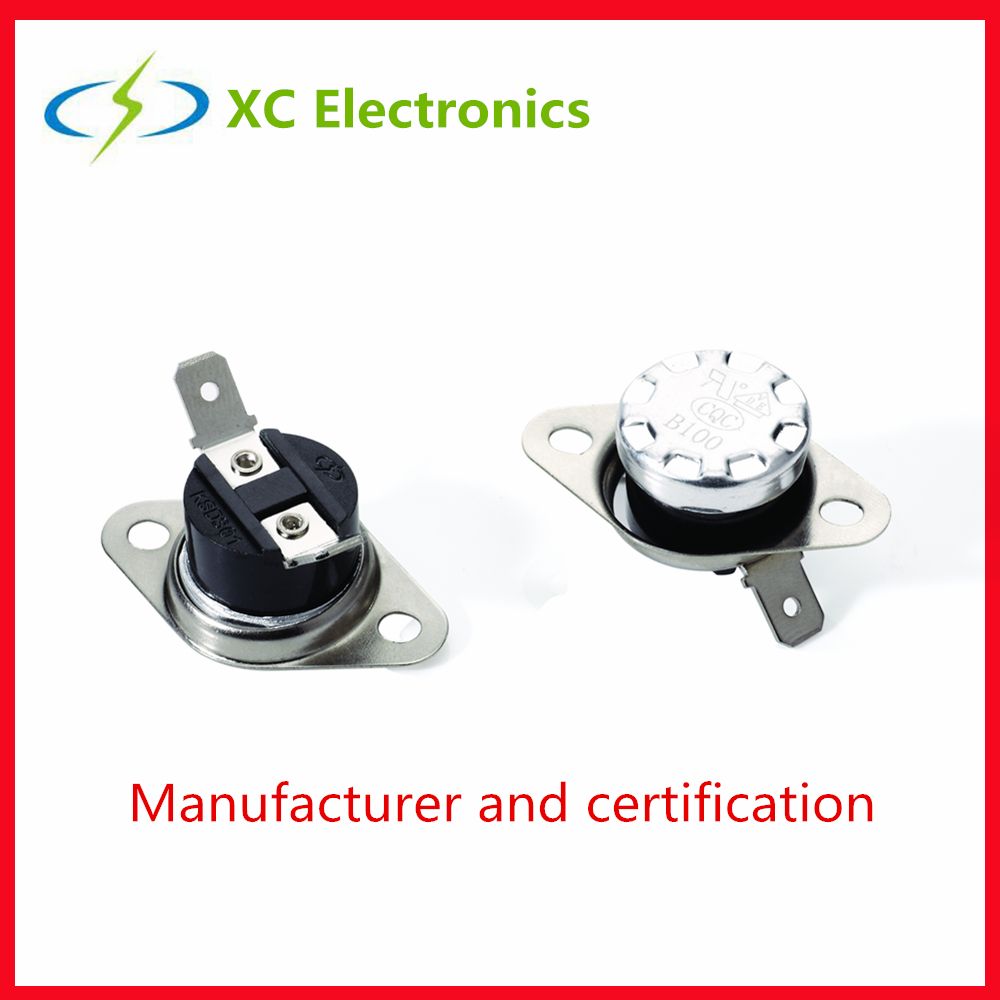

KSD301 Auto Reset Thermostat Switch Bakelite Temperature Controller with UL VDE certification 15A
| Price: |
Negotiable/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
KSD301 bakelite auto reset 15A |
| Reset: |
Auto Reset |
| Shell: |
bakelite |
Product Description
KSD301-A Thermostat is one of our company products with bakelite shell, auto reset and UL VDE certification. The parameters of this model are as follow:
Features:Stabilized performance, high precision temperature controlling, small bulk, light, high reliability and little interference to wireless, etc.Technical parameters:
(Subject to product acknowledgement)1. Electrical performance:
(1). VDE, CQC,UL,TüV AC250V 50∽60Hz 10A(resistant load)
(2). UL AC125V 50∽60Hz 15A(resistant load)
2. Operating temperature range :0-210ºC optional , tolerance : ±2-5%
3. Difference between reset temperature and operating temperature:3-100ºC
4. Terminal type:insert terminal 250#(bowlegged ,0-90ºCoptional); insert terminal 187#(bowlegged ,0-90ºCoptional) thickness :0.5mm,0.8mm optional
5. Durability :
(1).VDE,UL,100,000 cycles
(2).CQC,TüV 10,000 cycles
6. Electrical strength: no breakdown and flas hover under AC 1500V for l min
7. Contact resistance : ≤50 mΩ.
8. Isolation resistance: >100 MΩ.
9. Contact styles :Normal closed type:the contacts open when temperature raises ,and close when temperature falls down, normal open type :the contacts close when temperature raises ,and open when temperature fall down.
10. The shell protection grade :IP00.
11. Grounding type: connect the metal shell of the thermostat with the grounded metal parts.

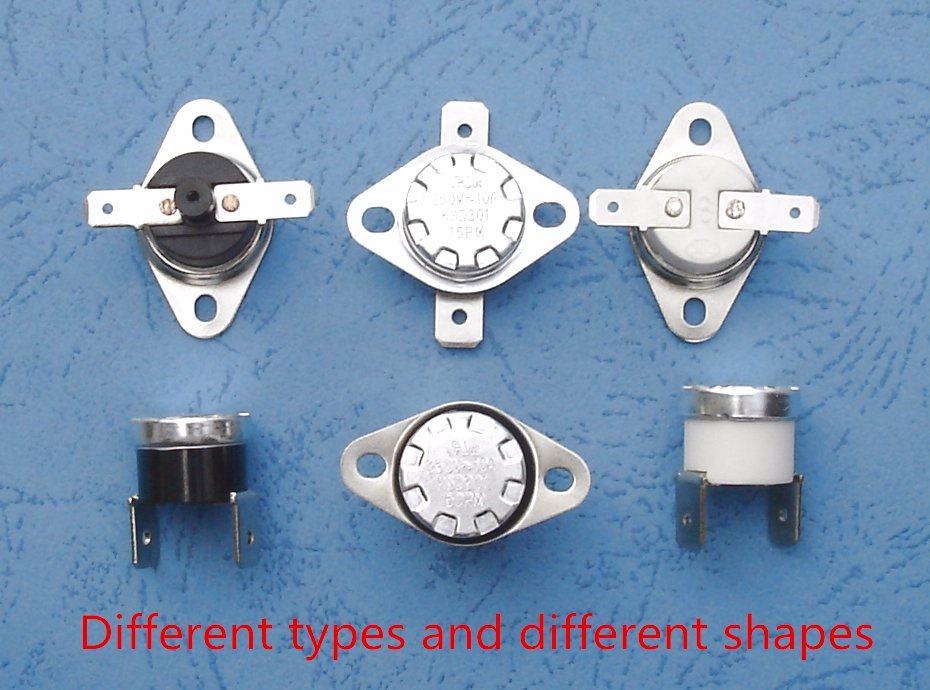

12. Installation type: KSD301 series installing loose bracket ,install small portable rings ,install board portable rings,big aluminium cover with installation hole ,extra long aluminium cover with installation hole.Approvals: UL, VDE, TUVCompany profileXC Electronics(Shenzhen) Co., Ltd. was founded in 1996, located in Shenzhen, China. We produce and sale a full range of fuse tubes, blade fuses, fuse holders, KSD series thermostats, Car thermostats and ect.
We have a factory area of 15000 square meters, more than 600 employees, and all kinds of production testing equipments, annual production capacity reach 1.5 billion pieces. The company passed the ISO9001:2000 quality system certification in 2004, and has got the "CCC", "CQC", "TUV", "VDE", "UL", "UR", "CSA", "PSE", "KC" product safety certifications. At the same time we meet the requirements of RoHS, we passed the TS16949 certification in 2009, passed the ISO14000 certification in 2011 and accessed national high-tech enterprise certification in 2013.

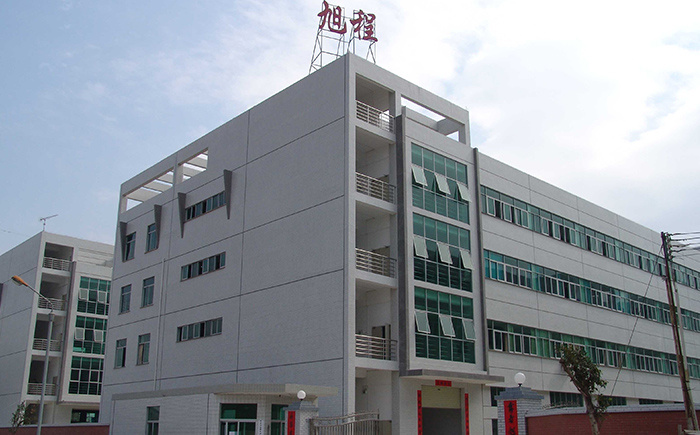

Since the establishment of company, we have established long-term cooperation relationships with many famous enterprises, such as Samsung, ACBEL, Glanze, Greatwall, Hisense, LG, Mideal, Motorala, Panasonic, Philips, ROHM, Skyworth, Bosch, etc. Factory photo

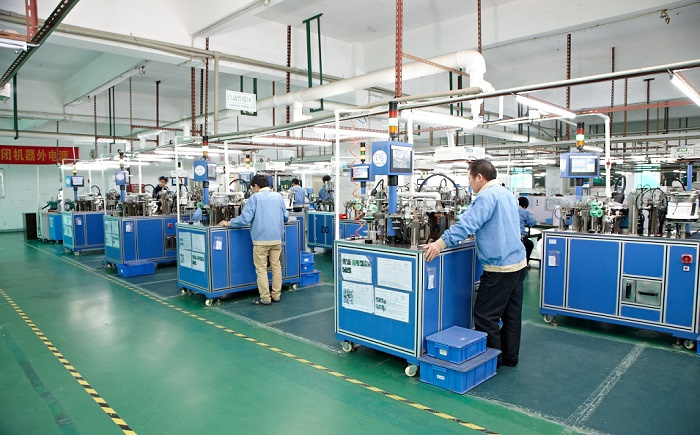

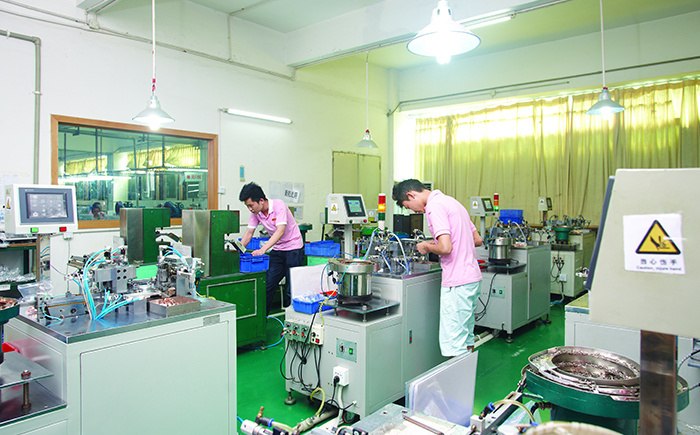

Production workshop
VDE Registered Manufacturer's Laboratory
XC Electronics(Shenzhen) Co., Ltd. Was founded in 1996, located in Longgang district, Shenzhen, solely owned by HongKong XGH Electronics Company. We produce and sale a full range of fuse tubes, blade fuses, fuse holders, KSD series thermostats, SSD series miniature thermostats, Car thermostats and ect.
We have a factory area of 15000 square meters, more than 600 employees, and all kinds of production testing equipments, annual production capacity reach 1, 300 million pieces. Base on the concept of "quality of survival", since the company established, we build a sound management to ensure the quality of each product. The company passed the ISO9001: 2000 quality system certification in 2004, and has got the "CCC", "CQC", "TUV", "VDE", "UL", "UR", "CSA", "PSE", "KC" and other international and domestic product safety certifications. At the same time we meet the requirements of RoHS and other environmental protections, we passed the TS16949 certification in 2009, passed the ISO14000 certification in 2011 and accessed national high-tech enterprises certification in 2013.
Since the establishment of company, we have established long-term cooperation relationships with many famous enterprises, such as ACBEL, Glanze, Greatwall, Hisense, LG, Mideal, Motorala, Neo-neon, Panasonic, Philips, ROHM, Skyworth, T&W, etc. Now we are establishing initial relationships with Bestec, Canon, Chicony, DELL, Delta, Flestronics, FujiXEROX, Haier, Huntkey, liteon, Sharp, Toshiba and so on.
XC company has always pursued the policy of "excellent quality, preferential price, quality service" to meet the needs of customers.
