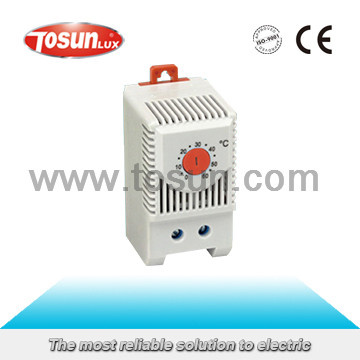

Kto011 Thermostat for Panel Board with CE RoHS

Name: Kto011 Thermostat for Panel Board with CE RoHS
Brand: all-electronics-online.com
SKU: 765113945
Availability: InStock
Rating: 4.8 (122 reviews)

Price:	US $ 3-4/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTO011 KTS011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Eaters, Filter Fans, Switching Signal Device
Sensor Element:	Thermostatic Bimetal
Contact Type:	Snap-Action
Switch Temperature Difference:	7k (±4k Tolerance)
Contact Resistance:	<10m Ohm (Incidental Connection Line)
Operating / Storage Temperature:	-20 °c to +80°c
Dimensions:	603343mm
Protection Degree:	IP20
Installation:	35mm DIN
Usage:	Air Purifier
Certification:	CCC
Control Type:	Mechanical
Type:	Temperature Controller
Material:	Copper

Product Description

Application
KTO 011 thermostat: contact breaker for regulating heaters
KTS 011 thermostat: conatct maker for regulating filter fans and heat exchangers or for switching signal device when temperature limit has been exceeded

Specification

KTO 011 NC (red)	When the temperature reaches the set value, open circuit.
KTS 011 NO (blue)	When the temperature exceeds the set value action, closed circuit.
Switch Temperature Diffrerence	7K(±4K tolerance)
Sensor Element	Thermostatic bimetal
Contact Type	Snap-action
Contact Resistance	<10m ohm(incidental connection line)
Service Life	>100,000 cycles
Max. Switching Capacity	250VAC, 10(2)A
	120VAC, 15(2)A
	30WDC at 24VDC TO 72VDC
Connection	2-pole terminal, clamping torque 0.5Nm max. rigid wire 2.5mm2
Connection	Stranded wire(with wire end ferrule)1.5mm2
Installation	35mm DIN Installation guide
Dimensions	Variable
Fitting Position	60x33x43mm
Operating/Storage Temperature	-20ºC to +80ºC
Protection Type	IP20
