LAN Cable-UTP Cat5e Cable with UL Approval (D135)

Name: LAN Cable-UTP Cat5e Cable with UL Approval (D135)
Brand: all-electronics-online.com
SKU: 609305304
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	Negotiable/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	network cable (D135)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Category:	UTP Cat5e Cable
Conductor Size:	0.50mm-0.51mm Bare Copper or CCA
Certificate:	UL, RoHS
Package:	Drum or Easy Pull Box
Gauge:	23AWG 24AWG 26AWG Optional
No. Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC,LSZH,PE
Approved:	ISO/IEC11801, ANSI/Tia/Eia-568b
Degree:	-20°c to 80 °c
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 5
Certification:	UL
Model:	UTP Cat5e Cable

Product Description

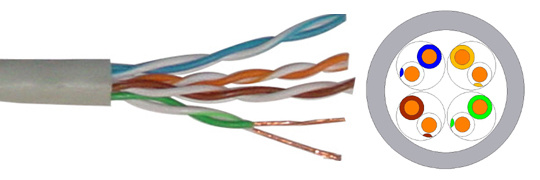

LAN Cable-UTP Cat5e Cable with UL Approval (D135)

Structure:
Bare copper, PE insulation, FR PVC/LSOH PVC RoHS jacket
Standards:
ISO/IEC11801, ANSI/TIA/EIA-568B

Application:
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc

Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Model	CAT5E Cable
Conductor Size	24AWG
Conductor Size	0.45mm/0.48mm/0.49mm/0.5mm/0.51mm
Conductor Material	CCA/CCU/BC
Nuber Of Conductor	4P
Shiled	UTP/FTP
Flammability Grade	CMP,CMX,CM,CMG,MPG,CMR,MPR
Insulation Material	PE,HDPE,LSZH PE
Insulation Thickness	0.91mm
Jacket Material	PVC, ROHS PVC, LSZH PVC
Outer Jacket Thickness	5.2mm
DC Resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance	2.50%
Working Capacitance(Max.)	5.4nF/100m
Insulation Resistance	10000 MΩ.km
Transmission Velocity	65%
Operating Temperation	-40 °C - +75 °C
PVC Jacket Color	As client's request.
Marking On Jacket	On your request (Print your brand)

Established in 1992, Ningbo Fulsan Trading Co., Ltd. is a modern enterprise specialized in research, develop and produce all kinds of telecommunication products. It's main products include HDMI cable, Scart Cable, computer connector, Audio and Video Cable, USB cable, and other accessories. The products are totally exported to the world market especially to US., Europe, Middle East Asia, Russia and has earned high reputation from our customers.

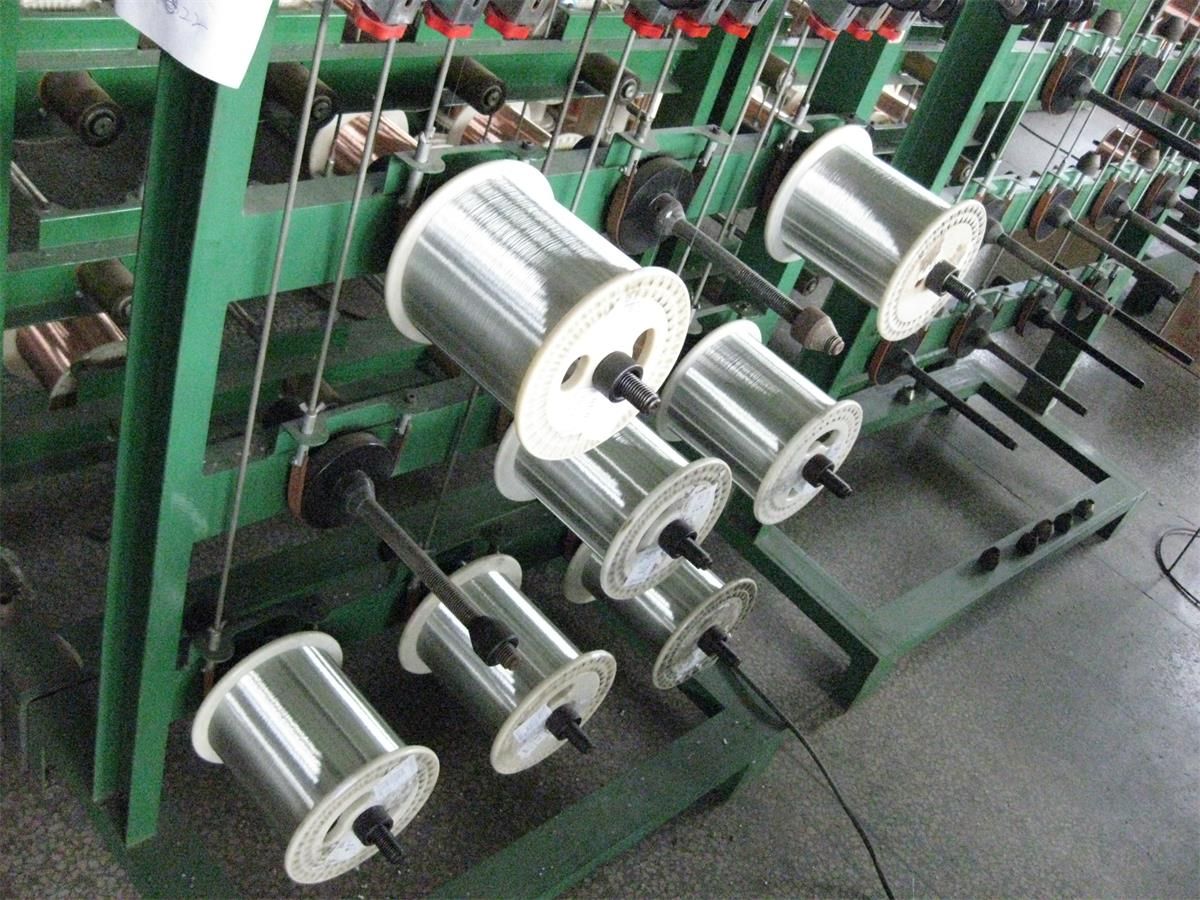

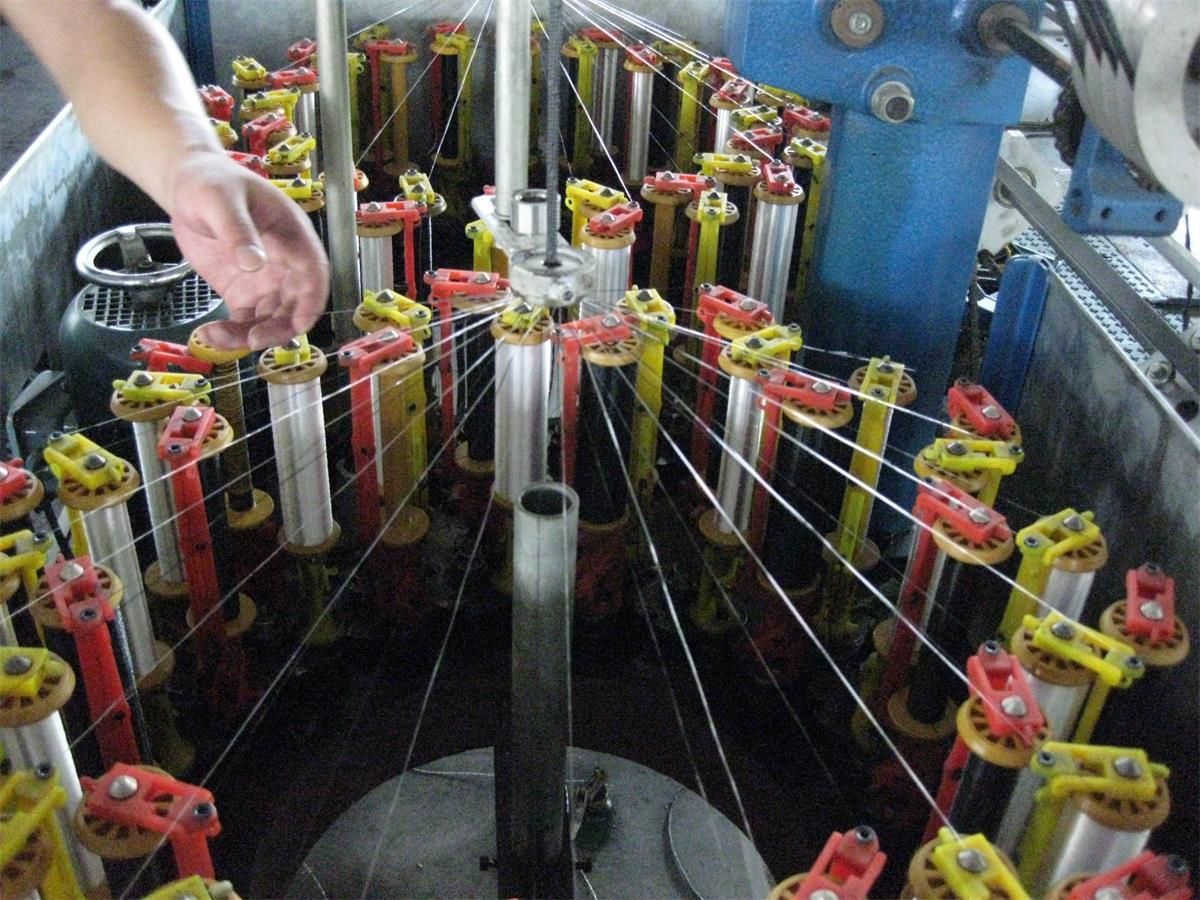

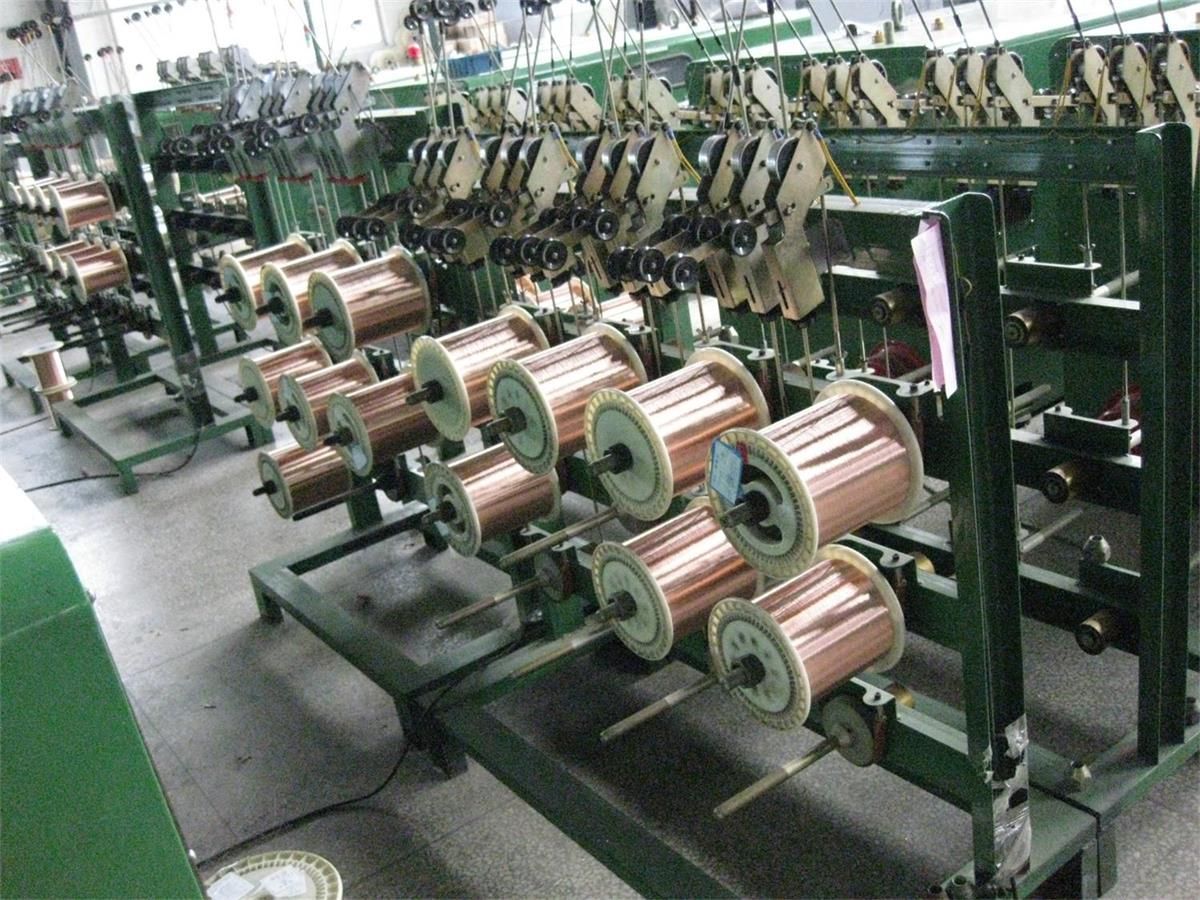

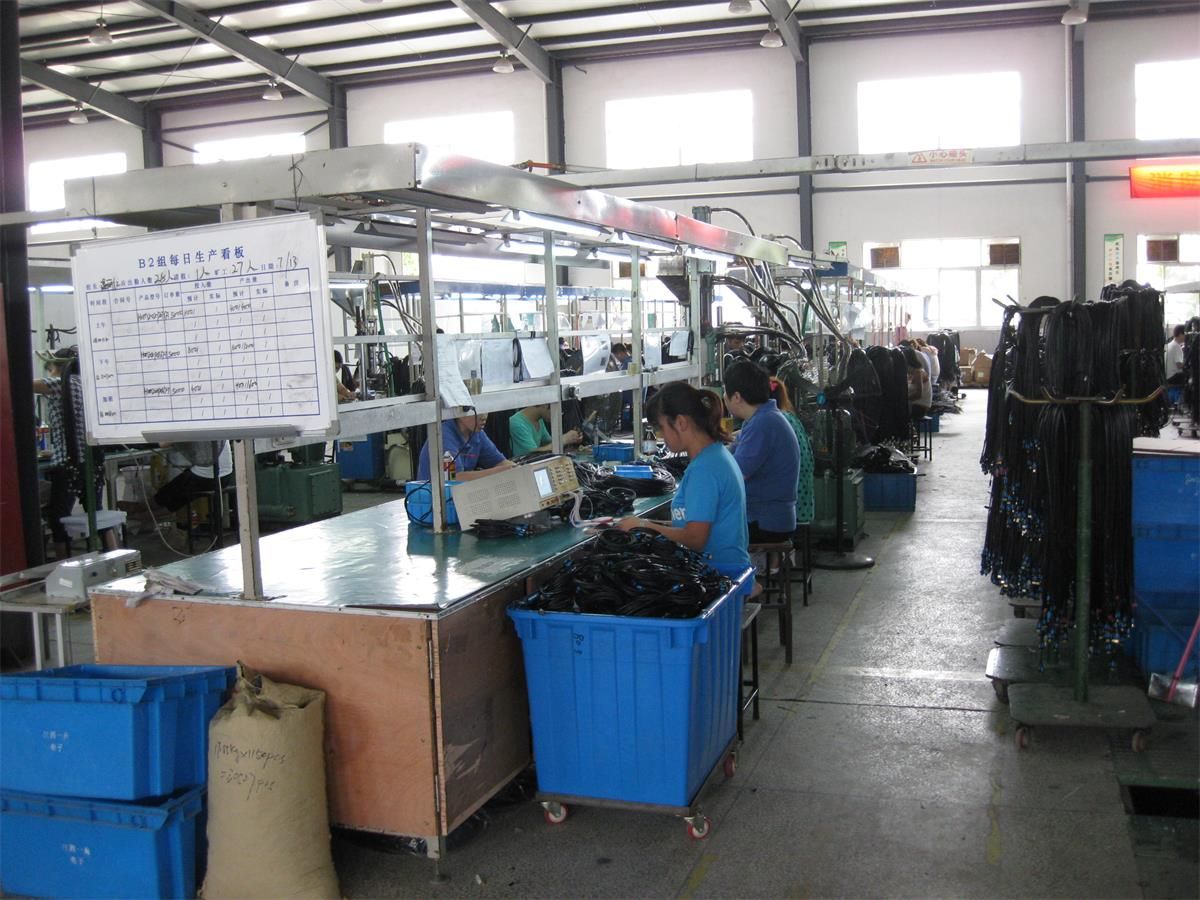

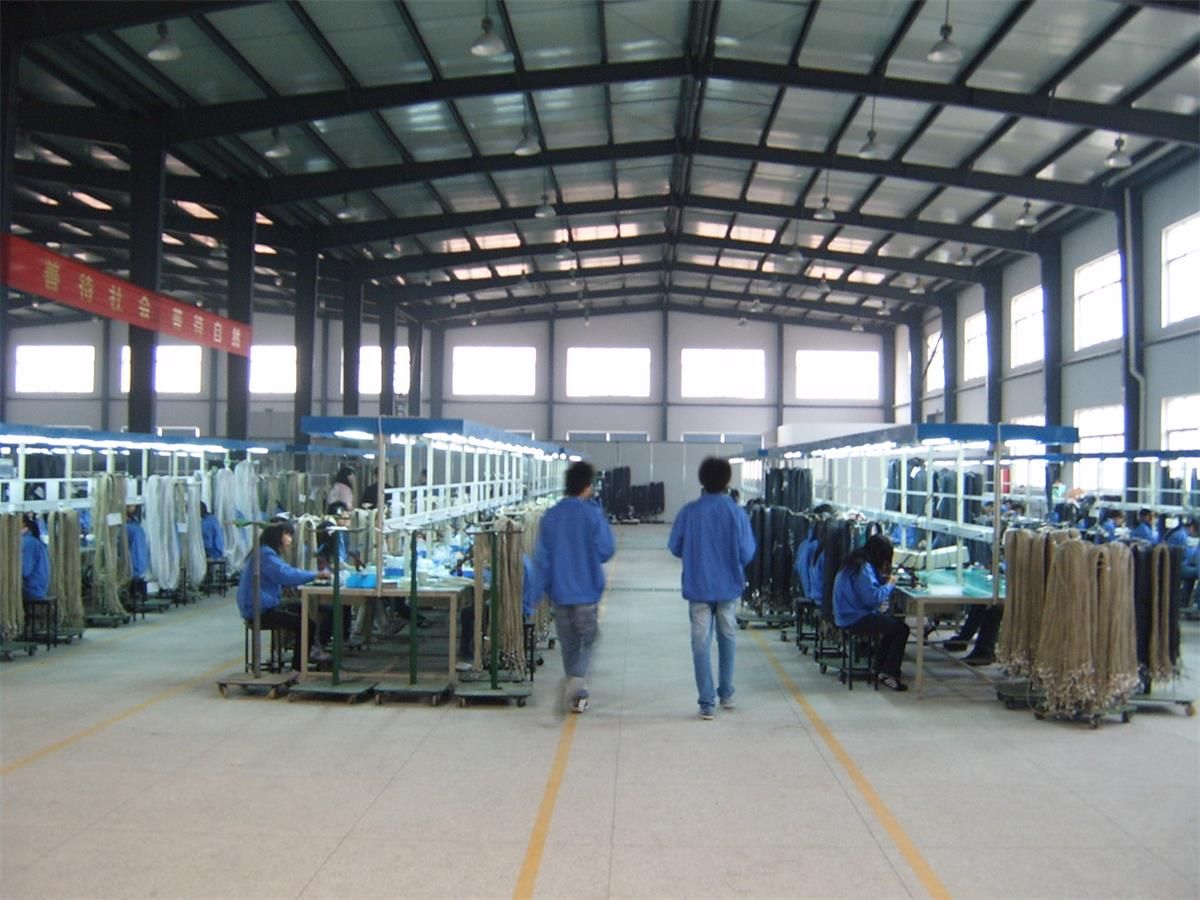

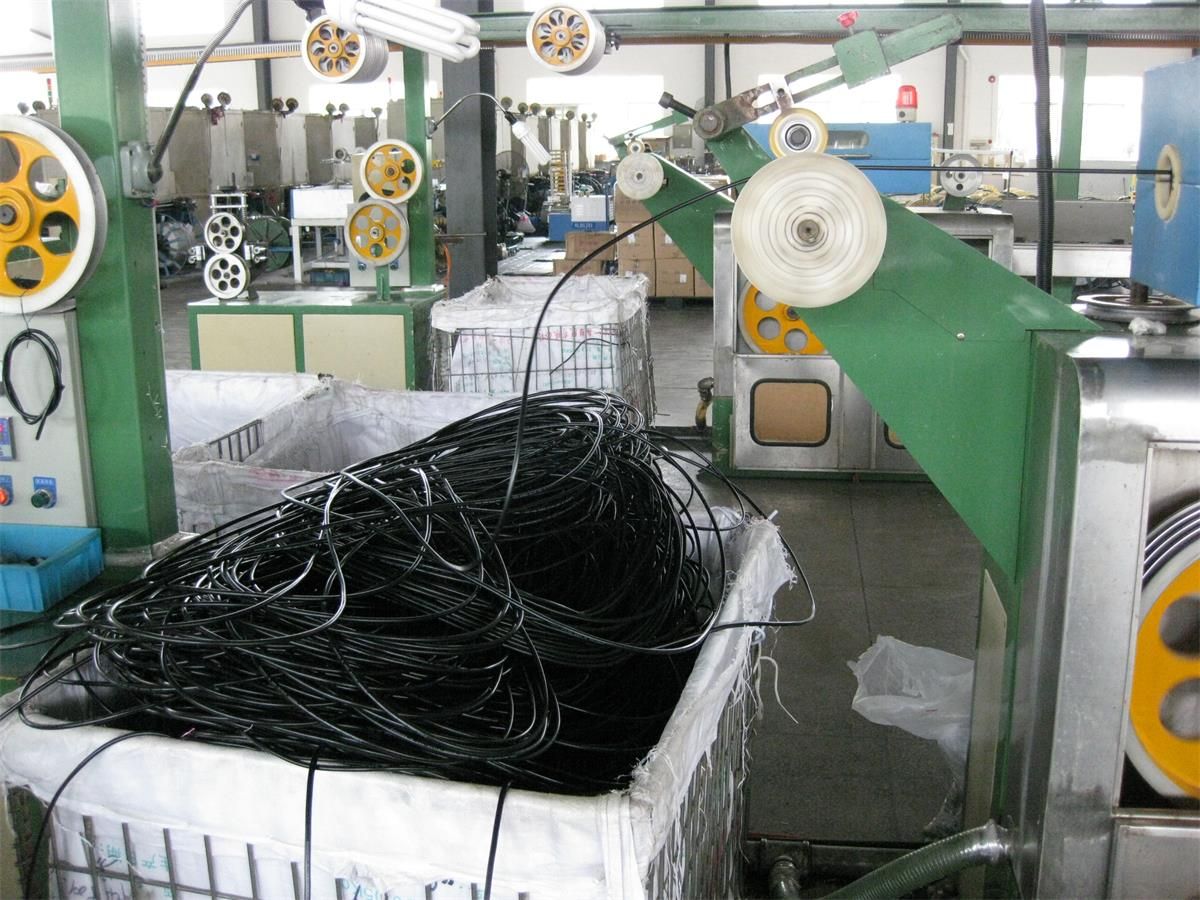

The company owned well-trained and skillful personnel, including outstanding engineer and technician team and managers and quality control team as well as 1200 workers. The company occupied 200, 000 sqms working area and has introduced many modern and advanced manufacturing machines and inspection equipment. The total assets has reached 52 million and was honored as Hi-Tech Enterprise and Strenth model factory by Zhejiang Government.

The principle of our company is " Guided by science and technology, take production and quality as the foundation, investment and management as the guarantee, with the backing of brand and marketing for omnidirectional development"...The company has passed the certification of ISO9001quality system and ISO14001 environment system. All the products are accordance with RoHS Standard while the HDMI cable also got the HDMI Association certification. Our brand " FULSAN" Has won a good reputation among our customers.

Looking into the future, we will always adhere to the managing idea of " Developing the industry, serving and repaying the society". We are willing to advance hand in hand with friends from all walks of life for mutual benefit.
