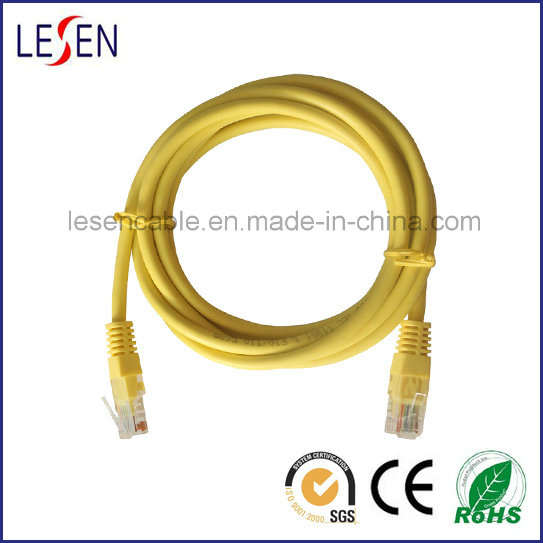

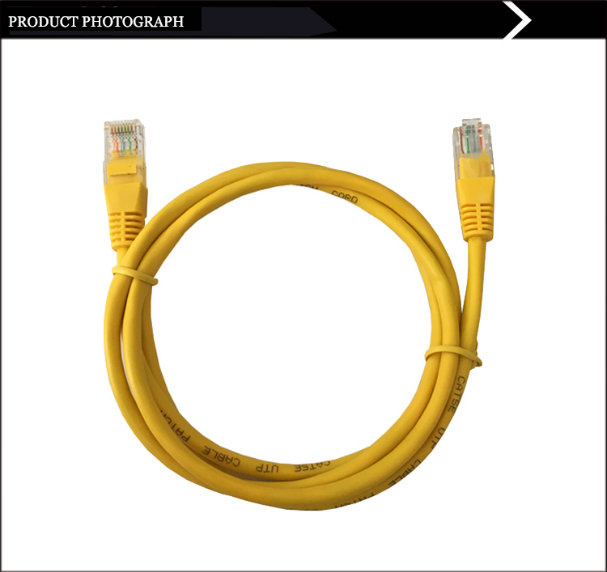

LAN Cable, UTP Cat5e Cable

Name: LAN Cable, UTP Cat5e Cable
Brand: all-electronics-online.com
SKU: 665714642
Availability: InStock
Rating: 5 (32 reviews)

Price:	US $ 0.25/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Models of network cables:
1) UTP unshielded twisted 4 pairs category 5 cable (solid)
2) UTP unshielded twisted 4 pairs category 5 cable (stranded)
3) FTP shielded twisted 4 pairs category 5 cable (solid)
4) FTP shielded twisted 4 pairs category 5 cable (stranded)
5) SFTP shielded twisted 4 pairs category 5 cable (solid)
6) SFTP shielded twisted 4 pairs category 5 cable (stranded)
7) UTP unshielded twisted 4 pairs enhanced category 5 cable (solid)
8) UTP unshielded twisted 4 pairs enhanced category 5 cable (stranded)
9) FTP shielded twisted 4 pairs enhanced category 5 cable (solid)
10) FTP shielded twisted 4 pairs enhanced category 5 cable (stranded)
11) SFTP shielded twisted 4 pairs enhanced category 5 cable (solid)
12) SFTP shielded twisted 4 pairs enhanced category 5 cable (stranded)
13) UTP unshielded twisted 4 pair category 6 cable (solid)
14) UTP unshielded twisted 4 pair category 6 cable (stranded)
15) FTP shielded twisted 4 pairs category 6 cable (solid)
16) FTP shielded twisted 4 pairs category 6 cable (stranded)

Specifications:
1) Structure: Bare copper, PE insulation, FR PVC / LSOH PVC jacket
2) Standards: ISO / IEC 11801, ANSI / TIA / ELA-568A
3) Applications:
1) Used as work-station option to the FD / IDF and other
2) Horizontal cabling, supporting TP-PMD audio, integrated service
3) Digital network (ISDN), ATM 155Mbps, 100Mbps TPDDI, fast
4) Ethernet etc
5) Various colors available.

Outer packing: 305m/pull box.

Cat5e Item NO.	Construction		Conductor		NO. Of pairs	Shielding	O.D./mm
LS-1007	UTP		24AWG	Solid	2		3.0
LS-1008	UTP		24AWG	Solid	4		5.1
LS-1009	FTP		24AWG	Solid	4	AL Foil	6.3
LS-1010	SFTP		24AWG	Solid	4	AL Foil+Cu braiding	6.6
LS-1011	UTP		26/24AWG	Stranded	4		5.1
LS-1012	FTP		26/24AWG	Stranded	4	AL Foil	6.3
LS-1013		SFTP	26/24AWG	Stranded	4	AL Foil+Cu braiding	6.6

Competitive advantages
We have been in this field for 11 years and we are a professional manufacturer.Our products are of high quality and inexpensive.They have been exported to Korea,German,America etc.
We are trying our best to improve our products and service to make our customers satisfied!

Prod Model:	Network Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Various
Certificate:	RoHS,SGS
Application:	Network
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 5
Certification:	RoHS

Established in 2005, Changzhou Lesen Electronics Factory is a professional manufacturer which produces HDMI DVI cables, USB cables, displayport cables, audio and video cables, LAN cables, alarm cables, speaker cables, telephone cables and various connectors.

Our products are mainly exported to America, German, Sweden, Russia and other European countries. We have a strong technical team, advanced production techniques and equipment as well as state-of-the-art testing instruments. We are able to improve existing product lines and create new series. Thus we are well equipped to complete OEM orders, designing and manufacturing products according to clients' Specific requirements. Moreover, we can control the quality better and give our buyers the best price and the best service.

Welcome to visit our company in Changzhou City - two hours way from Shanghai. We are looking forward to cooperating with all the customers in the world.
