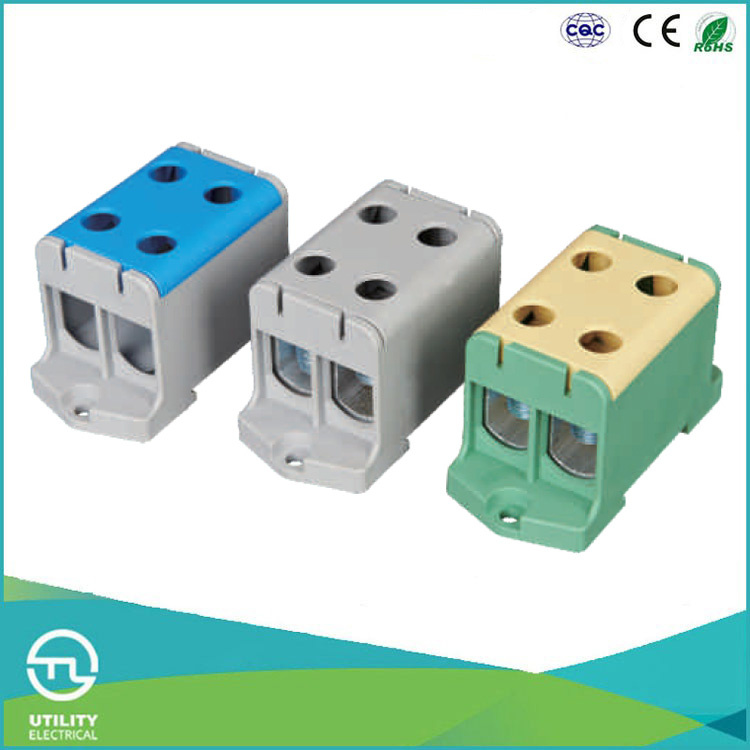

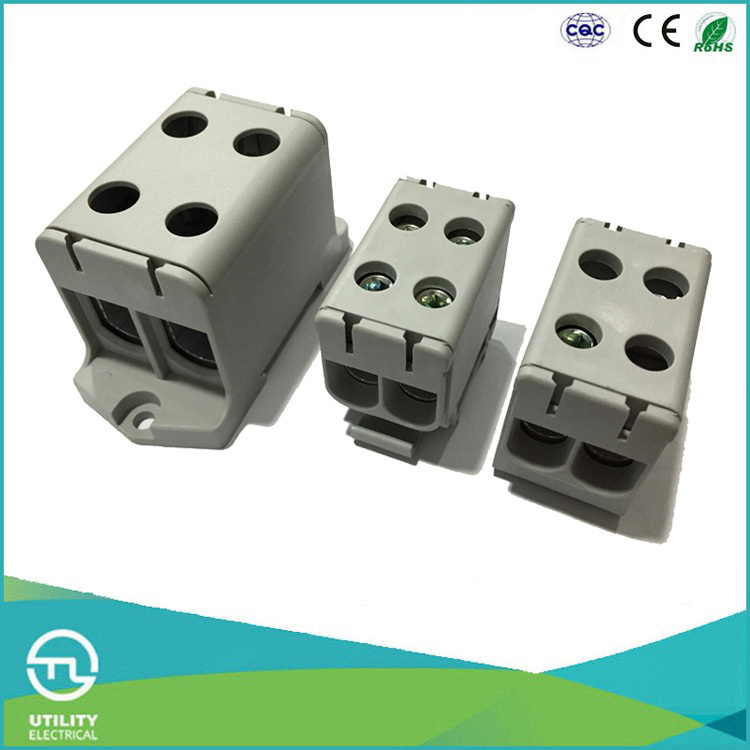

Large Current Market Al/Cu DIN-Rail Jut10-95/2 Universal Terminal

Name: Large Current Market Al/Cu DIN-Rail Jut10-95/2 Universal Terminal
Brand: all-electronics-online.com
SKU: 806166045
Availability: InStock
Rating: 4.7 (99 reviews)

Price:	US $ 2.254/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

New products China Supplier JUT10-50/2 10-95/2 Din Rail Mounting Distribution Terminal Block ConnectorS

Features:

Advantage:High contact pressure,reliable connection.Screw retention,shaker proof.

Application:European terminal block is one of the most widely used product which can be assembled on Din Rail.When screw tighten,the connecting wire will be fixed on terminal block

Model No.	JUT10-95/2
Item name	Universal Terminal for aluminum conductors
Color	Grey ,Blue and Yellow /Green as photo,or OEM
Conductor Cross-Section	16-95 mm²
Nominal Voltage /Current	800V/220A
Tigten Torque(Nm)	20Nm
Conductor Size	4/0-4
Mounting	Din rail
Screw	Hexagon 5mm
Housing	Polyamide
Pole	1 pole
Standard	EN61238-1, EN60947-7-1
Operation temperature	-40ºC to +105ºC
Payment term	A.Below US$300,western,paypal accepted B.Above US$3000,bank account
Certificate	CE/RoHS/SGS/CCC/CQC approved standard
Logo	Customized logo are available as request
Design ability	We can supply sample,OEM&ODM is welcome

Service

We produce:Terminal blocks , cold connectors , crimping machine , push button , indicator light , cable gland , waterproof box
We can supply you all these electric components toghther, saving your time serching

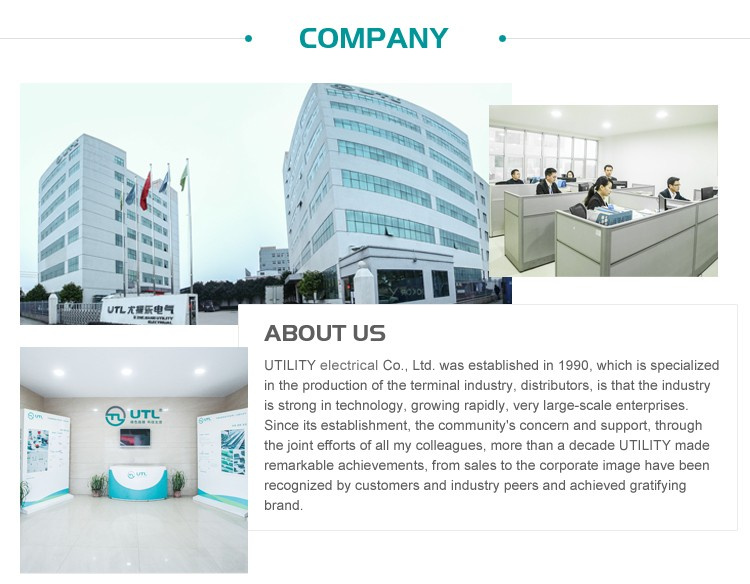

Company Information

UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .

The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.

UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .

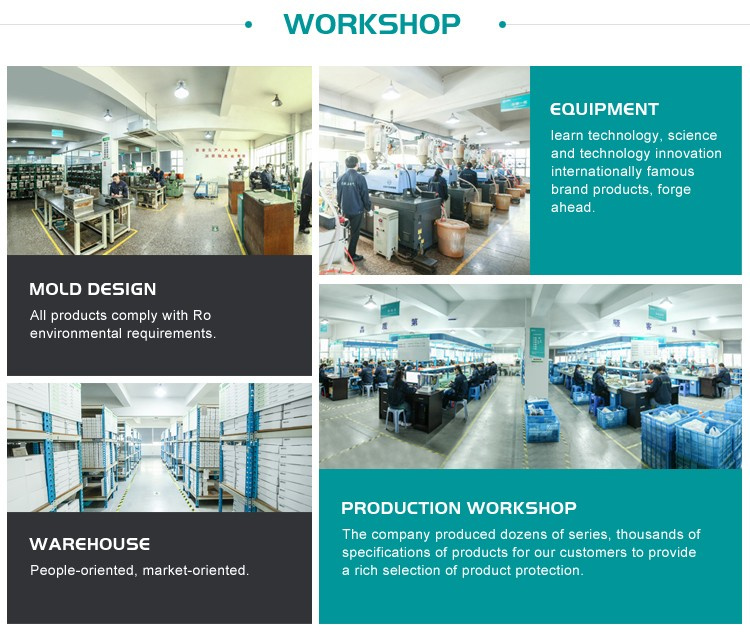

Work Shop

UTILITY are Cengcengbaguan accordance with the appropriate standards by the professional staff to produce marketable, used worldwide industrial automation products as their responsibility to actively follow the introduction, learn technology, science and technology innovation internationally famous brand products, forge ahead.

"UTILITY" service drew our customers appreciated."Takeoff UTILITY, proud UTILITY man",who is the UTILITY with advanced management,strong technical strength, perfect process technology,first-class testing equipment and excellent mold processing technology to produce the premise of higher quality products,with excellent sales team,well sales network and professional services,open up the market to win a new chapter today.

Certificate

UTILITY painstaking research of the IEC, UL, CSA, GB, CE, CCC and other international and domestic standards for terminals, and in accordance with these standards preparing their own more stringent corporate standards, from the development, mold design, raw material procurement, production, plastic parts molding products, metal parts, to finished product assembly and quality testing, packaging, shipping, etc.

Ivy Huang
Sales Manager
Utility Electrical Co.,Ltd

Mob:+86 13758875733
Tel: +86 577 62658507

Web: www.china-utl.com

Prod Model:	JUT10-95/2
Application:	Conduct Electricity
Type:	Universal Terminal Block
Material:	Polyamide, Aluminum
Certification:	TUV Ce
Brand:	Utl

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
