| Prod Model: |
Inductor Bobbin Efd |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Machine |
| Type: |
Fixed Inductor |
| Structure: |
Bobbin |
Product Description

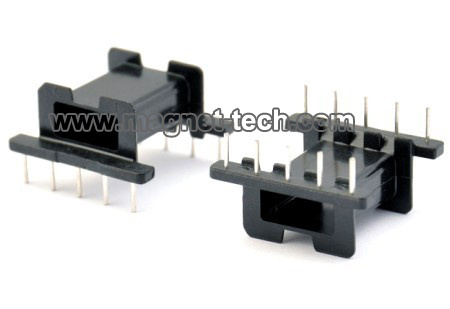

Inductor Bobbin Efd
General Description
1. Bobbin EFD (Inductor Bobbin) belongs to core with bobbin and has the features of Low profile.
2. Rectangular center leg, hence higher means length per turn (MLT). Terminating multi-filar windings to EFD bobbin pins is difficult.
3. The advantage of using ferrite bobbin EFD is lower cost and ease in manufacturing, especially for high volume
4. Because of lower cost, if the volume is very large, ferrite bobbin EFD custom transformer is the way to go
5. There are Horizontal orientation with through-holes and surface-mount terminals. Available in themoset and thermoplastic.
Features:
1. Bobbin EFD Material: Phenolic T375J
2. Pin of Bobbin EFD Material: CP WIRE.
3. Bobbin EFD cost: Relatively low.
4. Bobbin EFD UL Class: UL 94V-0..
For more detail info, please feel free to visit our website or inquire us at any of your convenience. .
