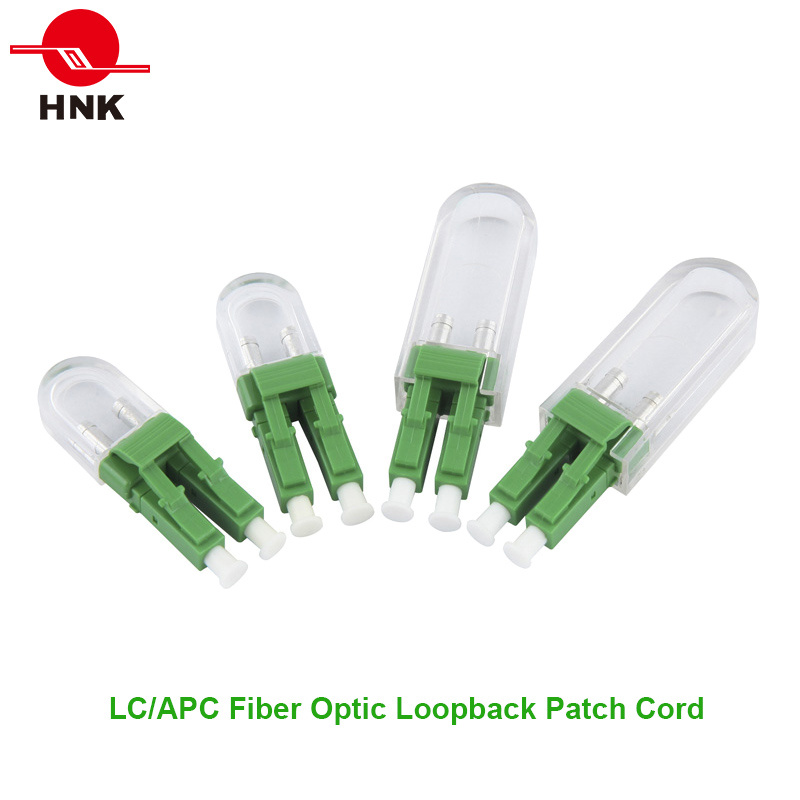

LC PC/APC Fiber Optic Loopback Patch Cord

Name: LC PC/APC Fiber Optic Loopback Patch Cord
Brand: all-electronics-online.com
SKU: 681946435
Availability: InStock
Rating: 4.7 (148 reviews)

Price:	US $ 3-5/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Fiber Optic Loopback products are designed for testing and engineering purposes, providing system
test engineers with a simple and effective way of testing transmission capability and receiver sensitivity.
Our fiber optic loopback product is module style. Long type or short type available. The loopback plug
is more compact and it has most of its parts inside the shield body for protection. Loopback module
incorporate 2 connectors, one used as an input port and one as an output port.

we offer custom assemblies for fiber optic loopbacks such as custom connector configurations and special
polished. The common fiber optic loopbacks types are: SC fiber optic loopback, LC fiber optic loopback.

Complied with or exceeds Standard
. GR-326-CORE                                                . UL-V0 ammability rating
. RoHS Compliant Directive 2002/95/EC          . TIA/EIA-568-C.3
. ANSI/TIA/EIA-455B                                         . IPC-8497-1

Features
. Compact design                                             . Low back reflection
. Compatible with Fast Ethernet, Fiber Channel, ATM and Gigabit Ethernet
. Short wavelength devices                              . Custom assemblies available

Applications
. Equipment interconnection                                  . Device pig-tailing
. Premise networks                                                . Patch panel applications
. Communications connections

Specification

ITEM	Value
Insertion Loss	≤0.2dB
Return Loss	Singlemode UPC≥50dB, Singlemode APC≥60dB, Multimode PC≥35dB
Optical Fiber	G652D,G657A,OM1,OM2,OM3,OM4 Available.
shield body Color	Natural and Black
Temperature Range	- 40 to + 80ºC

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: LPC-AA-BCD

Ordering Guide

AA	BB	C	D
Connector Type	Fiber Type	Loopback Type	shield body Color
FP,SP,SA,LP	OM1=62.5/125 OM1, OM2=50/125 OM2 OM3=50/125 OM3, OM4=50/125 OM4 G652D=9/125 G652D, G657A=9/125 G657A	L=Long type S=Short type	NT=Natural BK=Black

Ordering Sample

Part Number	Description
LPC-LA-G652DSNT	LC/APC Fiber Optic Loopback Patch Cord, Singlemode G652D, Short Module type, Natura Color.

Prod Model:	Loopback connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insertion Loss:	≤0.2dB
Shield Body Color:	Natural and Black
Optical Fiber:	G652D,G657A,Om1,Om2,Om3,Om4
Length:	According to Requirement
Application:	Communication
Certification:	ISO9001
Type:	Singlemode or Multimode
Connection Structure:	LC/APC, LC/PC
