LC/PC Optic Fiber Patch Cord Loop Back

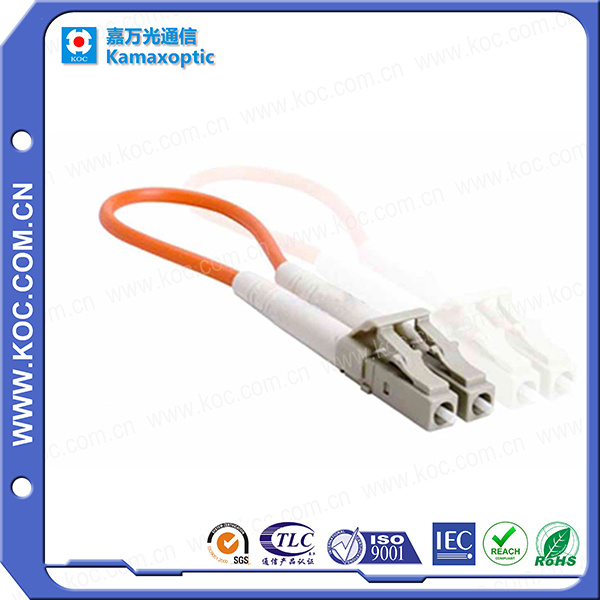

Name: LC/PC Optic Fiber Patch Cord Loop Back
Brand: all-electronics-online.com
SKU: 791927185
Availability: InStock
Rating: 4.8 (140 reviews)

Price:	US $ 0.9-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC
Sc Fiber Optic Connector:	Low Loss
Simplex And Duplex Sc Connector:	Sm and mm
Diameter:	0.9;2.0;3.0
Boot Color:	Green, Blue, Beige, Black, White
Housing Color:	Plastic
Structure:	LC
Ferrule Endface:	PC(',UPC)
Transmission Medium:	Singlemode, Multimode
Number Of Cores:	Duplex
Connector Type:	LC
Brand:	Koc

Product Description

Product Description
Fiber Optical Loopback is designed to provide a media for return patch for a fiber optic signal. Typically used for fiber optical testing applications or network restorations.

Key Features
Compatible with Fast Ethernet, FiberChannel, Gigabit Ethernet etc.
Custom assemblies available

Performance
Typical insertion loss: ≤ 0.3dB
Connector type: SC/LC/MTRJ etc available
Mode type: SM or MM available
Cable type: 3.0mm/2.0mm/0.9mm/0.25mm
Repeatability: ≤ 0.2dB (500 matings)

Order Informations
LB-A-B-C
A: Connector type[SC/SCA/LC/LCA/MTRJ]
B: Mode type[9(SM)/6(MM62.5)/5(MM50)]
C: Cable type (MM)[3/2/09/25]

Patch Cable Type	Fiber type
Multi-core (12, 24, 48) MPO cable	9/125,
Multi-core (12, 24, 48) SC/ST/LC/MU cable	50/125
Multi-core (12, 24, 48) MPO-- SC/ST/LC/MU cable	62.5/125
	OM3

Fan-out cable size	Fan-out cable length
0.9mm,	Same length
1.8/2.0mm,	Stepped length
2.8/3.0mm

Cable fiber structure	Cable jacket
loose tube,	PVC (ROHS approved)
tight buffer,	LSZH
ribbon fiber

SM Data	MM Data
Insertion loss: <0.3dB	Insertion loss: <0.3dB
Return loss: >50dB	Return loss: >35dB

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
