LC1-D AC Contactor with 220V

Name: LC1-D AC Contactor with 220V
Brand: all-electronics-online.com
SKU: 690366135
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

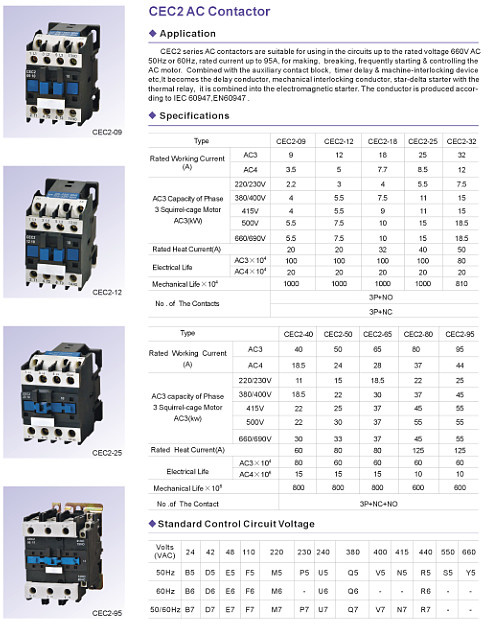

CEC2 series AC contactors are suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting a controlling the AC motor. Combined with the auxiliary contact block, timer delay & machineinterlocking device etc, It becomes the delay conductor, mechanical interlocking conductor, star-delta starter with the thermal relay, it is combined into the electromagnetic starter. The conductor is produced according to IEC 60947, EN60947.

Type		CEC2-115	CEC2-150	CEC2-170	CEC2-205	CEC2-245	CEC2-300	CEC2-410	CEC2-475	CEC2-620
Rated Working Current (A)	AC3	115	150	170	205	245	300	410	475	620
Rated Working Current (A)	AC4	52	60	75	85	105	117	138	147	180
AC3 Capacity of Phase 3 Squirrel-cage Motor AV3(kW)	220/230V	30	40	55	63	75	100	110	147	200
	380/400V	55	75	90	110	132	160	220	265	335
	415V	59	80	100	110	132	180	220	280	375
	500V	75	90	110	129	160	200	250	355	400
	660/690V	80	100	110	129	160	220	280	355	450
Rated Heat Current (A)		200	250	250	275	315	400	500	700	1000
Electrical Life	AC3×10 4	200	60	60	50	50	50	30	30	20
Electrical Life	AC4×10 4	15	15	15	15	15	15	8	8	5
Mechanical Life×10 6		300	300	300	300	300	300	100	100	100

Prod Model:	CEC2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechanical Life 10^6:	800
No.of The Contact:	3p+No 3p+Nc 3p+Nc+No

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

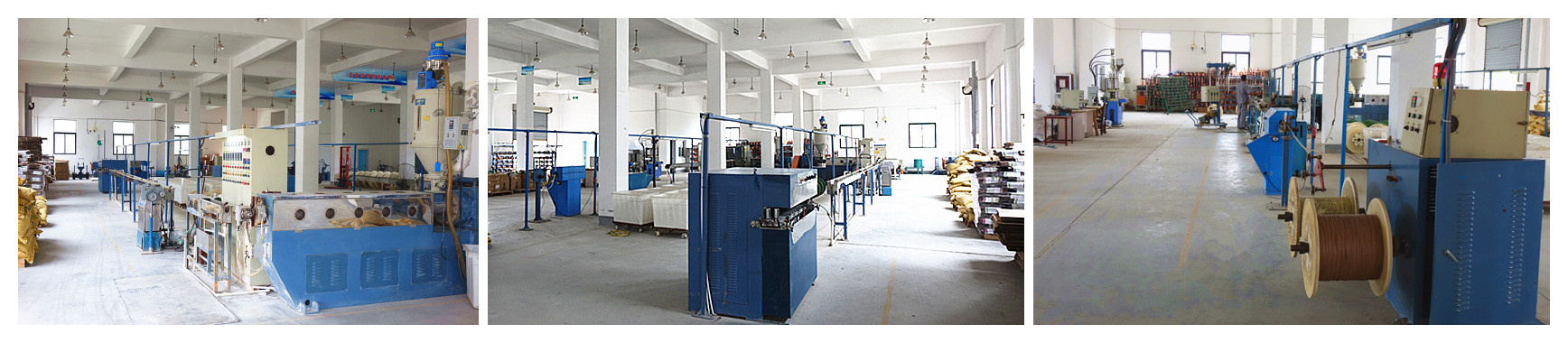

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
