LC1-D Contactor PE New Types of AC Contactor High Quality Remodel Chint

Name: LC1-D Contactor PE New Types of AC Contactor High Quality Remodel Chint
Brand: all-electronics-online.com
SKU: 813728705
Availability: InStock
Rating: 5 (84 reviews)

Price:	US $ 1.95-2.05/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

GENERAL

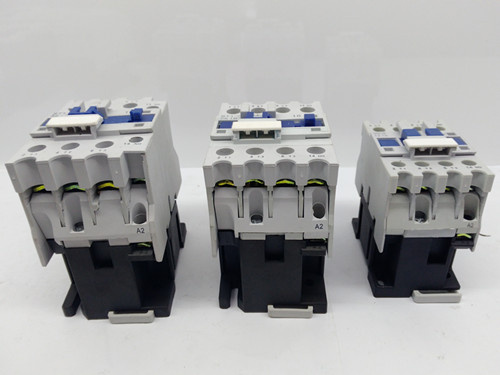

ST2 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.

Specifications

Type		ST2-09	ST2-12	ST2-18	ST2-25	ST2-32	ST2-40	ST2-50	ST2-65	ST2-80	ST2-95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of B/L.
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory.

Contact us

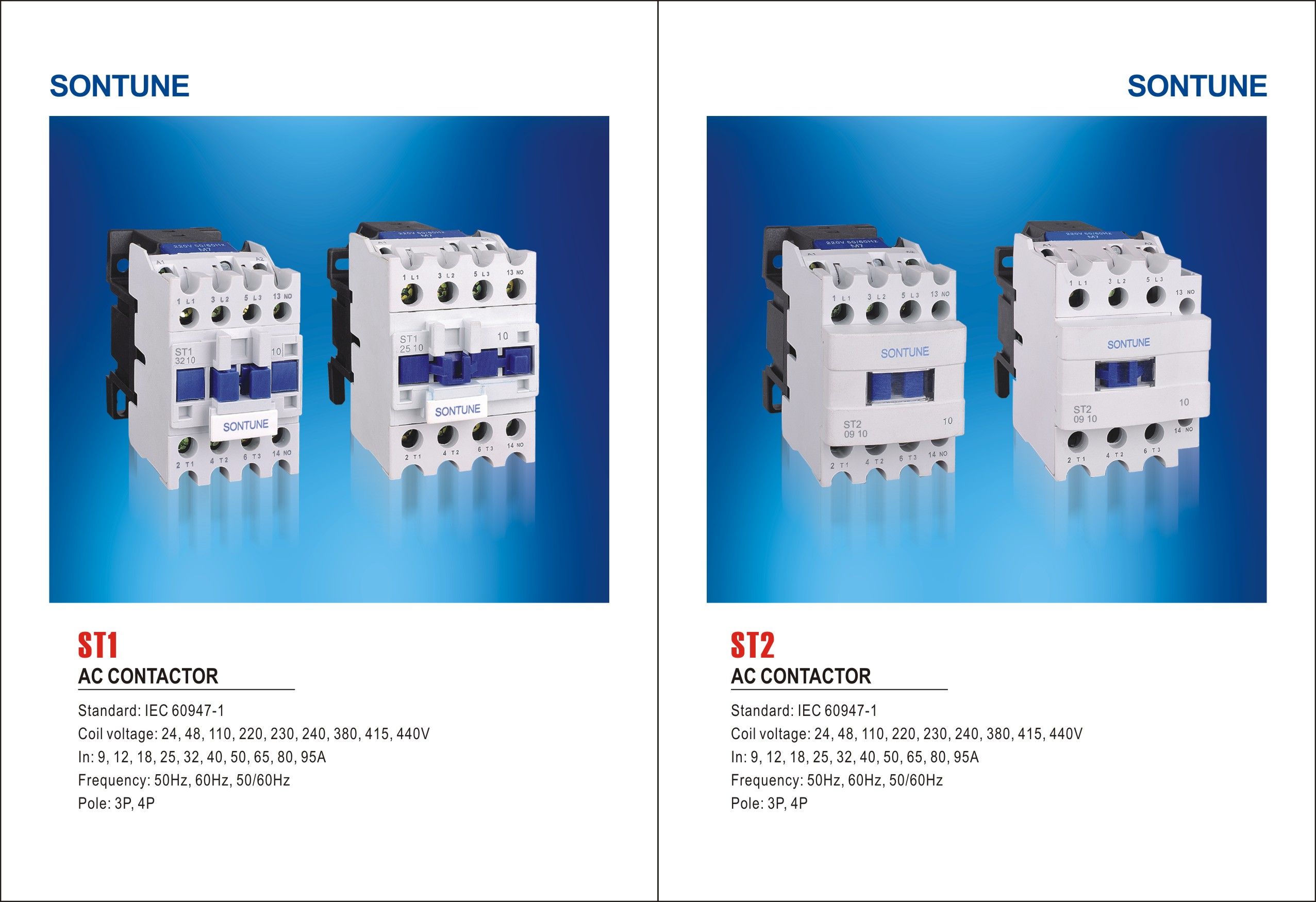

Prod Model:	ST2
Standard:	IEC 60947-1
Coil Voltage:	24,48,110,220,230,240,380,415,440V
Rated Current:	9,12,18,25,32,40,50,65,80,95A
Frequency:	50Hz,60Hz,50Hz/60Hz
Certificate:	Ce

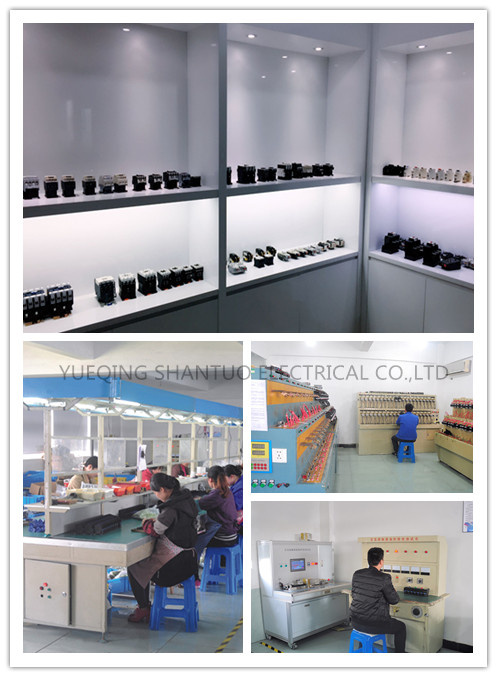

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
