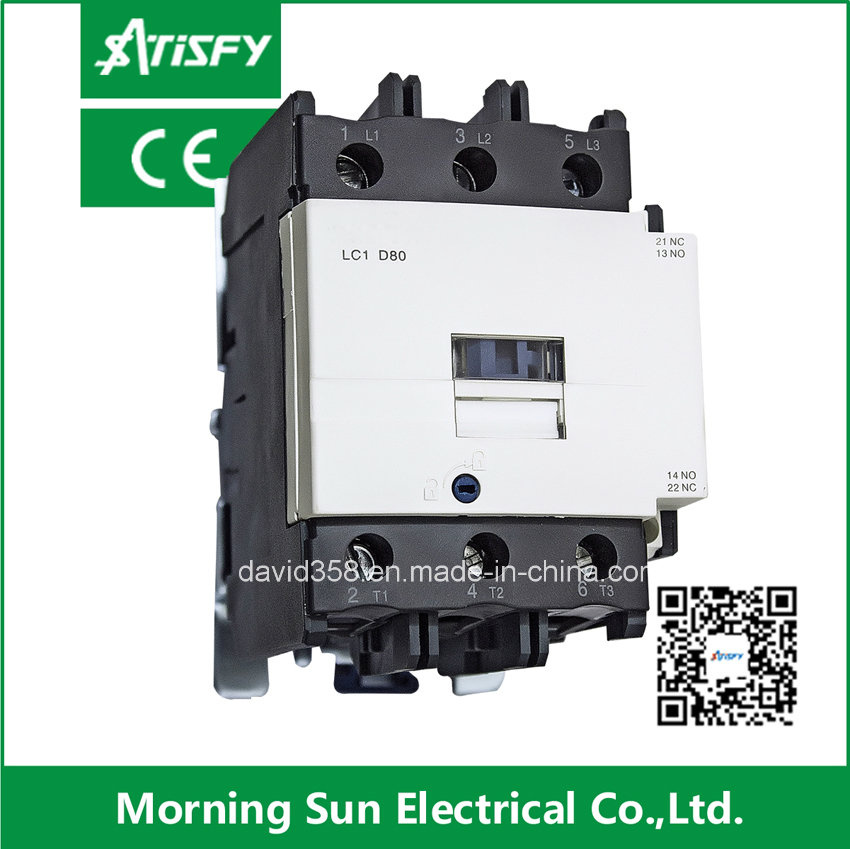

LC1-D80 New Model AC Contactor

Name: LC1-D80 New Model AC Contactor
Brand: all-electronics-online.com
SKU: 782474125
Availability: InStock
Rating: 5 (115 reviews)

Price:	US $ 2.00/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Product Description
1. General
LC1-D series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~150A under AC-3 duty. It is mainly used for making and breaking electric circuits at a long distance & for frequent starting, stopping & controlling AC Motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4.

2.Specifications
Type	Thermal Rated Current (A)	Rated Current AC-3 380V(A)	Control Power AC-3(KW)				Rated Insulation
			220V	380V	415V	660V	Voltage(V)	Aux.Contact
LC1-D09	20	9	2.2	4	4	5.5	660	3P+1NO+1NC
LC1-D12	20	12	3	5.5	5.5	7.5
LC1-D18	32	18	4	7.5	9	9
LC1-D25	40	25	5.5	11	11	15
LC1-D32	50	32	7.5	15	15	18.5
LC1-D40	60	40	11	18.5	22	30
LC1-D50	80	50	15	22	25	33
LC1-D65	80	65	18.5	30	37	37
LC1-D80	125	80	22	37	45	45
LC1-D95	125	95	25	45	45	45
LC1-D115	200	115	30	55	59	80
LC1-D150	250	150	40	75	80	100

Prod Model:	LC1-D80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Theory:	Contactor
