LCD display alarm 0-20ppm O3 gas detector:
K800 Series Fixed Gas detector provides comprehensive monitoring of combustible, toxic gas hazards in potentially explosive atmospheres, indoors and outdoors-and is marked by installation ease and flexibility, user-friendly operation and cost-effective gas monitoring.
>>>Key Features
1) Providing digital LCD displayer, alarm facility with sound and light, and solid relay output on the spot, allowing contol the equipments easily.
2) Supporting 4 to 20mA analog signal output (DC24V), connecting with the remote host contoller, and having direct access to the DCS.
3) Connecting 3 - core shield cable, 3x1.0mm.
4) Special transmitter mounting kit making the installation and performing calibration easier and better.
5) Ambient temperature: -20°C~+50°C
6) Explosion-proof grade: ExdIICT6
7) High sensitivity, short response time and good stabilization

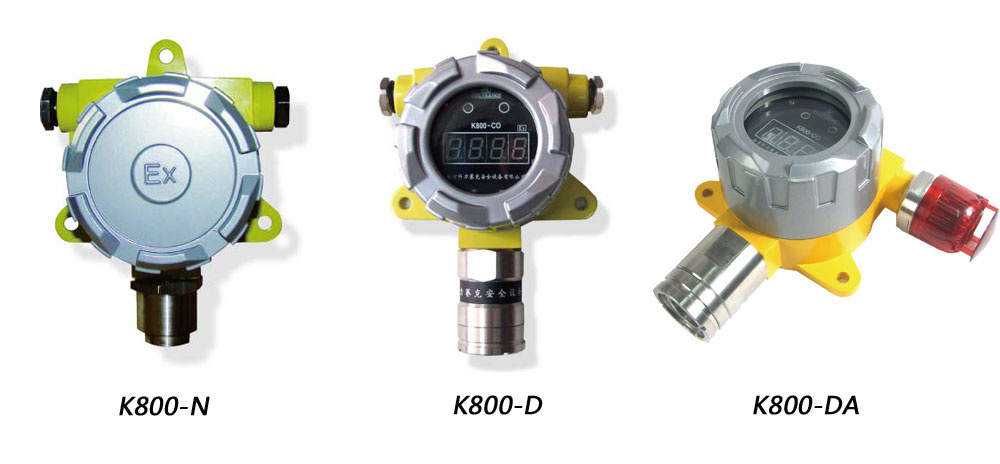

Detailed types of the K800 series Fixed Gas Detector:
K800-[gas type]-[mount pattern]
N: with non-dispalay
D: with LED display
DA:alarm with light and sound
>>>Technical Specification:
| Power supply | 24VDC |
| Output signal | 4-20mA standard industrial signal output |
| Operating temperature | -20°C~+50°C |
| Display | Backlight LED |
| Relative humidity | 15%~90% RH (non-condensing) |
| Atmospheric pressure | 86~106Kpa |
| Explosion-proof grade | Exd IICT6 |
| Warranty | 1 year |

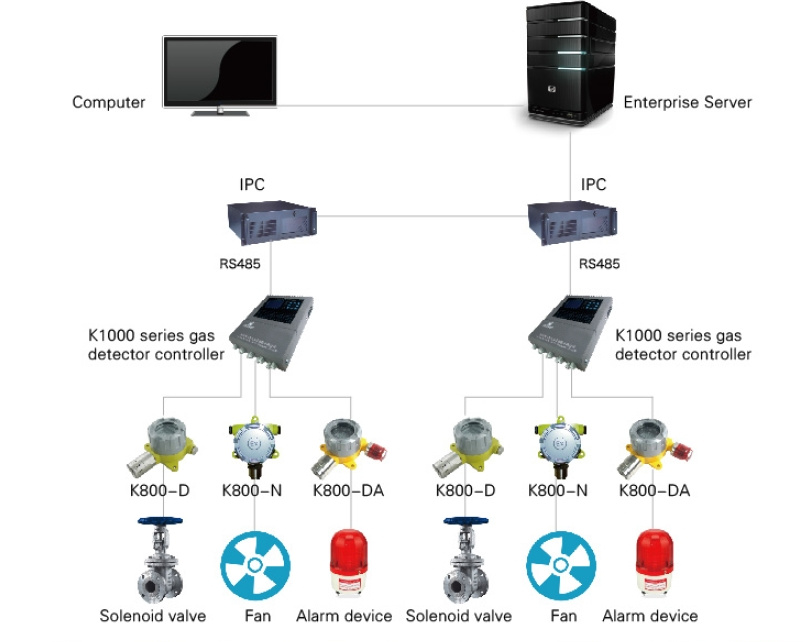

Detection system draft and detector working principle:
COMMONLY USED GAS DETECTION LIST
| No. | Detection gas | Range | Accuracy | 90% response time | Min readout | Low/high alarm |
| 1 | PH3 | 0-5-2000ppm | ±5%(F.S) | ≤25s | 0.01ppm | 0.3/5ppm |
| 2 | O2 | 0-30% | ±5%(F.S) | ≤15s | 0.1%vol | 18.0%/23.0% |
| 3 | LPG(LEL gas) | 0-100%LEL | ±5%(F.S) | ≤5s | 1%LEL | 25.0%/50.0%LEL |
| 4 | CO | 0-1000 ppm | ±5%(F.S) | ≤25s | 1 ppm | 50ppm/100ppm |
| 5 | H2S | 0-100 ppm | ±5%(F.S) | ≤30s | 1 ppm | 10ppm/20ppm |
| 6 | CH4 | 0-100%LEL | ±5%(F.S) | ≤5s | 1%LEL | 25.0%/50.0%LEL |
| 7 | NH3 | 0-100ppm | ±5%(F.S) | ≤50s | 1 ppm | 25 ppm /50 ppm |
| 8 | O3 | 0-20ppm | ±5%(F.S) | ≤60s | 0.01ppm | 0.2ppm/0.4ppm |
| 9 | CI2 | 0-20 ppm | ±5%(F.S) | ≤30s | 0.1 ppm | 1 ppm /10 ppm |
| 10 | H2 | 0-1000 ppm | ±5%(F.S) | ≤60s | 1 ppm | 50 ppm /100 ppm |
| 11 | SO2 | 0-100 ppm | ±5%(F.S) | ≤30s | 0.1 ppm | 2 ppm /10 ppm |
| 12 | NO | 0-250 ppm | ±5%(F.S) | ≤60s | 1 ppm | 25ppm/50 ppm |
| 13 | NO2 | 0-20 ppm | ±5%(F.S) | ≤25s | 0.1 ppm | 3ppm/10ppm |
| 14 | Infrared CO2 | 0-5%vol | ±5%(F.S) | ≤60s | 0.1%vol | 1%vol/2%vol |
| 15 | Infrared CH4 | 0-5%vol | ±5%(F.S) | ≤60s | 0.1%vol | 0.1%vol/0.15%vol |
| 16 | Infrared C3H8 | 0-5%vol | ±5%(F.S) | ≤60s | 0.1%vol | 0.1%vol/0.15%vol |
Certificates:

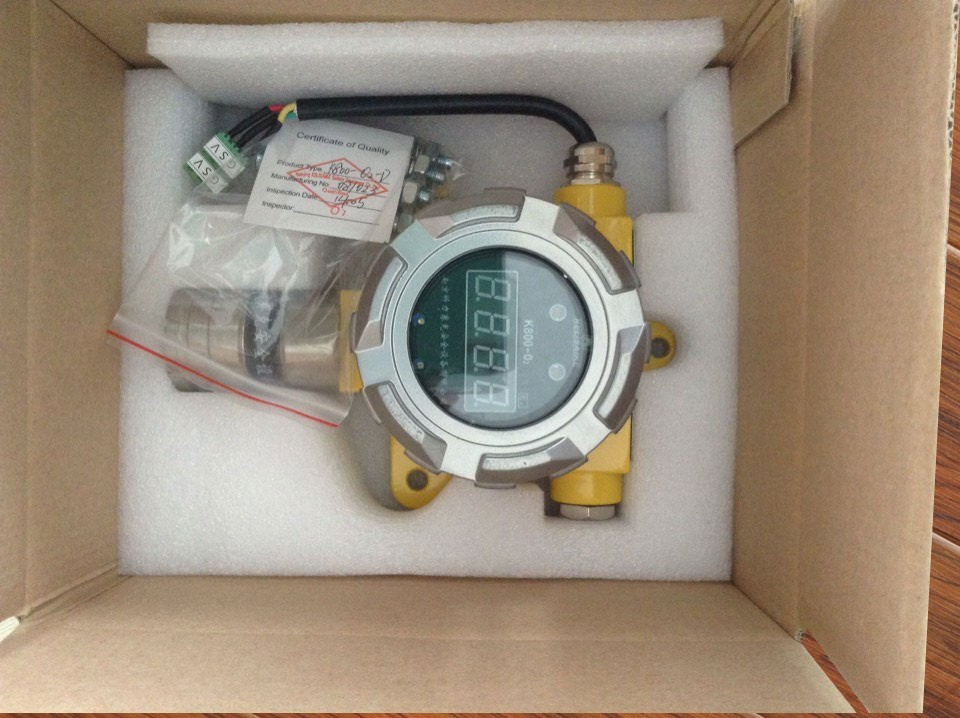

Packing & Delivery
| Packing | Carton box |
| Detail | 1 pc / ctn |
1.For all our customers, our products have 1 year warranty, and life-long maintenance.
2.All inquiries will be replied in 24 hours.
3.We will provide technical support, our engineers will help to solve the problems you met.
4.We can provide OEM and ODM service.
5.Our factory is locating in Nanjing city, welcome to visit our factory.
6.All products will be well checked and well packed before shipment, and qualification certificatewill be provided.
Calibration:
Do you know how to calibrate your portable gas detectors?
Please contact us to ask for help.
Why choose KELISAIKE?
1. Mutual benefit : We are a factory, our price will be cheaper in the same quality.
2. Professional engineers: We have 3 engineers who have more than 10 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech equipments, we make more accurate and stable products.
3. Customize : We have strong R&D team, can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS). (b) Design your color box(≥200PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service: (a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on Made in China, please have a detailed looking and choose the interested models in our site. Or you can send email to us.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Nanjing KELISAIKE Safety Equipment Co., Ltd. Is a leading professional manufacturer of gas detector, engaged in researching and developing high quality air-sensitive technology. Our company has first-grade equipment, scientific methods, project management system and excellent employees. As a professional supplier and agent of industrial instrumentations, we have been specializing in the field for more than 10 years. Now KELISAIKE has three subsidiary companies, located in the cities of Beijing, Xi'an and Xinjiang, and the business scope has covered nearly all the municipal areas of China.
Our company vigorously develops proprietary intellectual property rights and patents products, including of K60 series portable gas detector, K800 series gas detector transmitter, K500 series gas alarms, K1000 series gas detector controllers, K-1Ax gas detecting control systems, KL99 self contained breathing apparatus, etc. We have passed ISO9001 International Quality System Certification. Our company strictly complies with the requirements of quality system in both management and product quality. All products have perfect performance and good stability, reliability with lower prices, as well as our all products have been resold in worldwide.
Our gas detectors are applied to combustible gas, toxic gas, oxygen and other several categories of gas. Widely used in lines of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
If you are interested in any styles, please do not hesitate to visit our website or contact us for further information. We are looking forward to establishing a long-lasting business relationships with you in the near future.
OEM and ODM orders are welcome.
