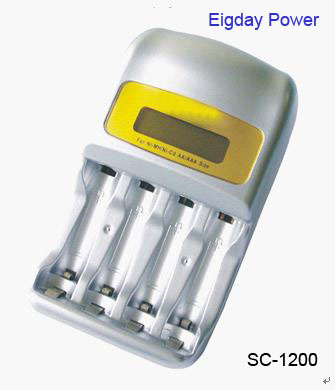

LCD Rapid AA/AAA Ni-MH Rechargeable Batteries Charger

LCD Rapid AA/AAA Ni-MH Rechargeable Batteries Charger



Detail Features:
1. Wide size LCD display with 4 levels for charging status.
2. 4 individually monitored charging channels for charging
1 to 4PCS AA/AAA Ni-MH/Ni-CD rechargeable batteries.
3. Charge different brands and capacity of AA/AAA
Ni-MH/Ni-CD batteries at the same time.
4. Channel-independent temperature control and voltage
Monitor for safe charging.
5. Smart 12 bits Microprocessor to increase
Rechargeable battery lifespan.
6. Detect by-delta V, 0 delta V, + delta V for fully charge.
7. Overtime, overload, overheat protection.
8. Automatic trickle charge after full charge.
9. Product Dimension: 110*65*30mm(US plug)
110*65*60mm(Europe/UK plug)
10. Approval: CE / FCC

Charging time table:
Time
Size 1PC 2PCS 3PCS 4PCS
AA 2300mAh ~1.2 H ~2.5 H ~3.7 H ~5 H
AA 2000mAh ~1 H ~2 H ~3 H ~4 H
AAA 850mAh ~0.8 H ~1.5 H ~2.3 H ~3 H
AAA 650mAh ~0.4 H ~0.8 H ~ 1.2 H ~1.6 H
Specification:
Input: AC 100-240 V 50-60Hz.
Output: DC 1.5V
Charging current: 2000mA max.

LCD displays the charging level:
1. Empty icon: Lower than 30%
2. One segment: Around 30%
3. Two segment: Around 60%
Full icon: 100%.
