Leadsun High Voltage Diode Cl03-12 High Voltage Axial Lead Power Diodes

Name: Leadsun High Voltage Diode Cl03-12 High Voltage Axial Lead Power Diodes
Brand: all-electronics-online.com
SKU: 713978062
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

CL03-12 high voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.
Features:
1.Fast recovery
2.Low forward on pressure, low leakage current
3.Protection of avalanche breakdown
4.Antiimpacting of discharging of CRT high voltage surge current
5.Axial lead diode, could weld on tube pin
6.Epoxy resin molded and can resist corrosion on its surface
Application:
l .Television and FBT display
2.Cathode ion generator, laser power supply
3.Neon lamp power supply, voltage multiplier assembly
4.DC high voltage generator assembly

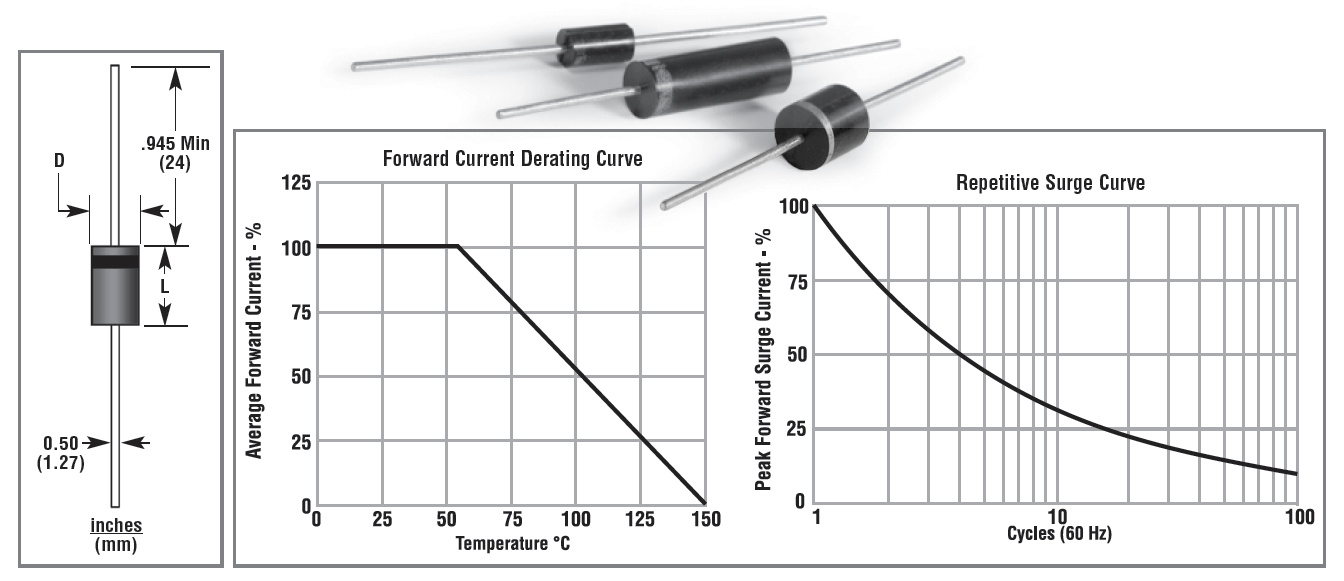

	CL03-8	CL03-10	CL03-12	CL03-15	CL03-20
Repetitive Peak Reverse Voltage VRRM V	8000	10000	12000	15000	20000
Avg Forward Current Max. IFAVM@55ºC mA	400	300	250	200	120
Max Forward Voltage Drop VF@IF V	20	25	30	35	38
Max Reverse Current IR@VRRM@25ºC μA	2.0	2.0	2.0	2.0	2.0
Max Surge Current IFSM3 A	20	20	20	20	20
Juction Capacitance TYP CJ2 pF	6.2	5.3	4.4	3.5	2.8
Max Reverse Recovery Time Trr nS	100	100	100	100	100

Prod Model:	CL03-12
Trr:	100ns
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through Hole
Application:	Rectification
Model:	Cl03-12
Brand:	Leadsun

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
