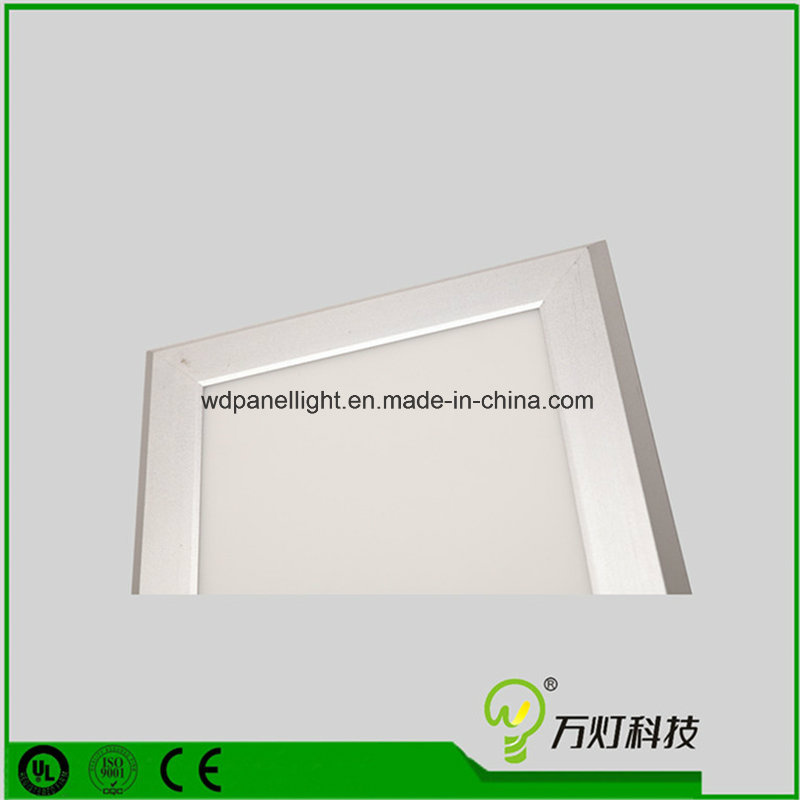

LED Downlight 600*1200 40W Ceiling Panel Light for Bright Bulb
| Price: |
US $ 10-20/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
>>Product Description | Item No. | LED Type&QTY | power | CCT | PF | CRI | Light |
Lumen
| Certification |
| (±5%) | efficiency |
| WD-M600*1200-D/S/GA1 | SMD4014
204 LEDS | 40W ±5% | 2800-
6500K | >0.9 | Ra>80 | 85-120lm/w | 85 l,m/W | CE-UL-RoHS |
| WD-M600*1200-D/S/GB2 | SMD2835
228 LEDS | 40W ±5% | 100 l,m/W |
| WD-M600*1200-D/S/GA3 | SMD2835
228 LEDS | 40W ±5% | 120 l,m/W |
| WD-M600*1200-D/S/GA4 | SMD2835
228 LEDS | 40W ±5% | 85 l,m/W |
| WD-M600*1200-D/S/GA5 | SMD2835
228 LEDS | 40W ±5% | 100 l,m/W |
| WD-M600*1200-D/S/GA6 | SMD2835
228 LEDS | 40W ±5% | 120 l,m/W |
>>Competitive Advantages 1.High effeciency,low light decay 6000hrs<10% .
2.More uniformity of luminance,>85%.3.Exquisite appearance,ultra slim 10mm thickness.4.Light source 4014smd,with good concentrated and uniform luminance,listed by LM-80 certificate.5.Imported PMMA panels, transmittance more than 92%,UGR<19.6.6063 aluminum frame, specially wrinkle design in flank for better heat dissipation.7.With strong connector,triangle hanging piece.8.Unique back plate design,no light leak.9.TUV/CE/RoHS/SAA/UL listed isolated driver.10.Business solution Flexible offered for customers,with senior R&D engineer engaged in led panels for 10 years. >>Features- Ø Two sides are lined with LED's to grant optimal illumination.
- Ø High light output at a reduced energy consumption of up to 50%.
- Ø Over 50000 hours life expectancy.
- Ø Wide angle of deflection with even light distribution.
- Ø No start-up time, no flickering, no humming.
- Ø High efficiency (95%) constant current driver with built in overheat
- Ø Protection that remains stable at a wide range of input voltages.
- Ø Independent LED circuit prevents complete blackout in case an LED fails.
- Ø Environmentally friendly, mercury and lead free.
- Ø Causes no electromagnetic interference.

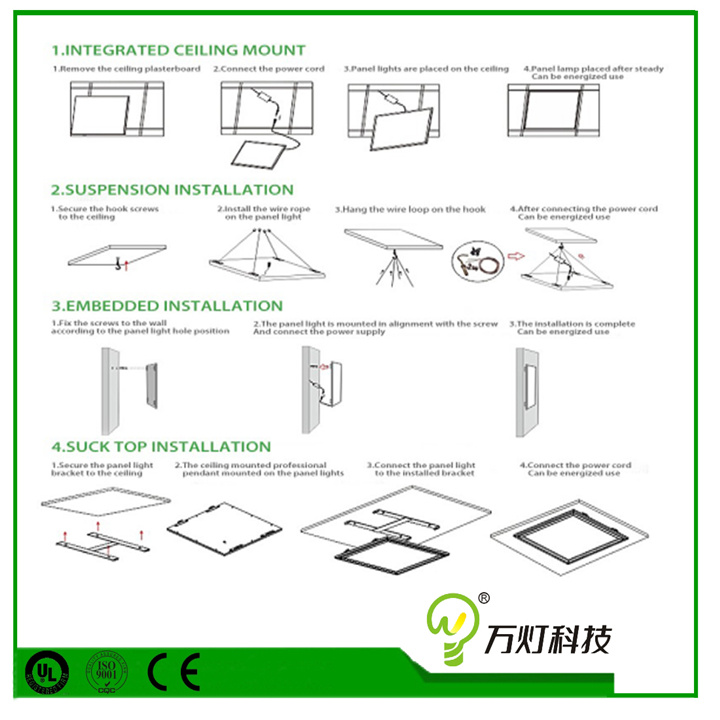

>>Installation Instructions of led ceiling panel light

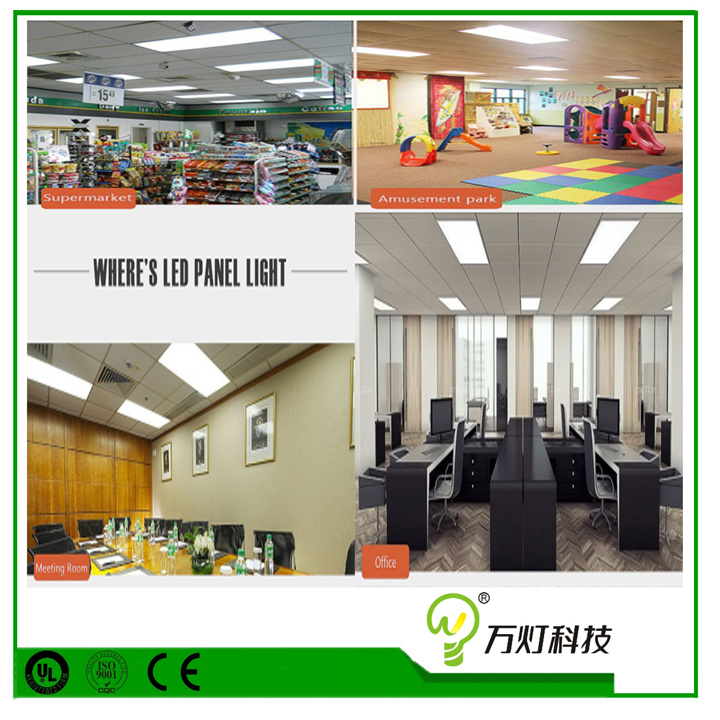

>>Application Scenarios of led ceiling panel light
Application for URG<19 led panel light 600x600- Office building
- Supermarket
- Hotel
- Entertainment venues
- Subway station
- Showroom
Lamp must be installed in a suitable environment, keep room ventilation,no corrosive gas,keep 0.2m away from flammable objects for led panel 600x600.>>Our ServicesOur company will send free products to you if caused from defects in materials and workmanship for a period of three years.Our products are strictly controlled by every process of production to ensure quality is good.1.IQC(raw material quality control) 2.IPQC(on production quality control) 3.FQC(finished product quality control) 4.OQC(delivery product quality control)>> Company Information Our products are strictly controlled by every process of production to ensure quality is good. Hefei Sunlight Technology Co.,Ltd as a professional manufacturer of led source and led lights which established more than 5 years,meet TUV ISO9001:2012,focus on led panel lights more than 5 years,Independent production company different color temperature high-power LED lamps, including LED lights, high bay lights, track lights, buried lights, landscape lights, garden lights, lamps, downlights, ceiling, light bulb, etc., can fully meet different customer a variety of application needs groups. Company strict requirements of product quality system, and to establish an effective quality management system and product quality supervision approach, until now, the company has independent intellectual property products amounted to more than ten full, the product of energy-saving, environmental protection, long life, is national focus on promoting products. All along, Sunlight technology adhering to the "credibility-based, quality first, the pursuit of perfection, and sustainable management" purpose of "good faith" and "innovative and pragmatic" philosophy to forge ahead, win-win, so Wan Light illuminate green world!
| Prod Model: |
WD-PL600*1200-040GA |
| Colour: |
Pure White |
| Installation: |
Embedded/Integrated Ceiling/Hang up |
| Size: |
600*600/300*600/600*1200/300*1200 |
| Warranty: |
5 Years |
| Luminous Efficacy: |
85-120lm/W |
| IP Grade: |
IP65 |
| CRI: |
>80 |
| Shape: |
Square Shape |
| Application: |
Shop/Supermarket/Hospital/Office |
| Workingtemperature: |
(-25 ~ + 45)ºC |
| Light Source: |
LED |
| Emitting Color: |
White |
| Dimmable: |
With Dimmable |
| Appearance: |
Square |
| Type: |
Embedded |
| Certification: |
CCC |
| Voltage: |
85V-265V |
| Housing Material: |
Die-Cast Aluminum |
| Base Material: |
Aluminum+PMMA+PS Diffuser |
| Beam Angle: |
120° |
