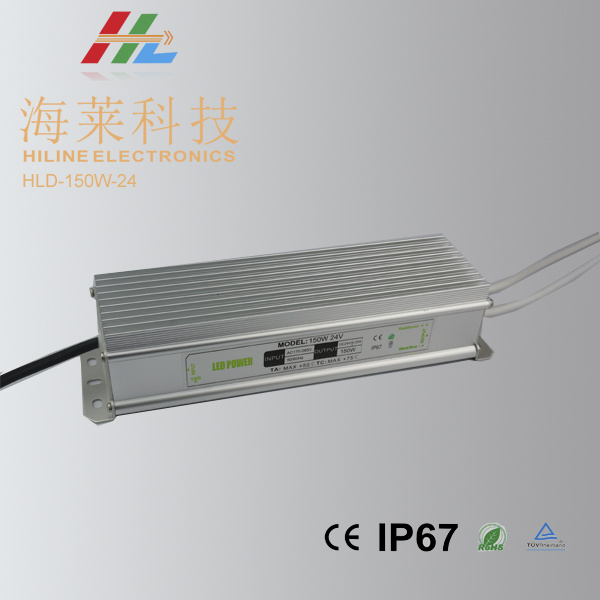

LED Driver 150W 24V Waterproof

Name: LED Driver 150W 24V Waterproof
Brand: all-electronics-online.com
SKU: 810026495
Availability: InStock
Rating: 4.5 (54 reviews)

Price:	US $ 18.5-20.17/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

120W 12V 24V IP67 waterproof LED driver Features:

1.120W LED waterproof constant voltage driver
2. Universal AC input;
3. Fully encapsulated with IP67 level;
4. 100% burn-in test at full load;
5. Protections: short circuit/over load/over current;
6. Suitable for LED light applications.
7. OEM is acceptable, 2 years of quality warranty;

120W 12V 24V IP67 waterproof LED driver Specifications:

MODEL		HLD-12V-120W	HLD-24V-120W
OUTPUT	Rated DC voltage	12V	24V
	Rated current	10A	5A
	Current range	0~10A	0~5A
	Rated Power	120W
	Voltage tolerance	12±0.5V	24±0.5V
	Ripple & Noise	200mVp-p
	Load regulation	±2%
	Setup, Rise time	50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage range	170~260VAC;
	Frequency range	47~63Hz
	Efficiency (Typ.)	>80%	>85%
	Leakage current	0.25mA/240VAC
PROTECTION	Over Current	110%~150%
		Protection type: Hiccup mode
	Short circuit	Short circuit protection
ENVIRONMENT	Working TEMP.	-25ºC~50ºC
	Storage TEMP.	-40ºC~80ºC
	Working Humidity	20~90% RH non condensing, refer to IP67
	Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
	Withstand Voltage	I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
	Isolation Resistance	I/P-O/P:>100M Ohms/500VDC/25ºC/70% RH
	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
OTHERS	MTBF	08,EN61547:200950KHours (25ºC)
	Dimension	2406855mm(LWH)
	Weight	1.2Kg,15pcs/18.5Kg/0.021CBM

Prod Model:	HLD-150W-24
Size:	2406855mm
Color:	White or Black
Material:	Aluminum
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Hiline
