LED RGB Controller for RGB LED Strip 5050 3528 SMD

Name: LED RGB Controller for RGB LED Strip 5050 3528 SMD
Brand: all-electronics-online.com
SKU: 831152695
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	US $ 2.9-5/Meter
Min Order:	50/Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

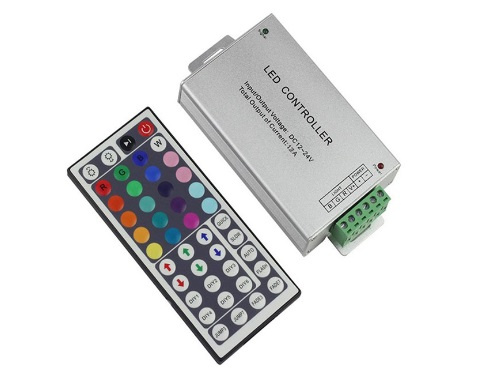

12V-24V DC 24A 288W 44Key IR Remote Controller for RGB LED Strip 5050 3528 SMD
This 44-key aluminum infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED.

Product Description
This 44-key aluminum infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust their light color as they like.

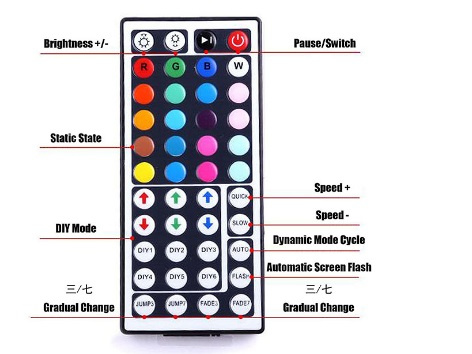

Functions

Brightness rise	Brightness fall	Pause/Run	On/Off
Static red	Static green	Static blue	Static white
Static orange	Static light green	Static dark blue	Static milk white
Static dark yellow	Static cyan	Static lyons blue	Static white pink
Static yellow	Static light blue	Static purple	Static green-white
Static light yellow	Static sky blue	Static brown	Static blue white
Increase red	Increase green	Increase blue	Speed up
Decrease red	Decrease green	Decrease blue	Speed-down
DIY key1	DIY key2	DIY key3	Automatic change
DIY key4	DIY key5	DIY key6	Flash on and off
3 color jumpy change	7 color jumpy change	3 color fade change	7 color fade change

Specifications Working temperature:-20-60ºC
Supply voltage:DC12~24V
0utput:3 channels
Connecting mode:common anode
Controller size:L130×W65×H25mm
Package size:L135×W80×H54mm
New weight:180g
Gross weight:210g
Static power consumption:<1W
Output current:<4A/ch or <8A/ch (optional)
Output power: 12V/4A < 144W;12V/8A< 288W;24V/4A< 144W;24V/8A< 288W

Power:	288W
CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Material:	Metal
Battery Type:	Button Battery
Voltage:	12V-24V
