Advantage:
1.Accurate and strick color matching according to customer's requirement,both Panton and Ral color matching system ,using advanced light box and computer color mataching,we can also do half-tone printing
2. Good material control to make sure all the material are high quality ,all the material we used are Rohns compliant
3.Our engineer will work with customers and reommend specail constrution design to meet customer's desires ,such water proof ,dust proof and anti corrasion and so on
4. Strick quality inspection ,100 % funtional tesiting ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.
5. We are qualified Dara switch .5. Except membrane switch and touch screen, we can also do different types of assembly,such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.
6. We can accept small quantity order and offer competitve price.
Technical Parameters
1. Electrical
Maximum Circuit Rating: 35V(DC),100mA,1W
Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)
Insulation Resistance: 100MΩ 100V
Dielectric: 250 Vrms (50~60Hz 1min)
Contact Bounce: < 5ms
Life: Flat: ≥ 5million times
Tactile: ≥ 1 million times
Duraswitch: ≥ 10million times
2. Mechanical
Actuation Force: Flat: 57~284g(2~10oz)
Tactile: 170~397g(6~14oz)
Switch Height: Flat: 0.1~0.5mm
Tactile: 0.6~1.5mm
3. Environment
Operation Temperature: -40~+80 Degree Centigrade
Storage Temperature: -40~+80 Degree Centigrade
Humidity: 90%~95%, 240 hours
Vibration: 20G, max (10~200Hz,Mil-SLD-202,M204.Condition B)

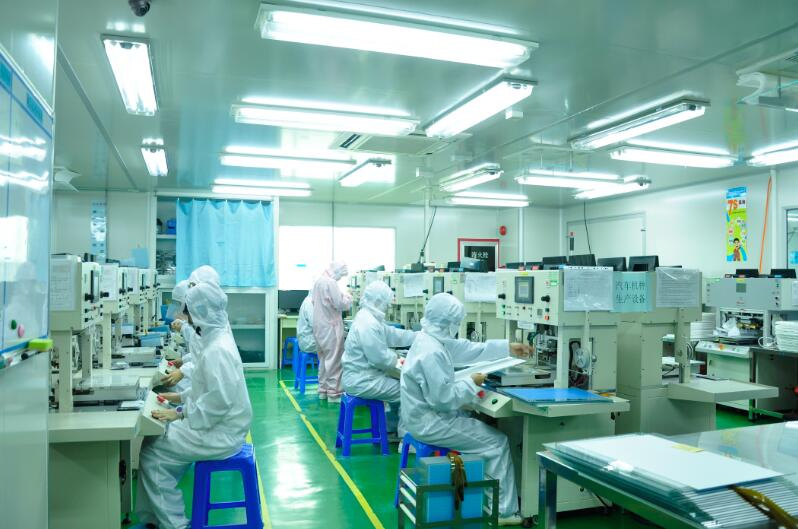

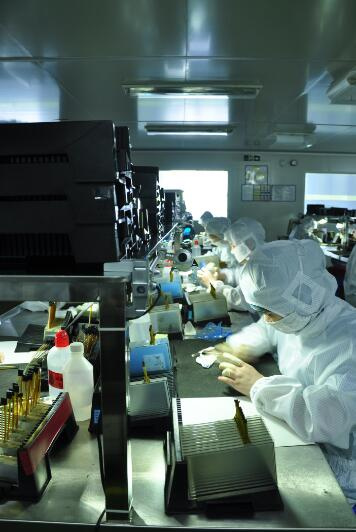

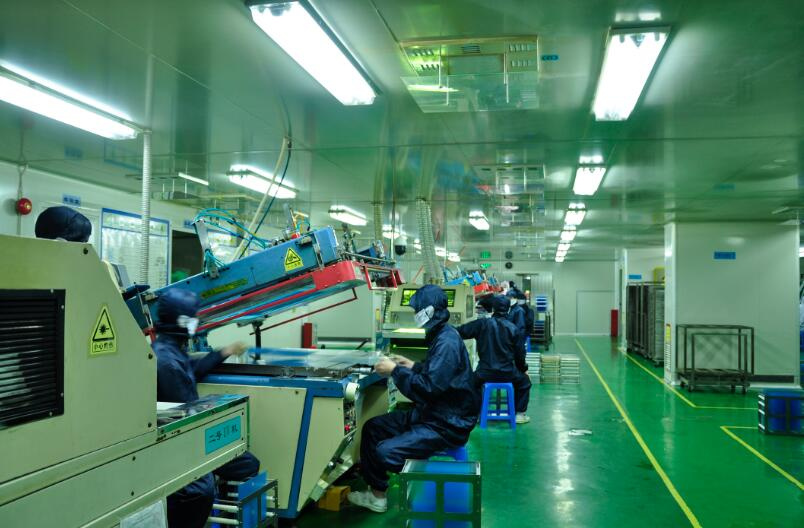

Guangzhou KayEE membrane keyboard switch Co., Ltd. Was formally established on June 1996 with 25 million investment. The total facilities are more than 5, 000 square meters, in which over 2, 000 square meters are 10, 000 Class Clean Room and 300 square meters are 1, 000 Class Clean Room. Our company now has over 800 employees in management, marketing, engineering and production, including 80 engineers and 50 quality control staff. All workers are fully trained before going to production line. We have successfully sold our products to Americas, Europe and Australia through our all employees' efforts. Our company's capability has reached 800, 000PCS/month in a very short period since company established.
Guangzhou KayEE specializes in designing and manufacturing Membrane switch, Graphic overlay, Label, SMT products, Capactive membrane switch, Resistive and Capacitive Touch Panel. We are making our efforts on providing our customers with high-quality and satisfactory products by importing the latest technology and equipment constantly from the United States, Japan and Taiwan. Our touch screen and membrane switches are widely used in communication equipments, industrial control, medical equipments, GPS, household appliances, and children's toys.
To ensure giving our customers the best quality and satisfaction products, our Company adopts Japanese advanced manufacturing technology and uses the first-class equipment and raw materials from United States, Japan and Taiwan. Our quality control system has got certification of ISO9001: 2000, TS 16949 and also the accreditation for RoHS to meet customer's requirements. The ERP management system to help our company using computer control all processes from Sales; Purchasing; Engineering; Production; Stockroom to Shipping. All our employees, from company leaders to production workers, will continue to make our efforts to give our customers the best quality products with satisfaction service.
