Yangzhou Borui Electric Lighting Co., Ltd.lifepo4 battery lithium-ion battery1. Feature:1. Long Cycle life
2. Lithium polymer battery is more better and safer
3. Thin format, light weight , large area, and flexibility in design.
4. Capacity and size could be customized
5. High energy density
6. Safety and reliable(with PCB), never explode
7. No pollution, clean energy
8. Small dimensions for high capacity
2. Specification introduction:lifepo4 battery lithium-ion battery | | 606090 | 5060125 | 7080125 | 18650 | 381200 |
| Size | 6.0*60*90mm | 5.0*60*125mm | 7.0*80*125mm | Φ18*65mm | Φ38*120mm |
| Capacity | 4000mAh | 5000mAh | 9000mAh | 2600mAh | 10000mAh |
| Charging Voltage Limit | 4.2V | 4.2V | 4.2V | 4.2V | 3.65V |
| Rated Voltage | 3.7V | 3.7V | 3.7V | 3.7V | 3.2V |
| Rated Capacity | 4000mAh | 5000mAh | 9000mAh | 2600mAh | 10000mAh |
| Standard Charging Current | 0.5C | 0.5C | 1.0C | 0.5C | 0.2C |
| Maximum Charging Current | 1.0C | 1.0C | 2.0C | 1.0C | 1.0C |
| Standard Discharge Current | 0.5C | 0.5C | 1.0C | 0.5C | 0.2C |
| Maximum Discharge Current | 1.0C | 1.0C | 1.0C | 1.0C | 1.0C |
| Working Temperature | Charging temp.:0-45ºC Discharge temp.:-20-60ºC |
| Storage Temperature | -10ºC-45ºC | -20ºC-35ºC |
| Charge Method | 0-45ºC 0.5C CC(constant current) charge to 4.2V, charge under CV(constant current) and stop until the charging current dropped ≤0.05C | 0-45ºC 0.2C CC(constant current) charge to 3.6V, charge under CV(constant current) and stop until the charging current dropped ≤0.05C |
| Advantages | High voltage, high capacity density, shape can be customized, environment protection
| high voltage, long cycle life, green | high security,long cycle life, green |
3. Application: 1. Telecommunications: cellular phone, interphone, cordless phone
2. Portable equipment: digital camera, portable DVD, portable television,
3. Portable Devices: GPS, PDA, PMP, PSP, portable medical device, insrument and apparatus etc.
4. Illuminate Devices: miner lamp, searchlight, lighting devies, emergency light.
5. Others: toys, rc models, power tools, Widely applied in POS system, Solar supply system, electric tools,household appliances and emergent device area.electric bikes, Laptop, camcorder, Military equipment: IR telescope, Medical devices.

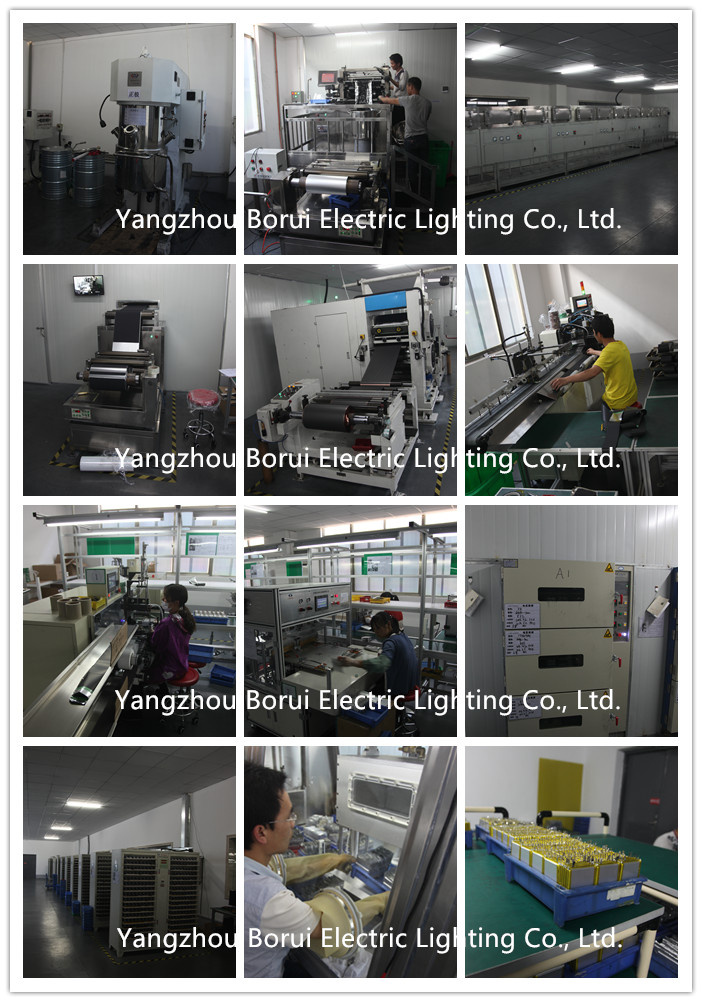

4. Factory and Equipment
Contact Us:
Tel: 86-532-83978013
Fax: 86-532-83978023
Mob: 86-15192600825
Service:
1. Reply your inquiry in 12 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. 4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 15years, competitive with good quantity.7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you are in need of our products, you may let us know and we will offer you good products with great quality and service.FAQ:
1. How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.
2. Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.
3. What's your warranty for battery?
Our battery the warranty time is 5 years .
4.Can I force-discharge lithium batteries?
When batteries are force-discharged with an external power source, the voltage drops to under 0 volts (which is called voltage reversal ) and internal gas is generated. This can lead to swelling, heat generation, leakage, rupture or fire.
5.Can I use Lithium batteries mixing with other battery types?
If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc., may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
6.Where should lithium batteries be stored?
Lithium batteries should be stored in a cool, dry place that is not exposed to direct sunlight and has minimal temperature variation. Storage in areas subject to high temperature or humidity may cause deterioration in battery quality and durability. To avoid short circuiting batteries during storage, be sure that the positive and negative terminals do not come into contact with each other.
7.What is a short circuit?
If the positive and negative terminals of a battery come into contact with each other or with a conductive metallic object, this can cause a short circuit, which generates heat. If cells or batteries are stacked on top of each other or mixed, the resulting short circuit can lead to heat generation, leakage, rupture, and possibly fire.
Yangzhou Borui photoelectric Group Co. Ltd. Is located in the historical and cultural city of Yangzhou city China. Founded in 2006, after several years of business, pioneering and development, has now become domestic municipal engineering road lighting, urban landscape lighting, new energy, solar lighting and power generation project design, manufacture, installation in one comprehensive enterprise group.
The group company with three subsidiary companies: Jiangsu lithium Ba power supply Co., Ltd. Major producers of lithium ion polymer battery, product application in energy storage of solar energy, communication base station, mobile power supply, electronic products, electric tools, electric bicycles and other industries.
Yangzhou City Borui photoelectric lighting Co., Ltd. Mainly in the production of solar cell components, high road LED lighting, solar lights, solar lawn lamp, square Gaogan Deng, urban road lighting street lamps, urban landscape lighting and so on.
"Jiangsu Borui traffic facilities Co., Ltd., power tower, communication tower, highway gantry, f display, road signs, road traffic signal lamp, traffic signal machine series products.
Since its inception, the group has won various awards, by all sectors of the community. At present, our products have been exported to Europe, America, Southeast Asia and other countries and regions, and have achieved good international reputation.
"People-oriented, market-oriented, science and technology as the foundation, by industry standards, quality assurance, to the world market as the goal" is we will continue the pursuit, we would like to with the best quality products, the most perfect service to new and old customers to cooperate, create harmonious time saving, together to create a more perfect beautiful new world.
Welcome new and old customers to guide, cooperation and win-win! Create the future!
