Name: Light Duty Small Geared Motor Reducer High Ratio Transmission Gear Motor
Brand: all-electronics-online.com
SKU: 718309462
Availability: InStock
Rating: 4.7 (117 reviews)

Price:	US $ 60-400/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

G series helical gear reducer motor

Characteristics

Gears are designed with high contact ratio and high stiffness to lower the noise. Triple lip seal protection oil leakage design is excellent choice for food & beverage manufacturing application installations.

Gears are designed with high contact ratio and high stiffness to lower the noise
Compact design achieved using high stiffness casing and new motor design
Triple lip seal for leakage protection.
High radial capacity bearing and high stiffness casing increase Radial Load Capacity
Reduced brake noise
Power coated paint using thermosetting method for higher stain and scratch resistance (does not contain any organic solvent).

Specifications

1. Mounting stctrue: Horizonal foot mounted, Vertical flange mounted
2. Motor power:100W,200W,400W,750W,1500W,2200W,3700W
3.Gear ratio: 5,10,12.5,15...1800
4. Input form: direct with motor, IEC flange, input shaft
5. Motor option:
A:3-phase motor, 220/380V, 50Hz
B:3-phase motor,220/380V, 50/60Hz
C:single-phase motor,220v,50Hz
D: brake motor

Models & Sizes

G18, G22, G28, G32, G40, G50
GL18, GL22, GL28, GH32, GH40, GH50
GLW18, GLW22, GLW28, GHW32, GHW40, GHW50
GLF18, GLF22, GLF28, GHF32, GHF40, GHF50
CHCV0.1KW, CHCV0.2KW, CHCV0.4KW, CHCV0.75KW, CHCV1.5KW, CHCV2.2KW

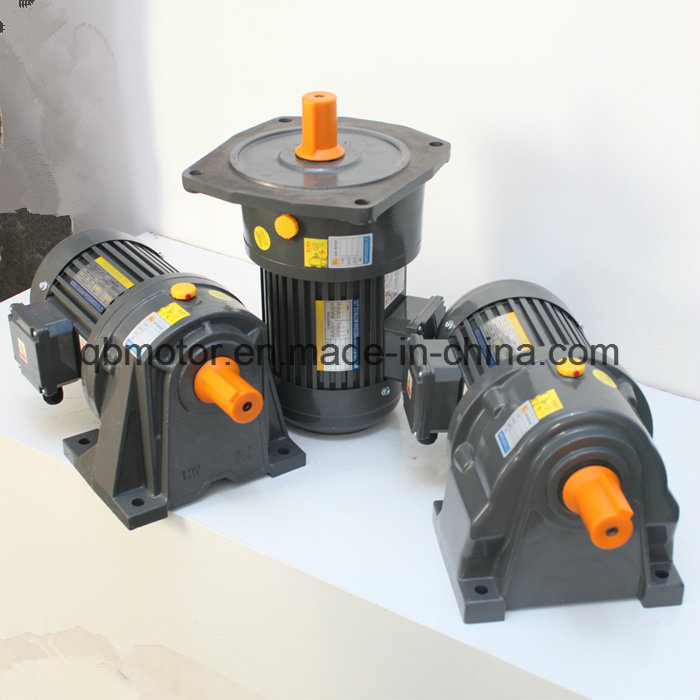

G series helical gear reducer motor, with 3-phase, single-phase motor

Workshop

Main Applications

Perfect for the machinery and equipment of following industry:

Conveyor & Material handling
Mining & Quarry
Crusher & Cement
Automatic production line & Mixer
Transport & Packaging
Food machine & Beverage
Construction & Metal processing

Our Services

With an installed fleet of more than 500,000 high speed gearboxes, CHBNS will become your alliance partner for the maintenance of your equipment at the highest technological level of performance and durability.

Highly skilled service engineers available in 24 hours
Delivery in shortest time
Warranty: 12 months (Free spares will be provided as non-artificial quality reason within 12 months)

Prod Model:	GH(V)18; 22; 28; 32; 40; 50;
Ratio:	5-1800
Power:	100W - 2.2kw
Output Speed:	0.83 - 360rpm
Mounting:	Horizontal, Vertical Mounted
Color:	Grey or Other
Number Of Stator:	Three-Phase
Function:	Driving
Brand:	Chbns

Wenzhou QIAOBANG Precision Motor Co., Ltd is cocated in Wenzhou, one of the most economically dynamic cities in China. Centering on the concept of "innovation in technology, management and process", our company is constantly moving forward and increasingly, expanding our production scale.

The company's main products include gear reducers and gear reducer brake motors, gear reducer motor, which are characterized by: Compact structure, light weight, low noise and maintenance free. As a preferred auxiliary product of automatic equipment, our products are widely applied in such field as industrial production line, conveyor machinery, food machinery, medical machinery, printing machinery, texile machinery, packaging machinery, office equipments, instrument, meters and automatic mahjong machine.

Our company owns modern workshops, world advanced manufacturing, processing and testing equipments and strong technical capability, being able to design and develop nonstandard gear reducers applicable for complicated conditions for customers.

We've won extensive trust in clients both at home and abroad on the strength of our high quality staff team, advanced and efficient processing equipment. Strict quality assurance system and perfect after service. Our sales and marketing networks cover all major provinces and municipalities of China, and exported to many countries and regions, like Southeast Asia and Taiwan.
