YUEQING RELETEK ELECTRIC CO., LTD. >> Liquid Level Control Relay

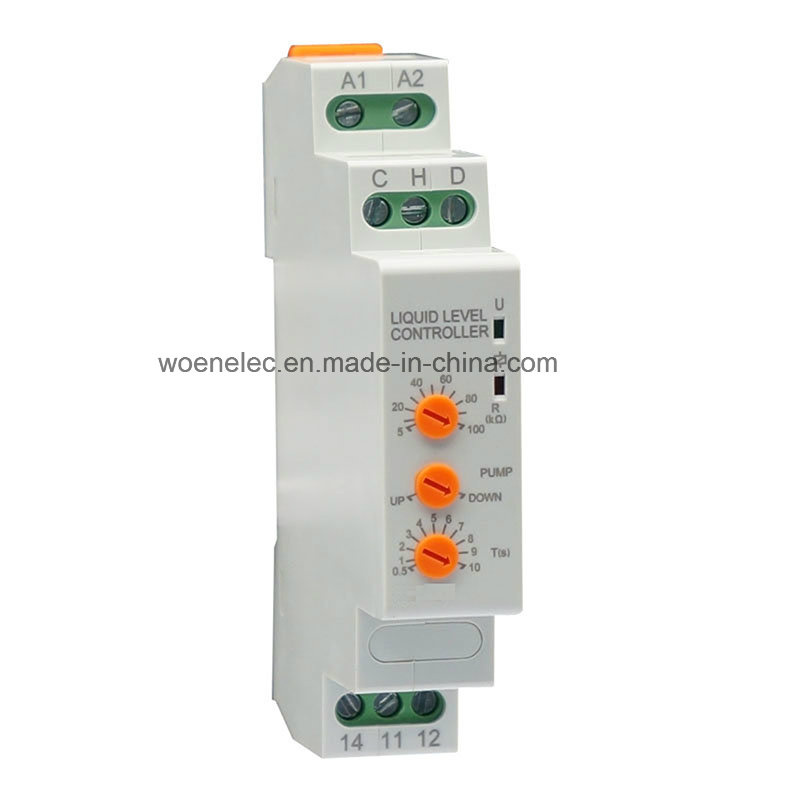

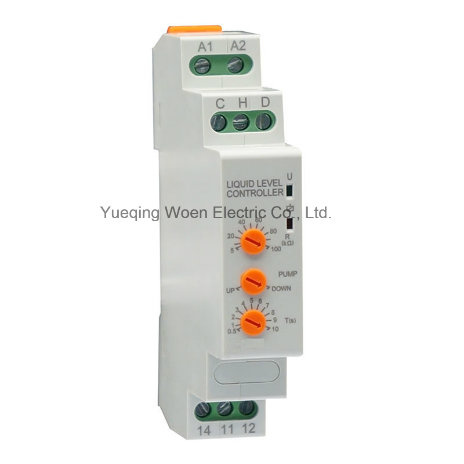

Liquid Level Control Relay

Liquid Level Control Relay
Price: US $ 8/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: LLC2

Product Description


Introduction

Liquid level controller is used for the filling and draining control of conductive liquids in tanks located in industrial plants and at home.

Features
1. Microprocessor control technology
2. One modules, 18mm wide
3. Sensitivity 5kohm-100kohm adjustable
4. Work with 2 or electrodes mode
5. Draining and filling
6. LED indication for power supply and relay status
7. Din-rail mounting


Technical data

Supply terminalsA1,A2
Rated supply voltageAC/DC 24-240V
Rated frequency50/60Hz
Sensitivity 5-100kohm adjustable
Trip delay0.5-10s
Output contact1C/O
Current rating8A/250V AC1
Insulation voltage415V
Mechanical life10000000
Electrical life1000000
Protection degreeIP20
Pollution degree3
Altitude≤2000m
MountingTH-35 Rail
