Prod Model: |
nickel Foam |
Type Of Battery: |
NiMH |
Material: |
Pure Nickel |
Ppi: |
15~120 |
Width: |
50~960 |
Thickness: |
0.3~20 |
MOQ: |
1 Square Meter/Square Meters |
Type: |
Ni-MH Batteries |
Usage: |
Boat |
Discharge Rate: |
High Discharge Rate |
Shape: |
Square Battery |
Rechargeable: |
Chargeable |
Product Description

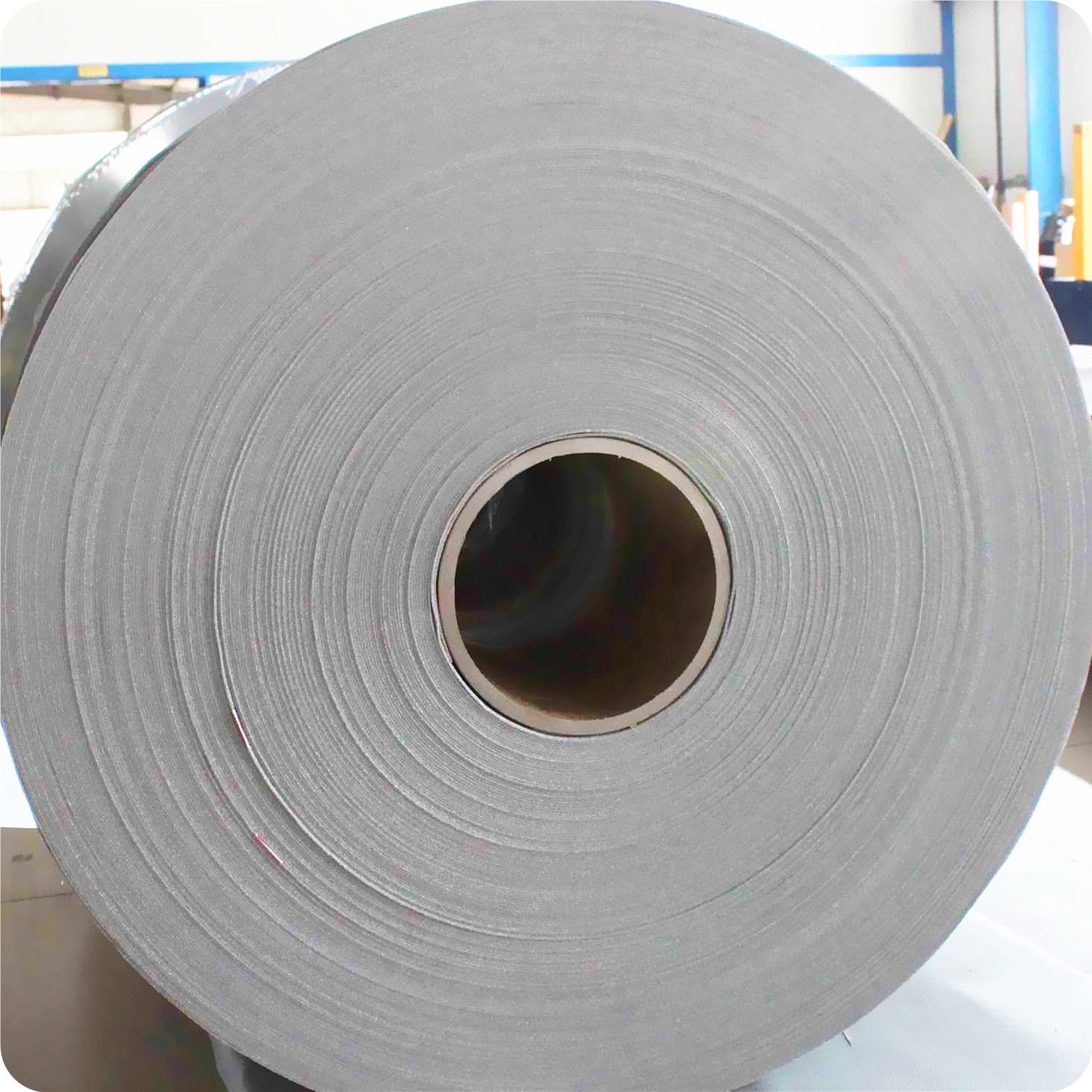

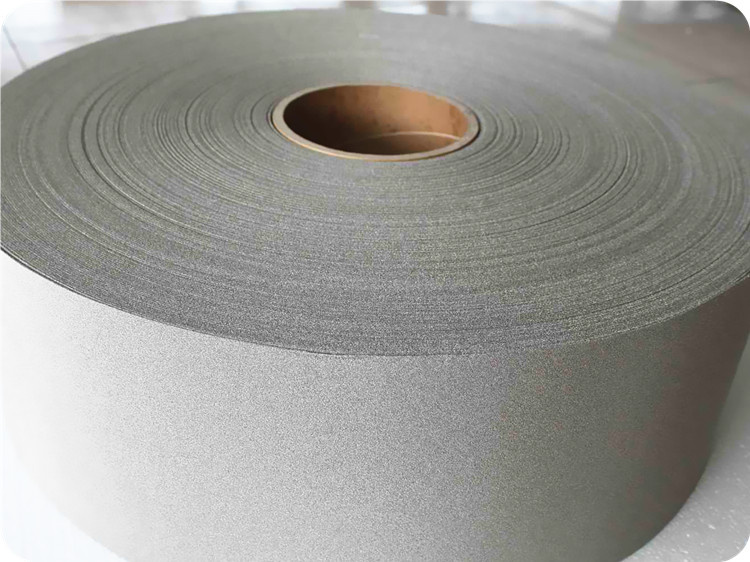

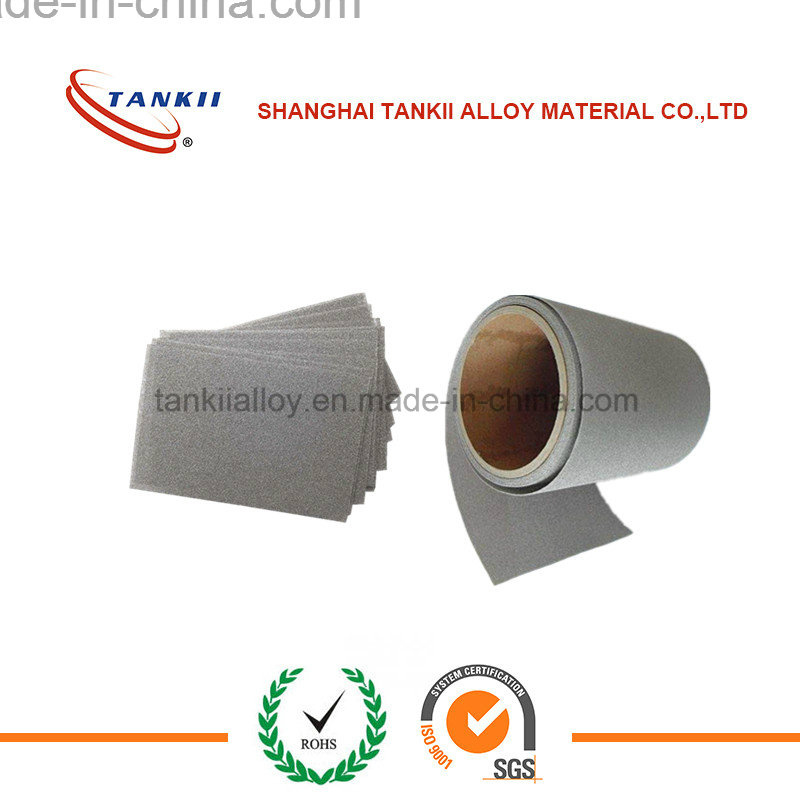

Nickel Foam Sheet For Filter(ing) Medium
Foam Nickel is a low density permeable material that has a very high porosity with typically 75-95% of the volume consisting of void spaces. Nickel Foam has a wide variety of applications in heat exchangers, energy absorption, flow diffusion, lightweight optics and is used as a filter material for gas and liquid.
Tankii supplies high quality nickel foam for rechargeable battery applications. Our plates have proven to be excellent electrode substrates for Ni-Cd and Ni-H rechargeable batteries and hydrogen storage units.
Nickel Foam for Battery Cathode Substrate (1000mm length x 300mm width x 1.6mm thickness)
Specifications:
Pecifications
Ni Foam product is composed by pure Nickel.
Thickness: 0.3-20mm
Density: 280g/m2~4000g/m2
PPI: 15~120
Width:50~960mm
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness. Usefulness: (Various shapes can be produced)
1. Used as the base plate of positive electrode in Ni-MH / Ni-Cd battery.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
SPECIFICATION |
ITEM | CONTINUOUS NICKEL FOAM | THICK NICKEL FOAM |
THICKNESS | (0.3~2.5)±0.05mm | (2.6~12)±0.05mm |
PPI | 90~120 | 20~80 |
SURFACE DENSITY | (280~1800)±30g/M2 | (400~3000)±30g/M2 |
TENSILE STRENGTH | (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2 | |
ELONGATION | (VERTICAL)≥5% (HORIZONTAL)≥12% | |
POROSITY | ≥96% | ≥96% |
WIDTH | (50~960)±0.5mm | (50~960)±0.5mm |
SPLICE FREQUENCY | 200m≤4 junction | largest length 1000mm |
RATIO RESISTANCE | ≤5X10-6 | ≤5X10-6 |

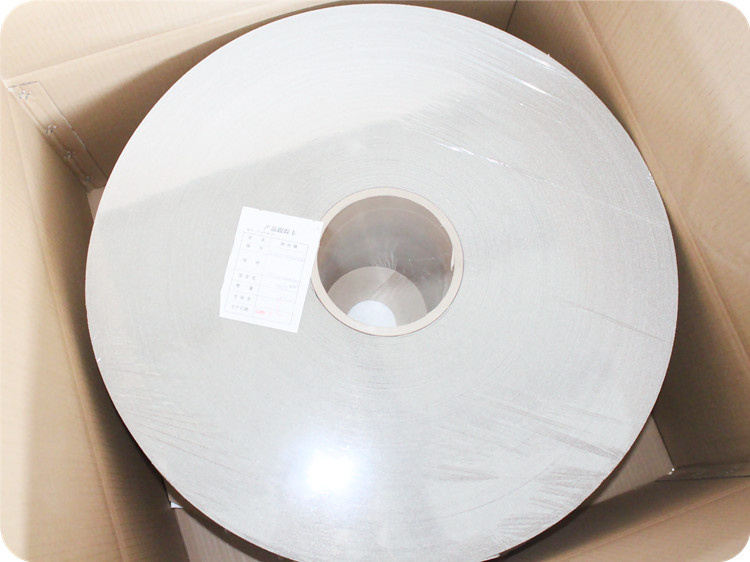

Package
Why Us:
Good quality control in production process, ISO9001:2008,SGS,BV approved.
Excellent quality and Competitive price, OEM is available.
Available in an extensive range of stock or custom size.
The whole process from material to finished products can be traced.
Our Service:
Your inquiry related to our product & price will be replied within 24hours.
Well-trained & experienced staff are to answer all your inquiries professional in English of course.
OEM is highly welcomed. We have strong R&D team here to help.
Good after-sale service offered, please get back if you got questio
