Zhejiang GBS Energy Co., Ltd. >> Lithium Ion Battery/Lithium Battery/LiFePO4 Battery 100ah for Electric Vehicles, Motorcycle, Bus, Electric Truck, Pallet Stacker, Solar Energy Storage System

Lithium Ion Battery/Lithium Battery/LiFePO4 Battery 100ah for Electric Vehicles, Motorcycle, Bus, Electric Truck, Pallet Stacker, Solar Energy Storage System

Lithium Ion Battery/Lithium Battery/LiFePO4 Battery 100ah for Electric Vehicles, Motorcycle, Bus, Electric Truck, Pallet Stacker, Solar Energy Storage System
Price: US $ 100-120/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.












Item

Specification

Remark

 Rated capacity

100Ah

0.2C rate discharge capacity

 Minimum capacity

100Ah

 Internal impedance

≤0.6mΩ



 Nominal voltage

3.2V



 Cell weight

2.8±0.1KG



 Standard discharge

 conditions

 Constant current

50A



 End-of-discharge voltage

2.5V



 Standard charge method

 Constant current

25A



 Charge voltage

3.55V



 Fast charge method

 Constant current

100A



 Charge voltage

3.55V



 Max continuous discharge current

300A



 Cycle life

3000 cycles

 80% DOD

 Operating temperature

 Charging ambient

 temperature

0~65°C



 Discharging ambient

 temperature

-20~65°C



 Storage temperature

-20~65°C



 Appearance

 Without break,

 distortion, contamination,

 leakage.









Basic Performance

(1Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6)  It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

(7)  Low cost.

(8)  No pollution during manufacture and usage.





Matters needing attention

(1)  Please check if spare parts are completed when open the package and read the operation manual carefully.

(2)  Do not make the battery Short Circuit,do not over charge and discharge.

(3)  Please charge the new battery to full capacity before discharge for the first use.

(4)  The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

(5)  Checking the voltage of battery, normally it is 3.2V-3.3V.

(6)  Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

(7)  Rivet or screw is used for battery connector.

(8)  Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

(9)  The charger used should be approved by our company in order to match with our lithium batteries.

(10)  It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won't be within our company warranty.



Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.

Service line: +86-400-884-7799

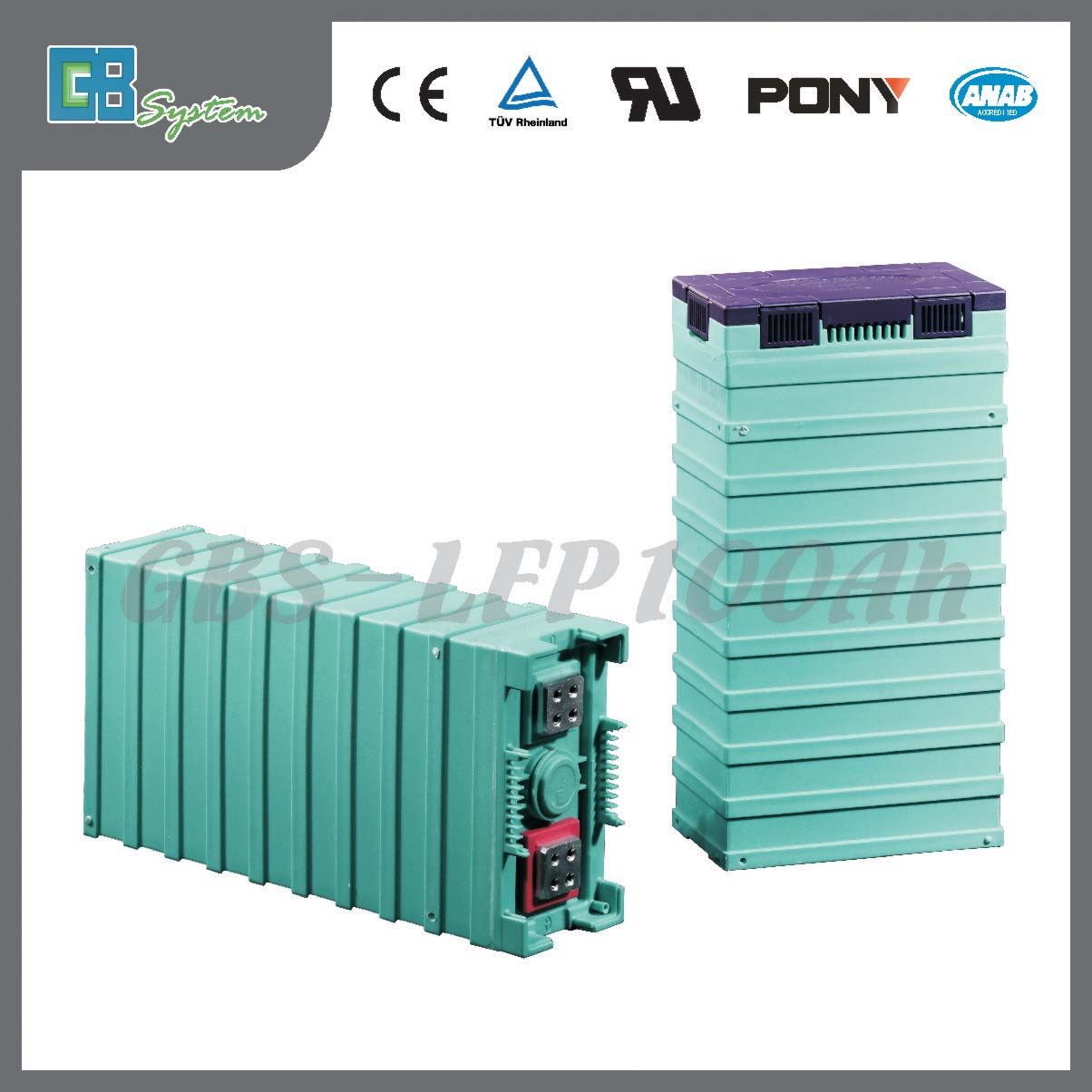

Prod Model: GBS-LFP100Ah
Type: Lithium-Ion Batteries
Usage: Boat
Discharge Rate: High Discharge Rate
Rechargeable: Chargeable
Nominal Voltage: 3.2V
Shape: Prismatic
Established in 2007, Zhejiang GBS Energy Co., Ltd. is a national high-tech lithium battery manufacturer who specializes in developing and producing LiFePO4 battery and battery system integration. Our company owns the unique production process and battery pack technique, achieves more than 50 invention, practical and appearance patents and gets approval of ISO9001: 2008 quality management system, ISO14001: 2004 environmental management system and OHSAS18001: 2007 occupational safety and health management system.

Our company has been committed to becoming the leader of lithium battery in both electric vehicle and telecommunication industry. We have developed more than 20 battery products with single cell capacity ranging from 20Ah to 400Ah, which passed the test of North Institution of Vehicle Quality Intendence Inspection&Authenticate(201 Institution). Information Industry Post Industrial Product Intedence Inspection Center, Information Industry Communication Power Supply Quality Intendence Inspection Center and CE certificate. The products are successfully applied in electric scooter, electric vehicle, telecommunication storage and so on.

With company culture of "Innovation Improves Quality, Quality Wakes Up Ideas, Ideas Improve Environment and Environment Benefits Mankind" AMD company spirit of "Wild Goose Team". Zhejiang GBS continuously improves quality and services. We devote ourselves in producing and promoting green energy applications in the world. We believe Green Energy will dominate the future!
