Live Container Tracking System with Real Time Door Open Alert

Name: Live Container Tracking System with Real Time Door Open Alert
Brand: all-electronics-online.com
SKU: 697747432
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	US $ 150/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

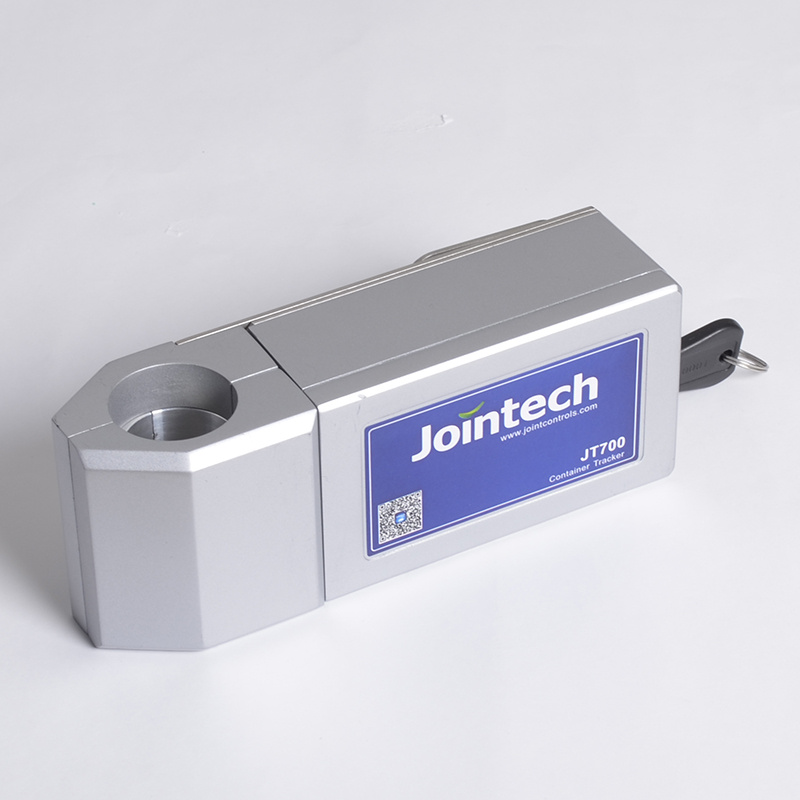

Prod Model:	JT700
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tracker:	Container/Trailer Tracker
Waterproof:	IP67
Battery Life:	3 Years
Antennas:	Built-in
Real Time Alert:	Door Open, Low Power, Tamper

Product Description

JT700 is mainly used for outdoor surveillance industry segments, especially container monitoring sub-sectors
Specially designed for outdoor items, monitoring, base plus host fission design for easy installation management
Support remove the closed and open alarm to ensure goods safety
Low power design, delay battery service lifespan
Waterproof IP67 standard, 30 minutes without water under 1 meter deep

Function:
1. Working mode:
Standby mode: main working mode can divide into standby wakeup running stage, standby-sleep stage
Tracking mode: continue uploading real time tracking data, the max time interval is 24hrs and the min is 5s
2. Mode change:
Can change working model between this 2 models by command
3. Configure in wakeup status:
Configure in wake up status
When powered, it will have 10mins for configuration in default
Once detect any configuration steps or command, it will keep working at least 2mins from the last configuration time point
4. Location data uploading:
Tracking mode and main working configuration process, anti dismount alert, trigger stage follow up the settled uploading time interval
Standby stage don't upload location data
RTC wake-up upload only one location data
RTC wakeup (make sure wake-up and uploading data successfully)
5. Support multi time point uploading:
Able to set maximum 4 time point in each time for RTC wake-up time
6. Data storage supplementary:
If RTC wake-up uploading data not successful, the data will be restored
Maximum stored data: 1000pcs
These storage data will be uploaded supplementary by next wake-up
Positioning (to ensure positioning)
7. Double locating:
5mins GPS locating time and 10mins LBS locating time to make sure location successfully
Double locating
8. Anti dismount alert:
Once device installed on the stand, working normally, once it dismount or creep down, alert will generate and keep working 10min
9. Area alert:
Enter/out of area alerts
Area is polygon (maximum 50 angle), 1pc
Once enter/out of area more than 15s, as valid alert
10. Door alert:
Triggered to alert once container open/close the door
11. Low power consumption:
Main working mode most working under standby mode
RTC standby runs under the lowest power consumption mode
12. Time difference synchronization:
Synchronization with local time by commands
13. Inquiry by parameters configuration:
Could set/inquiry device parameter by configuration software or web remote configuration
14. Factory setting via commands
