Liyy/Liycy Flexible Control Power Cable Data Transfer Cable
| Price: |
US $ 0.12-1.28/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |

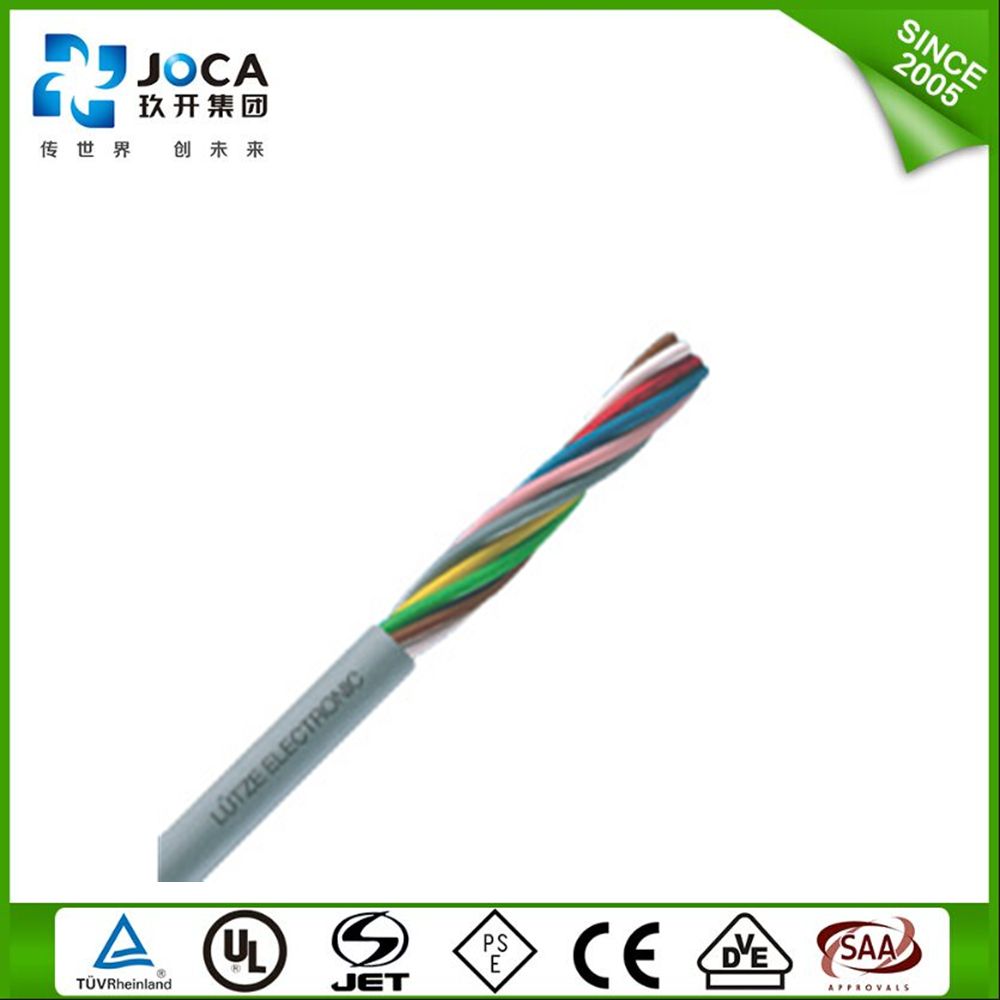

LiYY/LiYCY flexible control power cable data transfer cable
Product Description
1. PVC Insulated
2. PVC Sheathed
3. bare or tinned copper shielded
4.CE approve

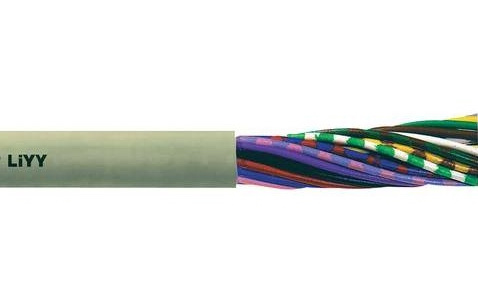

LiYY cables are data transmission cables which have been developed from well proven types based on the
specification VDE 0812. For use in flexible or stationary applications under low mechanical stress with free
movement without any tensile stress, loads or forced movements in dry, moist and wet conditions. Commonly
used as control and signal cables in the electronics of computers systems, electronic control equipment,
office machines and measurement devices in the tool making and machine industries. LiYY is recommended
when a small outer diameter is required. Not permitted for outdoor use.
Cable Construction
- Plain copper conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5
- PVC core insulation type T12 to DIN VDE 0281 part 1
- Color coded to DIN 47100, but without color repetition
- PVC outer jacket type TM2 to DIN VDE 0281 part 1
| LiYY | LiYCY | LiYY(TP) |
| No. of Cores and mm2 per conductor | Conductor Construction | Weight (kg/km) | Outer diameter (mm) | No. of Cores and mm2 per conductor | Conductor Construction | Approx weight (kg / km) | Outer diameter (mm Max.) | Pairs | No. of Cores and mm2 per conductor | Conductor Construction | Approx weight (kg / km) | Outer diameter (mm Max.) |
| 0.14*2C | 18/0.1 | 18.3 | 3.4 | 0.14*2C | 18/0.1 | 19 | 4.1 | 2 | 0.14*2C | 18/0.1 | 36.4 | 5.9 |
| 0.14*3C | 18/0.1 | 21.3 | 3.6 | 0.14*3C | 18/0.1 | 22.6 | 4.3 | 3 | 0.14*2C | 18/0.1 | 47 | 6.4 |
| 0.14*4C | 18/0.1 | 25.2 | 3.9 | 0.14*4C | 18/0.1 | 29 | 4.8 | 4 | 0.14*2C | 18/0.1 | 55.7 | 6.9 |
| 0.14*5C | 18/0.1 | 29.4 | 4.2 | 0.14*5C | 18/0.1 | 33.4 | 5.1 | 5 | 0.14*2C | 18/0.1 | 68.3 | 7.6 |
| 0.14*6C | 18/0.1 | 35.8 | 4.7 | 0.14*6C | 18/0.1 | 37.8 | 5.4 | 6 | 0.14*2C | 18/0.1 | 77.6 | 8.2 |
| 0.14*7C | 18/0.1 | 38.9 | 4.7 | 0.14*7C | 18/0.1 | 40.8 | 5.4 | 7 | 0.14*2C | 18/0.1 | 83.8 | 8.2 |
| 0.14*8C | 18/0.1 | 43.3 | 5 | 0.14*8C | 18/0.1 | 45.2 | 5.7 | 8 | 0.14*2C | 18/0.1 | 93.2 | 8.8 |
| 0.14*9C | 18/0.1 | 48.4 | 5.5 | 0.14*9C | 18/0.1 | 53.1 | 6.4 | 9 | 0.14*2C | 18/0.1 | 108.7 | 9.8 |
| 0.14*10C | 18/0.1 | 56.6 | 6 | 0.14*10C | 18/0.1 | 57.7 | 6.7 | 10 | 0.14*2C | 18/0.1 | 123.3 | 10.6 |
| 0.14*11C | 18/0.1 | 60.9 | 6.2 | 0.14*11C | 18/0.1 | 61.5 | 6.9 | 11 | 0.14*2C | 18/0.1 | 131.4 | 10.8 |
| 0.14*12C | 18/0.1 | 63.1 | 6.2 | 0.14*12C | 18/0.1 | 64.5 | 6.9 | 12 | 0.14*2C | 18/0.1 | 137.6 | 10.8 |
| 0.25*2C | 16/0.14 | 25.5 | 4 | 0.25*2C | 16/0.14 | 25.6 | 4.7 | 13 | 0.14*2C | 18/0.1 | 147 | 11.3 |
| 0.25*3C | 16/0.14 | 29.9 | 4.2 | 0.25*3C | 16/0.14 | 30.9 | 4.9 | 14 | 0.14*2C | 18/0.1 | 153.2 | 11.3 |
| 0.25*4C | 16/0.14 | 37.8 | 4.7 | 0.25*4C | 16/0.14 | 36.7 | 5.2 | 15 | 0.14*2C | 18/0.1 | 168.6 | 12.1 |
| 0.25*5C | 16/0.14 | 43.9 | 5.1 | 0.25*5C | 16/0.14 | 42.7 | 5.6 | 16 | 0.14*2C | 18/0.1 | 174.8 | 12.1 |
| 0.25*6C | 16/0.14 | 50.1 | 5.5 | 0.25*6C | 16/0.14 | 51.8 | 6.2 | 17 | 0.14*2C | 18/0.1 | 185 | 12.6 |
| 0.25*7C | 16/0.14 | 54.6 | 5.5 | 0.25*7C | 16/0.14 | 56.2 | 6.2 | 18 | 0.14*2C | 18/0.1 | 191.2 | 12.6 |
| 0.25*8C | 16/0.14 | 60.8 | 5.9 | 0.25*8C | 16/0.14 | 62.5 | 6.6 | 19 | 0.14*2C | 18/0.1 | 197.3 | 12.6 |
| 0.25*9C | 16/0.14 | 71.3 | 6.6 | 0.25*9C | 16/0.14 | 69.4 | 7.1 | 20 | 0.14*2C | 18/0.1 | 205.6 | 12.9 |
| 0.25*10C | 16/0.14 | 79.1 | 7 | 0.25*10C | 16/0.14 | 79.3 | 7.7 | 2 | 0.25*2C | 16/0.14 | 48.9 | 6.8 |
| 0.25*11C | 16/0.14 | 85.2 | 7.2 | 0.25*11C | 16/0.14 | 84.8 | 7.9 | 3 | 0.25*2C | 16/0.14 | 59.5 | 7.1 |
| 0.25*12C | 16/0.14 | 88.5 | 7.2 | 0.25*12C | 16/0.14 | 89.2 | 7.9 | 4 | 0.25*2C | 16/0.14 | 75.5 | 7.8 |
| 0.34*2C | 22/0.14 | 28.1 | 4.1 | 0.34*2C | 22/0.14 | 27.9 | 4.8 | 5 | 0.25*2C | 16/0.14 | 88.3 | 8.5 |
| 0.34*3C | 22/0.14 | 33.4 | 4.3 | 0.34*3C | 22/0.14 | 34.2 | 5 | 6 | 0.25*2C | 16/0.14 | 105.8 | 9.3 |
| 0.34*4C | 22/0.14 | 42.3 | 4.9 | 0.34*4C | 22/0.14 | 41 | 5.4 | 7 | 0.25*2C | 16/0.14 | 115.1 | 9.3 |
| 0.34*5C | 22/0.14 | 49.4 | 5.2 | 0.34*5C | 22/0.14 | 48.1 | 5.7 | 8 | 0.25*2C | 16/0.14 | 128.4 | 10 |
| 0.34*6C | 22/0.14 | 56.7 | 5.7 | 0.34*6C | 22/0.14 | 58.2 | 6.4 | 9 | 0.25*2C | 16/0.14 | 148.4 | 11.1 |
| 0.34*7C | 22/0.14 | 62.1 | 5.7 | 0.34*7C | 22/0.14 | 63.6 | 6.4 | 10 | 0.25*2C | 16/0.14 | 168.3 | 12 |
| 0.34*8C | 22/0.14 | 72.4 | 6.3 | 0.34*8C | 22/0.14 | 70.9 | 6.8 | 11 | 0.25*2C | 16/0.14 | 179.9 | 12.4 |
| 0.34*9C | 22/0.14 | 81 | 6.8 | 0.34*9C | 22/0.14 | 82.4 | 7.5 | 12 | 0.25*2C | 16/0.14 | 189.2 | 12.4 |
| 0.34*10C | 22/0.14 | 89.9 | 7.2 | 0.34*10C | 22/0.14 | 89.9 | 7.9 | 13 | 0.25*2C | 16/0.14 | 202.5 | 12.9 |
| 0.34*11C | 22/0.14 | 97.2 | 7.4 | 0.34*11C | 22/0.14 | 96.4 | 8.1 | 14 | 0.25*2C | 16/0.14 | 211.8 | 12.9 |
| 0.34*12C | 22/0.14 | 101.2 | 7.4 | 0.34*12C | 22/0.14 | 101.8 | 8.1 | 15 | 0.25*2C | 16/0.14 | 232.1 | 13.8 |
| 0.34*13C | 22/0.14 | 113.3 | 8 | 0.5*2C | 33/0.14 | 37.7 | 5.7 | 16 | 0.25*2C | 16/0.14 | 241.4 | 13.8 |
| 0.34*14C | 22/0.14 | 117.2 | 8 | 0.5*3C | 33/0.14 | 50.2 | 6.2 | 17 | 0.25*2C | 16/0.14 | 255.7 | 14.4 |
| 0.34*15C | 22/0.14 | 126.1 | 8.3 | 0.5*4C | 33/0.14 | 60.8 | 6.6 | 18 | 0.25*2C | 16/0.14 | 264.9 | 14.4 |
| 0.34*16C | 22/0.14 | 130.2 | 8.3 | 0.5*5C | 33/0.14 | 71.6 | 7.2 | 19 | 0.25*2C | 16/0.14 | 274.2 | 14.4 |
| 0.5*2C | 33/0.14 | 43.2 | 5.2 | 0.5*6C | 33/0.14 | 86.3 | 7.9 | 20 | 0.25*2C | 16/0.14 | 293.2 | 15 |
| 0.5*3C | 33/0.14 | 51.2 | 5.5 | 0.5*7C | 33/0.14 | 94.7 | 7.9 | 2 | 0.34*2C | 22/0.14 | 53.8 | 7 |
| 0.5*4C | 33/0.14 | 61.5 | 5.9 | 0.5*8C | 33/0.14 | 105.9 | 8.4 | 3 | 0.34*2C | 22/0.14 | 66.8 | 7.3 |
| 0.5*5C | 33/0.14 | 75.4 | 6.7 | 0.5*9C | 33/0.14 | 122.5 | 9.4 | 4 | 0.34*2C | 22/0.14 | 85 | 8.1 |
| 0.5*6C | 33/0.14 | 86.6 | 7.2 | 0.5*10C | 33/0.14 | 133.9 | 9.9 | 5 | 0.34*2C | 22/0.14 | 99.9 | 8.8 |
| 0.5*7C | 33/0.14 | 95.1 | 7.2 | 0.5*11C | 33/0.14 | 148.8 | 10.4 | 6 | 0.34*2C | 22/0.14 | 119.6 | 9.7 |
| 0.5*8C | 33/0.14 | 110 | 7.9 | 0.5*12C | 33/0.14 | 157.2 | 10.4 | 7 | 0.34*2C | 22/0.14 | 130.8 | 9.7 |
| 0.5*9C | 33/0.14 | 123.5 | 8.7 | 0.75*2C | 49/0.14 | 47.9 | 6.3 | 8 | 0.34*2C | 22/0.14 | 151.3 | 10.6 |
| 0.5*10C | 33/0.14 | 142 | 9.4 | 0.75*3C | 49/0.14 | 60.5 | 6.6 | 9 | 0.34*2C | 22/0.14 | 168.6 | 11.5 |
| 0.5*11C | 33/0.14 | 153.4 | 9.7 | 0.75*4C | 49/0.14 | 74.1 | 7.1 | 10 | 0.34*2C | 22/0.14 | 190.2 | 12.4 |
| 0.5*12C | 33/0.14 | 159.5 | 9.7 | 0.75*5C | 49/0.14 | 91.8 | 7.9 | 11 | 0.34*2C | 22/0.14 | 203.9 | 12.7 |
| 0.75*2C | 49/0.14 | 52.1 | 5.6 | 0.75*6C | 49/0.14 | 106 | 8.5 | 12 | 0.34*2C | 22/0.14 | 215.2 | 12.7 |
| 0.75*3C | 49/0.14 | 62.7 | 5.9 | 0.75*7C | 49/0.14 | 117.2 | 8.5 | 13 | 0.34*2C | 22/0.14 | 237.6 | 13.6 |
| 0.75*4C | 49/0.14 | 79 | 6.6 | 0.75*8C | 49/0.14 | 135.9 | 9.3 | 14 | 0.34*2C | 22/0.14 | 248.8 | 13.6 |
| 0.75*5C | 49/0.14 | 93.1 | 7.2 | 0.75*9C | 49/0.14 | 151.5 | 10.1 | 15 | 0.34*2C | 22/0.14 | 265 | 14.3 |
| 0.75*6C | 49/0.14 | 111.2 | 8 | 0.75*10C | 49/0.14 | 171.3 | 10.9 | 16 | 0.34*2C | 22/0.14 | 276.2 | 14.3 |
| 0.75*7C | 49/0.14 | 122.4 | 8 | 0.75*11C | 49/0.14 | 184.3 | 11.2 | 17 | 0.34*2C | 22/0.14 | 299.8 | 15.2 |
| 0.75*8C | 49/0.14 | 137 | 8.6 | 0.75*12C | 49/0.14 | 195.5 | 11.2 | 18 | 0.34*2C | 22/0.14 | 311 | 15.2 |
| 0.75*9C | 49/0.14 | 158.5 | 9.6 | 1.0*2C | 35/0.19 | 55.42 | 6.7 | 19 | 0.34*2C | 22/0.14 | 322.2 | 15.2 |
| 0.75*10C | 49/0.14 | 176.6 | 10.2 | 1.0*3C | 35/0.19 | 70.97 | 7.0388 | 20 | 0.34*2C | 22/0.14 | 336.3 | 15.5 |
| 0.75*11C | 49/0.14 | 196.4 | 10.7 | 1.0*4C | 35/0.19 | 91.36 | 7.8108 | 2 | 0.5*2C | 33/0.14 | 77.6 | 8.7 |
| 0.75*12C | 49/0.14 | 204.6 | 10.7 | 1.0*5C | 35/0.19 | 108.56 | 8.44 | 3 | 0.5*2C | 33/0.14 | 101.9 | 9.4 |
| 1.0*2C | 35/0.19 | 64.3 | 6.2 | 1.0*6C | 35/0.19 | 130.38 | 9.3 | 4 | 0.5*2C | 33/0.14 | 124.3 | 10.3 |
| 1.0*3C | 35/0.19 | 77.5 | 6.5 | 1.0*7C | 35/0.19 | 144.33 | 9.3 | 5 | 0.5*2C | 33/0.14 | 152.2 | 11.3 |
| 1.0*4C | 35/0.19 | 94 | 7.1 | 1.0*8C | 35/0.19 | 162.01 | 9.96 | 6 | 0.5*2C | 33/0.14 | 181.3 | 12.5 |
| 1.0*5C | 35/0.19 | 114.9 | 7.9 | 1.0*9C | 35/0.19 | 186.2 | 11.04 | 7 | 0.5*2C | 33/0.14 | 198.5 | 12.5 |
| 1.0*6C | 35/0.19 | 132.8 | 8.6 | 1.0*10C | 35/0.19 | 210.49 | 12 | 8 | 0.5*2C | 33/0.14 | 228.5 | 13.6 |
| 1.0*7C | 35/0.19 | 146.7 | 8.6 | 1.0*11C | 35/0.19 | 226.68 | 12.3388 | 9 | 0.5*2C | 33/0.14 | 262 | 15 |
| 1.0*8C | 35/0.19 | 169 | 9.5 | 1.0*12C | 35/0.19 | 240.64 | 12.3388 | 10 | 0.5*2C | 33/0.14 | 286.5 | 15.9 |
| 1.0*9C | 35/0.19 | 194.9 | 10.5 | 1.5*2C | 53/0.19 | 84.9 | 8.5 | 2 | 0.75*2C | 49/0.14 | 97.8 | 9.7 |
| 1.0*10C | 35/0.19 | 217.1 | 11.2 | 1.5*3C | 53/0.19 | 114.7 | 9.2 | 3 | 0.75*2C | 49/0.14 | 123.8 | 10.2 |
| 1.0*11C | 35/0.19 | 235.4 | 11.5 | 1.5*4C | 53/0.19 | 142 | 9.9 | 4 | 0.75*2C | 49/0.14 | 157.3 | 11.3 |
| 1.0*12C | 35/0.19 | 245.8 | 11.5 | 1.5*5C | 53/0.19 | 175 | 11 | 5 | 0.75*2C | 49/0.14 | 192.4 | 12.5 |
| 1.5*2C | 53/0.19 | 103.2 | 8 | 1.5*6C | 53/0.19 | 209.2 | 12.1 | 6 | 0.75*2C | 49/0.14 | 228.9 | 13.7 |
| 1.5*3C | 53/0.19 | 124.2 | 8.5 | 1.5*7C | 53/0.19 | 232.2 | 12.1 | 7 | 0.75*2C | 49/0.14 | 251.7 | 13.7 |
| 1.5*4C | 53/0.19 | 155.3 | 9.4 | 1.5*8C | 53/0.19 | 268 | 13.3 | 8 | 0.75*2C | 49/0.14 | 289.2 | 14.9 |
| 1.5*5C | 53/0.19 | 183.6 | 10.3 | 1.5*9C | 53/0.19 | 306.4 | 14.7 | 9 | 0.75*2C | 49/0.14 | 330.7 | 16.5 |
| 1.5*6C | 53/0.19 | 217.9 | 11.4 | 1.5*10C | 53/0.19 | 336.1 | 15.6 | 10 | 0.75*2C | 49/0.14 | 362.1 | 17.5 |
| 1.5*7C | 53/0.19 | 240.9 | 11.4 | 1.5*11C | 53/0.19 | 370.3 | 16.3 | 2 | 1.0*2C | 35/0.19 | 118.43 | 10.6 |
| 1.5*8C | 53/0.19 | 276 | 12.5 | 1.5*12C | 53/0.19 | 393.2 | 16.3 | 3 | 1.0*2C | 35/0.19 | 150.7 | 11.1 |
| 1.5*9C | 53/0.19 | 317.1 | 13.9 | | | | | 4 | 1.0*2C | 35/0.19 | 191.45 | 12.3 |
| 1.5*10C | 53/0.19 | 361.4 | 15 | | | | | 5 | 1.0*2C | 35/0.19 | 233.95 | 13.6 |
| 1.5*11C | 53/0.19 | 392 | 15.5 | | | | | 6 | 1.0*2C | 35/0.19 | 277.98 | 14.9 |
| 1.5*12C | 53/0.19 | 408.4 | 15.5 | | | | | 7 | 1.0*2C | 35/0.19 | 306.46 | 14.9 |
| | | | | | | | | 8 | 1.0*2C | 35/0.19 | 343.91 | 16 |
| | | | | | | | | 9 | 1.0*2C | 35/0.19 | 401.34 | 17.9 |
| | | | | | | | | 10 | 1.0*2C | 35/0.19 | 449.03 | 19.2 |
| | | | | | | | | 2 | 1.5*2C | 53/0.19 | 185.9 | 13.7 |
| | | | | | | | | 3 | 1.5*2C | 53/0.19 | 238.6 | 14.5 |
| | | | | | | | | 4 | 1.5*2C | 53/0.19 | 303 | 16 |
| | | | | | | | | 5 | 1.5*2C | 53/0.19 | 378.4 | 17.9 |
| | | | | | | | | 6 | 1.5*2C | 53/0.19 | 448.2 | 19.6 |
| | | | | | | | | 7 | 1.5*2C | 53/0.19 | 495 | 19.6 |
| | | | | | | | | 8 | 1.5*2C | 53/0.19 | 566.4 | 21.3 |
| | | | | | | | | 9 | 1.5*2C | 53/0.19 | 655.9 | 23.8 |
| | | | | | | | | 10 | 1.5*2C | 53/0.19 | 731.4 | 25.5 |

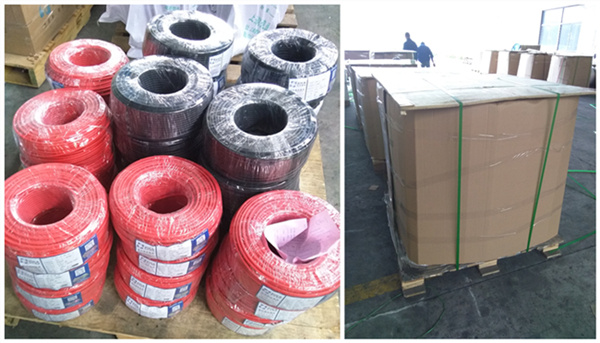

Packaging & Delivery| Packaging Details: | 1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll. |
| | 2. According to customer requirement. |
| Shipping Details: | 7-15 days after payment. |
Company Information
Shanghai Jiukai Wire & Cable Co., Ltd is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 ".Certification
Why Choose UsWe are a professional wire and cable manufacturerQuality control: Our defective products rate is 0.01%Economically priced, exquisitely madeAdequate supply capacity, punctual delivery timeBest of sales service are providedF & QQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Related Products
1. solar cable
2. solar pv connector
3. elevator cable
4. electrical wire
Contuct Us
If you have another question about LiYY/LiYCY flexible control power cable data transfer cable, pls feel free to contact us as below:
| Prod Model: |
control cable liycy |
| Name: |
Liyy/Liycy Flexible Control Power Cable Data Trans |
| Core Stardand: |
DIN VDE 0295 Cl5 & IEC60228 |
| Insulation Stardand: |
PVC, Meet DIN VDE 0281 |
| Shielding Material: |
Tinned Copper |
| Nominal Voltage: |
350V-500V |
| Temperature Range: |
-40 to +80 Degree |
| Color: |
DIN 47100 |
| Life Time: |
15 Years |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
Jiukai |
