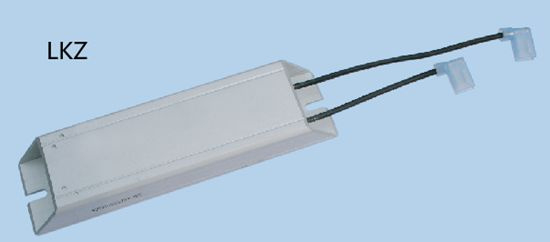

LKZ Type Alluminum Shell Wire Wound Resistor
1. Resistance Tolerance:
± 5%, ± 10%
2. Rated Power:
65-190W
3. Resistor Range:
1.0Ω -2.0kΩ
4. Packing:
We can pack your goods in export-worthy carton, on pallet.
5. Shipping:
(1)We will ship the items within 3 working days after the payment confirmed.
(2)We can ship to you by UPS/DHL/TNT/EMS/FedEx.
(3)We are not responsible for any accidents, delays or other issues caused by the forwarder.
(4)Any import fees or charges are on the buyer's account.
Production
name |
Dynamic Braking Resistor,Aluminum Housed Wirewound Braking Resistor,Brake Resistor,Wirewound Rheostat |
Power rating |
40W-3000W |
Resistance value |
0.01Ω-100KΩ |
Resistance tolerance |
0.1%, 0.5%, 1%, 5%, 10% |
Features
|
1.High insulating capacity,encapsulation by non-flame inorganic
material,good performance in vibration humidity and heat and good
dissipation.
2.Small size,high power load
3.Widely used in power supply,transducer, elevator,arena audio and
Lifting,Braking,Ship ,Load equipment, high requirement equipment
industry,ect.
4.Multi connection form will be easily to fix. |
Common
specification |
60W50Ω,80W20Ω,80W60Ω,80W100Ω,100W20Ω,100W100Ω,120W68Ω,
150W20Ω,200W20Ω,200W200Ω,300W20Ω,300W150Ω,300W200Ω,400W150Ω,
400W20Ω,500W100Ω,500W20Ω,800W75Ω,1040W50Ω,1040W75Ω ect. |
Remark |
Specifications can be customized. |
Performance
|
Test item |
Test condition |
performance |
Temperature
coefficient |
JIS-C-5202 5-2 |
±250PPM/Max |
Power rating
load |
JIS-C-5202 5-4 |
R≤±(1%+0.1Ω)Surface temperature ≤350 |
Short-term
overload |
JIS-C-5202 5-5
1000% rated power 5s |
Free or appearance or
structural irregularity
R≤±(2%+0.1Ω) |
Insulation
resistance |
JIS-C-5202 5-6
1000V DC |
100 MΩ Min |
Dielectric
withstanding
voltage |
JIS-C-5202 5-7
1500V DC 60s |
Free or appearance or
structural irregularity
R≤±(0.1%+0.05Ω) |
Vibration |
JIS-C-5202 6-3
1.5mm,10-50-10Hz/min |
Free or appearance or
structural irregularity
R≤±(1%+0.05Ω) |
Thermal
shock |
JIS-C-5202 7-3
Room temp 30 min ON-55
15 min OFF |
Resistor free of structural irregularity crack of silicon cement surface
R≤±(2%+0.1Ω) |
humidity |
JIS-C-5202 7-5
40 90%RH 240H |
Free or appearance or
structural irregularity
R≤±(3%+0.1Ω) |
Load life |
JIS-C-5202 7-10
90Min ON-30Min OFF 500H |
Free or appearance or
structural irregularity
Discoloration of marking
R≤±(3%+0.1Ω) |
Cooperation partner |
JOHNSON ELECTRONIC,KOA,FOXCONN and so on. |
NOTE |
1. For customer specifications,please contact us to discuss the details.
2. Different power rating owning multi weight ,dimension and packing .
3. More details, please contact us. |
