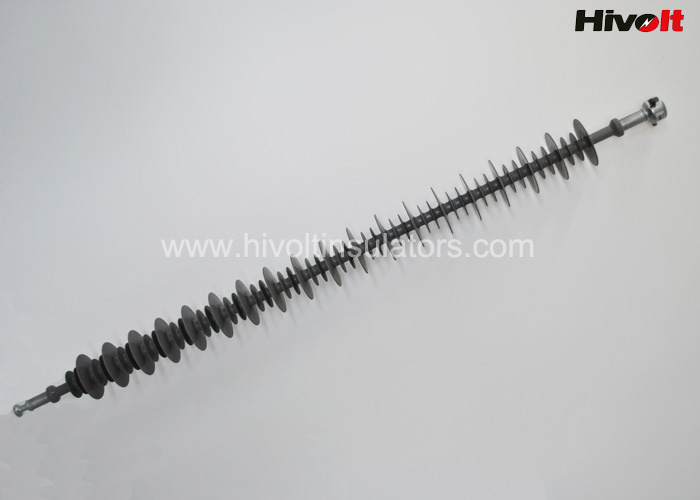

We produce long rod silicone rubber insulator with high pressure rubber injection shapping mehtod .
the insulator have excellent both mechanical & electrical performance . the silicone rubber we use are HTV type (high temperature vulcanization).
the both end metal fittings material are forged steel . fiber glass rod material is ECR FRP type . all those material guarantee our product in high quality level .
1) we offer high quality dead end composite insulators and long rod insulators according to ANSI standard and IEC standard .
2) the shed colour can be light gray or red .

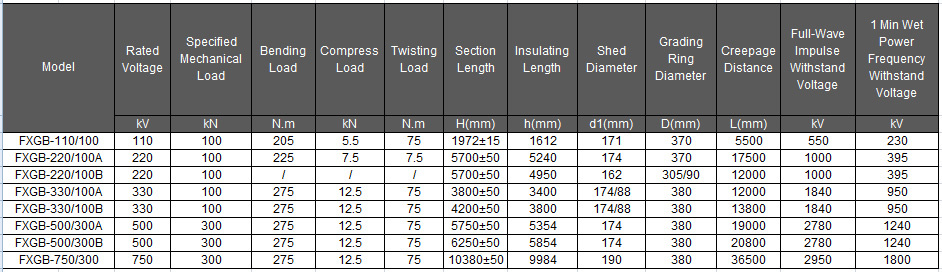

3) The long rod insulators can be made up to 1000 kV 500kN . and the related goods type tested in independant Lab. the high quality will make you satisfied .
HIVOLT long rod silicone rubber insulators have below characters :
A The metal fittings use high density forged steel , every piece of fitting are tested by magnetic power test .to guarantee each unit fittings have uniform structure and perfect performance
The fittings surface are hot-dip galvanized meet related international standard requirement
zinc thickness are more than 85um. according to IEC standard and ASTM153 .
B Long rod insulator shed are made with material of high temperautre silicone rubber . the rubber component are specially designed by ourself . it can provide high level both electrical & mechanical performance .
C insulator core are made of reinforced ERC FRP high density fiber glass .
D the silicone rubber lond rod insulator are ball & socket connection according to IEC standard.
E single insulator will be package with 1 carton drum .
F the insulator shaping method is high pressure injection .
the long rod insulator are suitable for tension string or suspension string in transmission lines . corona rings will be used together with long rod insulators if necessary . the corona ring can even electrical field . increase flashover voltage , protect transmission lines.
Good Advantage of HIVOLT insulators :
we offer 3 years quality guarantee period , good quality deserve your trust !
The insulator have a very good self-cleaning performance . it is easy for maintenance .
The insulator has big / small sheds profilr , which specially designed for heavy pollution zone or coastal area .
We can design insulators based on customer's requirement or special technical specifications.
the fiber glass core material is ECR FRP rod , it is special used for high voltage product instead of normal type.
Dalian Hivolt Power System Co., Ltd. ( the former Hivolt Insulators Co., Ltd. ) is a reputable insulator manufacturer. It was set up in year 1990 with product range of porcelain insulators, composite insulators, and relevant metal fittings for transmission & distribution lines.
We look the quality as our company Life, and keep improving products quality. We strictly control the whole manufacturing process according to ISO 9001: 2008 edition, and focus on each quality details from raw material to insulators performance test. The powerful test facilities can make sure that each product under control.
We can supply insulators according to IEC standards, ANSI standards, BS standards or customer specifications. Porcelain glaze can be brown, light gray, white or blue. Composite insulators' shed colour can be light grey or red. In the mean time, we also supply high quality tonghened glass insulators for domestic market and overseas market.
Dalian Hivolt Power System Co., Ltd. is a reputable supplier, we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price. We promise if any insulator from our company has quality defect, we will replace them at free charge in 12 months after receipt. We hope to set up a long term cooperation with you and enjoy the course together.
