Long Standby Mini Portable GPS Tracker for Person (EV-07)
Price: |
US $ 42-47/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Features:1. Unique design, combination of style and technology.
2. Supports A-GPS for accelerated positioning.
3. Supports GPS and Cellular tracking.
4. Two way voice communication.
5. Fall detection via 3D G-sensor
6. Firmware upgrade over the air.
7. Built-in 8MB flash memory.
8. GPRS blind area data re-upload function.

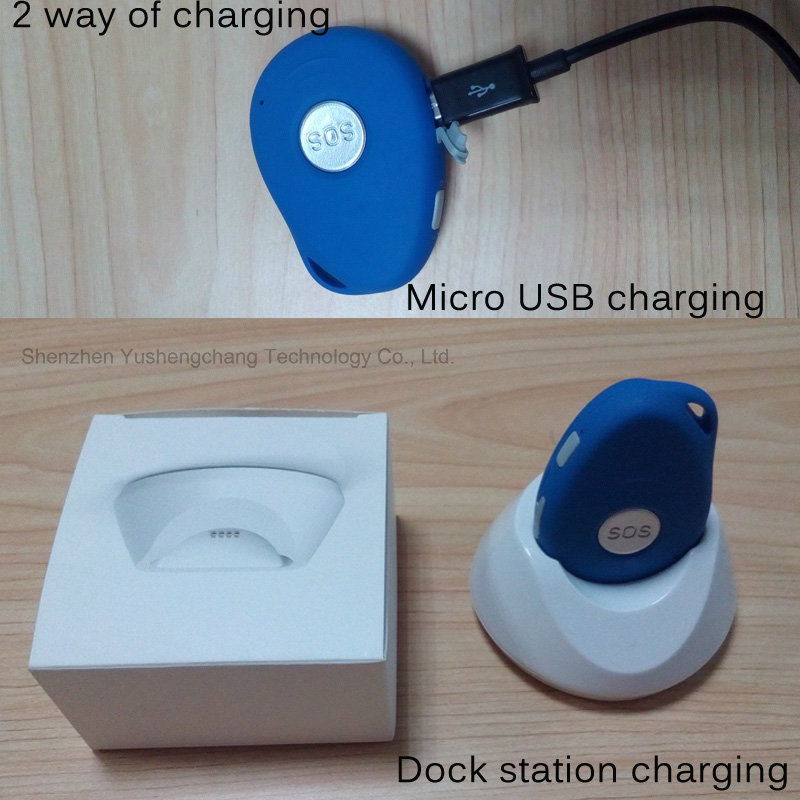

9.Device can be charged by micro USBFunctions:Real time tracking by GPS satellite.
Real time tracking by CellLocate, location based on the cellular network, users are able to track in shielded environments such as indoors and enclosed park houses.
AGPS, TTFF in 30 seconds (10 seconds for GPRS included).
Fall detection for children and elderly, patient.
With rechargeable 900mah Lithium battery. Standby time: 30days.
Built-in 3D G-sensor for motion, shock alarm and power management.
Voice monitoring
Two way Voice communication.(high quality sounds and hands free volume sound)
Data logging: 60000locations.
GPRS blind area data re-upload function
Firmware upgrade over the air.
Reply map link of current position.
SOS emergency button.
Geo-fencing alarm, Over speed alarm.
GPS signal lost and recovery alert.
Movement alarm.
Micro USB charger,Micro SIM Card
U-blox GPS technology.
Real time tracking on a map from a computer or on the go with free mobile APP.
Certified with CE, Rohs and SAR Certificates. Hardware Specification:Content | Specs. |
Mainframe Dimension | 61mm*43mm*16mm |
Weight | 35g |
GSM Frequencies | 900/1800mhz/850/1900Mhz |
GPS chip | U-blox 7 (Support AGPS) |
GPS sensitivity | Cold start: -148dBm Hot start: -162dBm |
GPS accuracy | <2.5m |
Time to First Fix | Cold start 32s, Warm start 11s, Hot start 1s |
Charging Voltage | 5V DC |
Battery | Chargeable 3.7V 900mAh |
Standby Current | ≤2mAh |
Storage Temperature | -40°C to +85°C |
Operation Temperature | -20°C to +80°C |
Humidity | 5%-95% non-condensing |
New package:
Tracking on website (below is our platform), please kindly note the server is open for your own server. we can offer the server protocol for your engineer configuration with your own server , so it's ok for your server to receive the datas. FAQ*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How long do you offer for your product warranty?
Our product warranty is 12 months, except artificially damaged or improper operation;
Any questions or comments, please kindly feel free to contact me!Thank you!Connie Yan
Mobile: +86 13267237809
Prod Model: |
EV-07 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Battery: |
Chargeable 3.7V 900mAh |
Work Time: |
3~7 Days |
Memory: |
Built in 8MB |
GPS Sensitivity: |
Cold Start: -148dBm Hot Start: -162dBm |
Power Saving Work Time: |
10 Days |
Size: |
61*44*16mm |
Standby Time: |
30 Days |
Voice Monitoring: |
Support |
Geo-Fencing Alarm: |
Yes |
Sensor: |
3G Accelerating Sensor, Vibration Sensor |
