low cost SS liquid marine level switch

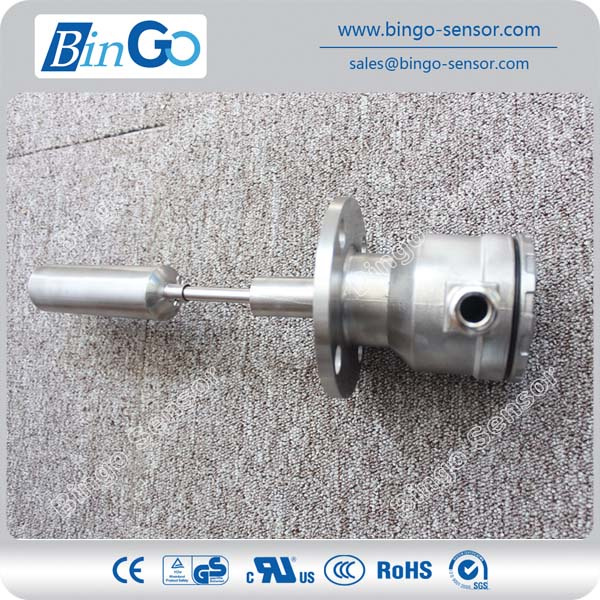

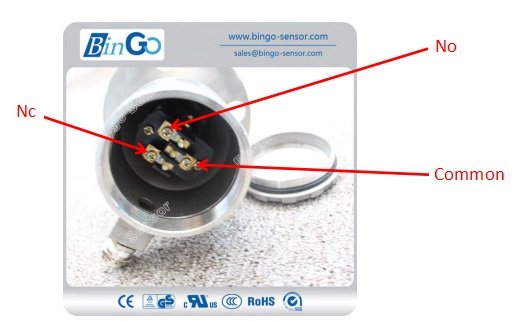

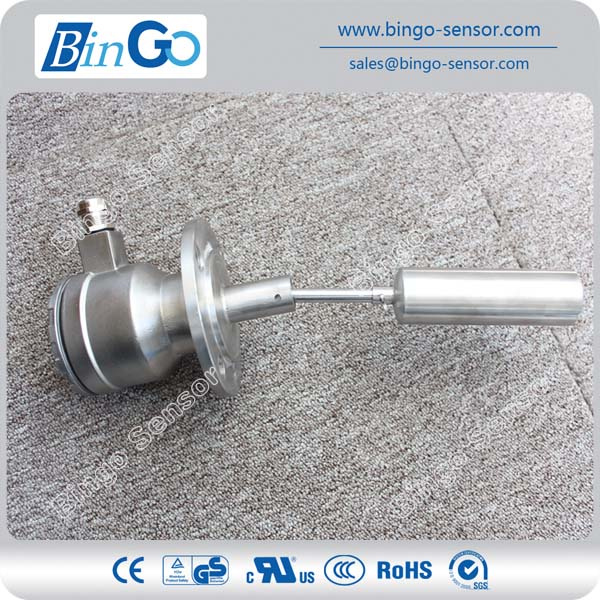

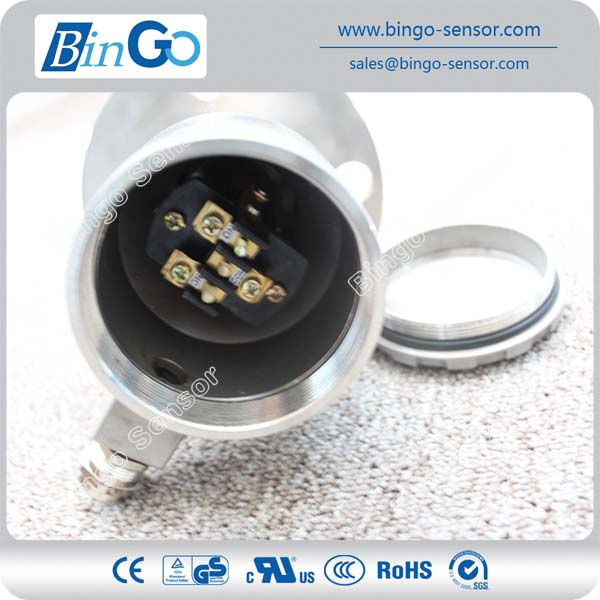

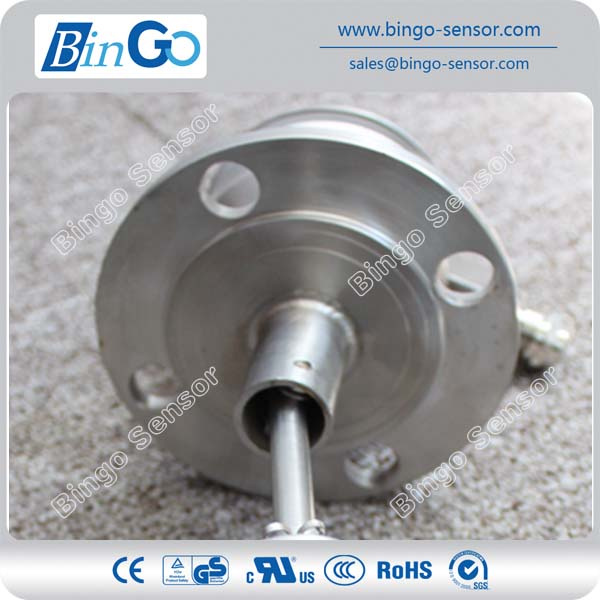

The UQK series float liquid level controller is used for the level control of the vessel on ship. When the liquid level is switching from the upper to lower , the controller contact will send out the signal of the on or off switch. The products divide into two categories, including common type and explosion-proof type. The float liquid level controller is not suitable for corrosion of brass, stainless steel and other magnetic materials.
Frequently Asked Questions
1.Action principle:
2. Applications:
Drinking fountains, water heaters, solar energy, air conditioners, humidifiers, water, bathroom equipment, vending machines, tanks, chemical liquid level control, automotive, industrial equipment, agricultural equipment, household appliances widespread application prospect.
3. How to choose a suitable level switch?
Users should select suitable float according to the working temp., pressure,gravity, |
| acid and alkali of the tested liquid. |
| Temperature: |
| PVC maximum temperature is 80°C, PP maximum temperature is 80°C, |
| PVDF maximum temperature is 150°C, |
| SUS304/316L maximum temperature is 200°C. |
| Pressure: |
| plastic float maximum pressure resistance 5kg/cm2, |
| SUS304/316L maximum pressure resistance 40kg/cm2. |
| Viscosity: |
| For viscosity liquid, it is better to choose float with big diameter and small |
| gravity to overcome the surface tension of liquid. |
| Acid and alkali liquid: |
| please choose PP or PVDF, if temp. is higher than 80°C, PVDF ONLY |
| Alcohol and oil etc. liquid: |
| It is suggested to use stainless SUS. |
| Please select food grade SUS316L in food field. |
| Gravity: float's gravity S.G. should be less than tested liquid. |
4. How to pay and how to delivery?
PayPal, WESTERN UNION, Maestro, MoneyGram, VISA, UPS, FedEx, TNT, DHL, EMS
5.What customers say
Thank you so much for your support so far, we had received the shipment. We really appreciate your service and definately will contact for orders in future.
----- Saif. Imtiyaz
The cargo has arrived at our warehouse. The product works well with our equipment.. We are happy about the quality. Pleased cooperation!
------Sergey Bystrov
Fast delivery! Patient service!
-------Ricardo Castillo
Our service:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
For an example:
Show room:
About us:
Founded in 2009, our company is committed to supplying a full range of pressure switches / transmitters / sensors, level switches / transmitters/ meters, flow switches / transmitters/ meters.
Our company is located in the "Capital of Electric Products", Liushi, Wenzhou. Besides, we set branch in Shanghai for automation control business in 2013.
Shanghai Office
ADD: Rm. 408, #1 Building, Shanghai Zhihui Science Park, No.11, lane 911, Hulan Road, Baoshan, Shanghai
Zipcode: 201900
Liushi Office
ADD: ROOM A111, JINHAO BUILDING,No.1-8 LIUWENG ROAD,LIUSHI ,YUEQING,WENZHOU
Zipcode: 325604
Yiwu Office
ADD: No. 146-3, Chouzhou North Road, Yiwu, Jinhua
Taizhou Office
ADD: No. 7, Xianqian Road, Yuhuan, Taizhou
More information, you can browse our website: www.bingo-sensor.com
If you need low cost SS liquid level switch , please feel free to contact us!
